ASUS PRIME 750W 80 Plus Gold Fully Modular Power Supply - White

ASUS PRIME 750W 80 Plus Gold Fully Modular Power Supply - White

Prime Performance

With 80+ Gold certification, dual ball fan bearings, and an 8-year warranty, the ASUS Prime series PSU brings efficient and durable power delivery to high-performance workstations, all-round PCs, and gaming rigs.

Dual Ball Fan Bearings

Dual ball bearings boast a remarkable lifespan of 80,000 hours, lasting twice as long as sleeve bearings and exceeding even fluid dynamic bearings. Ensuring long-lasting, reliable cooling with minimal noise for ASUS Prime Gold series.

80 Plus Gold Certification

The ASUS Prime 750W Gold PSU features efficient, low-ESR capacitors to ensure efficient operation — affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.

ATX 3.1 Compatible

The latest power specification updates have landed. ATX 3.1 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ASUS Prime 750W Gold steps ahead of the curve by being fully compliant. A 16-pin PCIe cable that is compatible with PCIe Gen 5.1 graphics cards is bundled with the PSU, bringing large-scale capabilities.

Choose Your Style

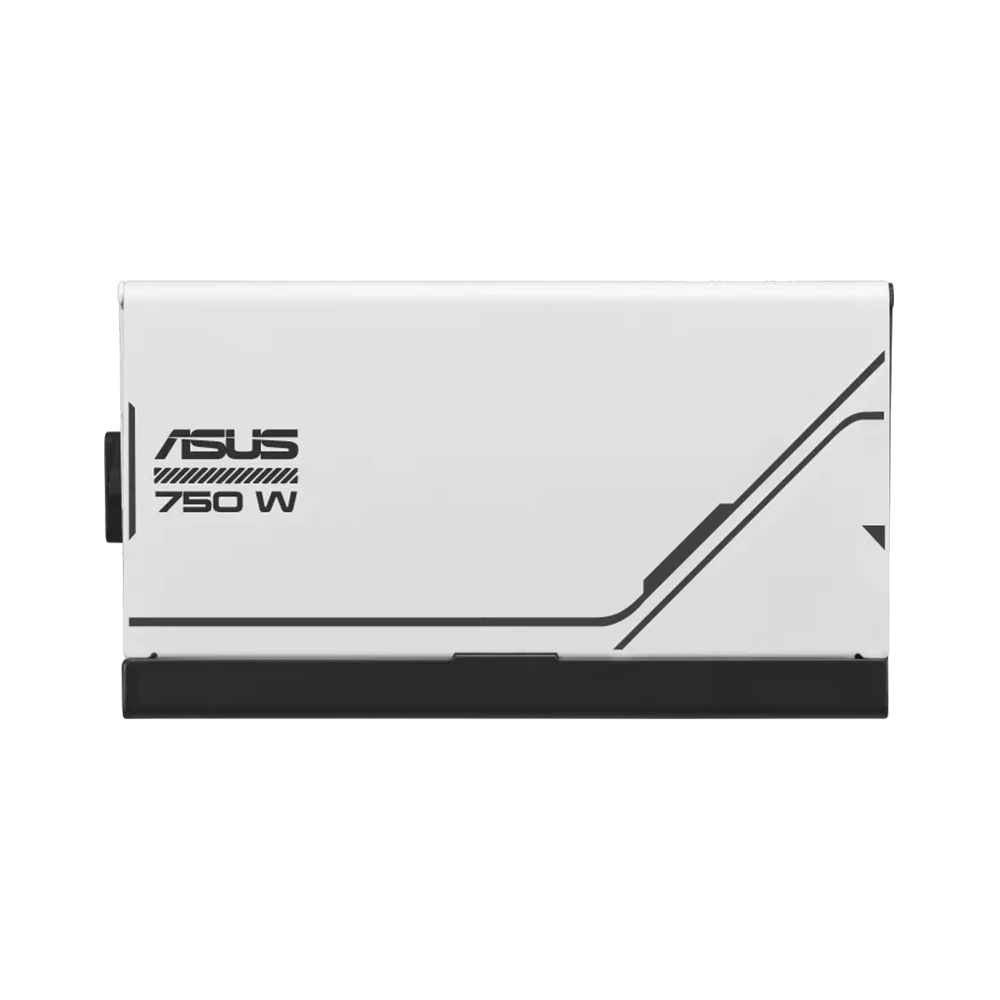

Two sides of the housing are painted white, and two sides are painted black, allowing you to orient the PSU to match your preferred build theme.

Specifications:-

• Intel Form Factor : ATX12V

• PFC Type : Active PFC

• ATX Standard : ATX 3.1

• Dimensions : 150 x 150 x 86 mm

• Efficiency : 80Plus Gold

• MTBF : >120,000 hrs @ 25°C

• Protection Features : OPP/OVP/UVP/SCP/OCP/OTP

• Hazardous Materials : ROHS

• AC Input Range : 100-240Vac

• DC Output Voltage : +3.3V +5V +12V -12V +5Vsb

• Maximum Load : 20A20A62A 0.3A 2.5A

• Combined Load : 110W 110W 744W 3.6W 12.5W

• Total Output : 750W

• Cable Connectors

• MB 24/20-pin x 1

• CPU 4+4-pin x 2

• PCI-E 16-pin x 1 (both PSU & connector side)

• PCI-E 8-pin x 3

• SATA x 5

• PERIPHERAL x 3

• Package Contents

• Power Cord x 1

• Motherboard Power Cable x 1 (610mm)

• CPU Cable x 2 (650mm)

• PCI-E Gen 5.1 16-pin Cable x 1 (675mm)

• PCI-E (16-pin to 8-pin-8-pin) Cable x1 (675mm)

• PCI-E 1-to-1 Cable x 1 (675mm)

• SATA 1-to-2 Cable x 1 (400+120mm)

• SATA 1-to-3 Cable x 1 (400+120+120mm)

• Peripheral 1-to-3 Cable x 1 (400+150+150mm)

• User Manual x 1

• Weight : 1.466 kg (single PSU)

• 0dB Technology : No

• 0dB Fan Button : No, this product is without 0dB technology.
