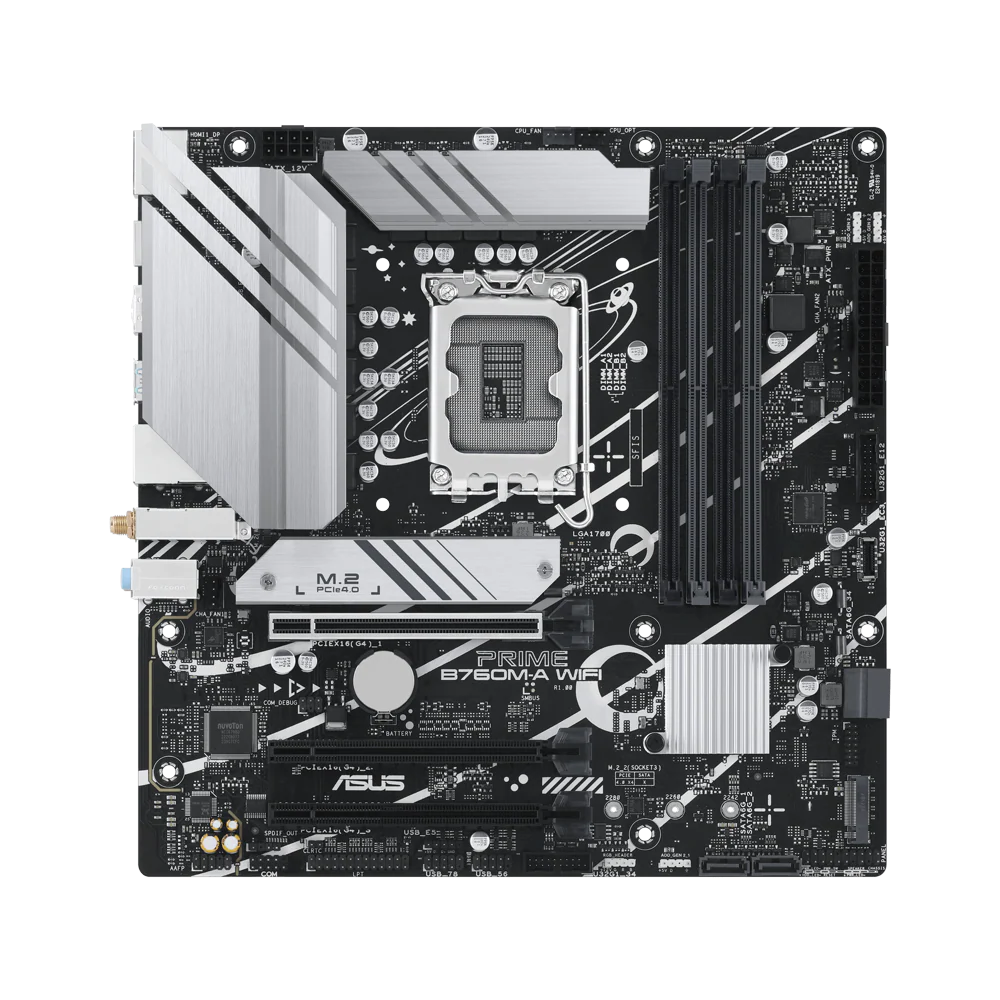

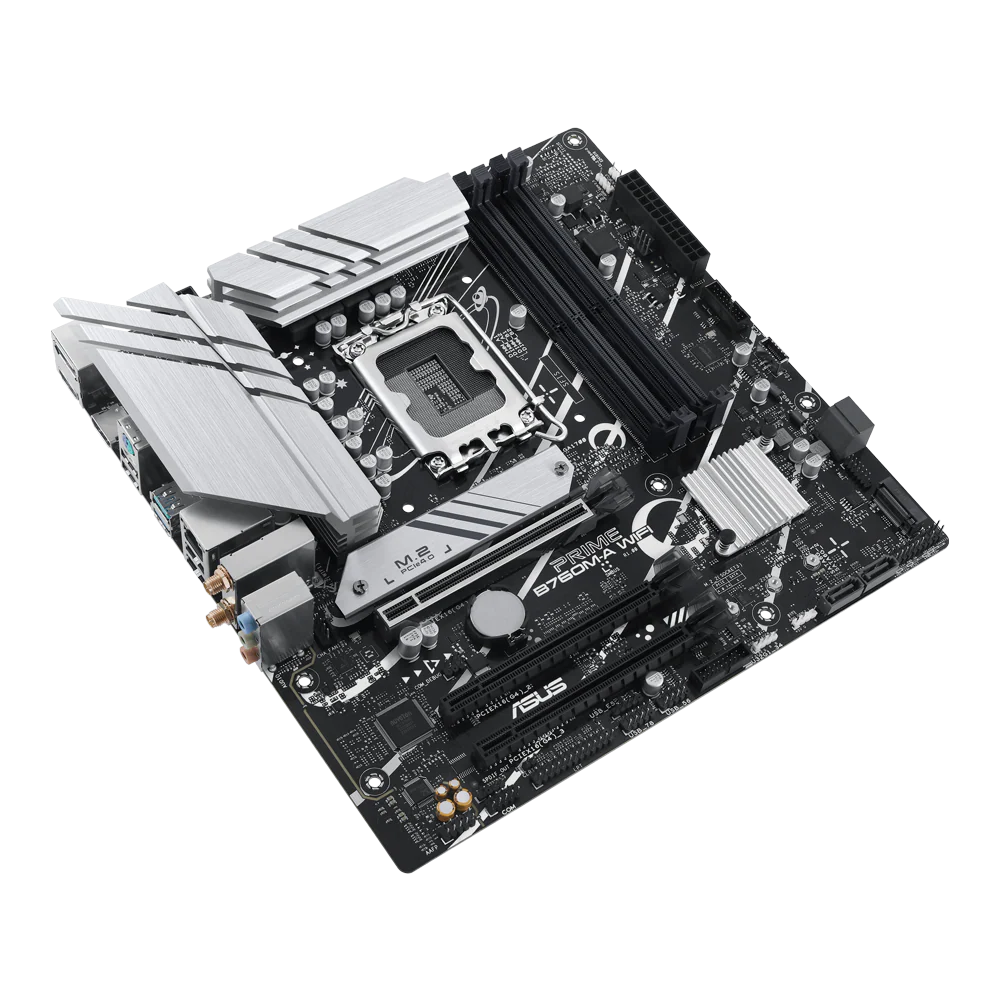

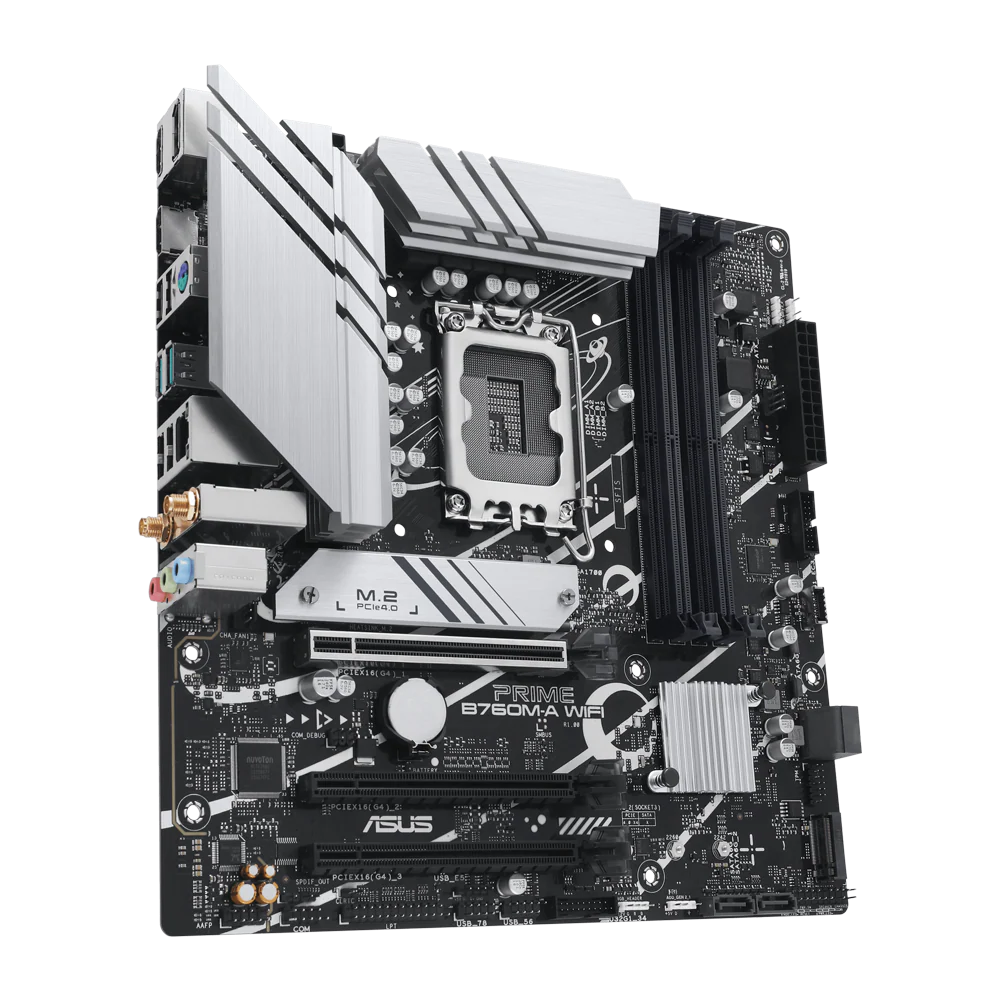

ASUS PRIME B760M-A WIFI DDR5 Motherboard

Key Features:

• Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications

• Intel^® LGA 1700 Socket: Ready for 14^th, 13^th and 12^th Gen Intel^® processors

• Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C^®

• Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+

• Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II

• Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware

Intel® B760 (LGA 1700) mATX mortheboard with PCIe 4.0, DDR5, two M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, Dual HDMI™, SATA 6 Gbps, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®, Aura Sync.

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 14th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-A WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand.

FLEXIBILITY

Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

Intelligent Control

ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

All-Around Energy Efficiency
The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

COOLING

PRIME B760 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

M.2 Heatsink

M.2 heatsink wards off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws, and these removable captive screws help reduce risk of drops or loss during heatsink removal.

PERFORMANCE

The PRIME B760 series are built to handle the high core counts and bandwidth demands of 14th, 13th and 12th Gen Intel® Processors. ASUS B760 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.

Robust Power Design

Stable power is essential to extract every last bit of performance out of Intel® processors. The PRIME B760M-A WIFI is geared to cater to the demands of these high-core-count CPUs.

ProCool Connector
Proprietary connectors augment the motherboard's link to the PSU with 8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.

Specifications

Model

• PRIME B760M-A WIFI

CPU

• Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*

• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

• ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

• Intel® B760 Chipset

Memory

• 4 x DIMM slots, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory*

• Dual Channel Memory Architecture

• Supports Intel® Extreme Memory Profile (XMP)

• OptiMem II

• * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

• 1 x DisplayPort**

• 2 x HDMITM ports***

• * Graphics specifications may vary between CPU types.

• ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.

• *** Supports 4K@60Hz as specified in HDMITM 2.1.

Expansion Slots

• Intel® CoreTM Processors (14th & 13th & 12th Gen)

• 1 x PCIe 4.0 x16 slot

• Intel® B760 Chipset

• 1 x PCIe 4.0 x16 slot (supports x4 mode)

• 1 x PCIe 4.0 x16 slot (supports x1 mode)

• Note: To ensure compatibility of the device installed, supported peripherals.

Storage

• Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports*

• Intel® CoreTM Processors (14th & 13th & 12th Gen)

• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

• Intel® B760 Chipset

• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

• 4 x SATA 6Gb/s ports

• * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

Ethernet

• 1 x Realtek 2.5Gb Ethernet

Wireless & Bluetooth

• Wi-Fi 6

• 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

• Supports 2.4/5GHz frequency band

• Bluetooth v5.2

• * The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

• Rear USB (Total 6 ports)

• 2 x USB 3.2 Gen 2 ports (2 x Type-A )

• 4 x USB 2.0 ports (4 x Type-A)

• Front USB (Total 10 ports)

• 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports

• 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

• 1 x USB 2.0 header supports 1 additional USB 2.0 port

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*

• - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

• - Supports up to 24-Bit/192 kHz playback

• Audio Features

• - Audio Shielding

• - Premium audio capacitors

• - Dedicated audio PCB layers

• * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

• 2 x USB 3.2 Gen 2 ports (2 x Type-A )

• 4 x USB 2.0 ports (4 x Type-A)

• 1 x DisplayPort

• 2 x HDMITM ports

• 1 x Wi-Fi Module

• 1 x Realtek 2.5Gb Ethernet port

• 3 x Audio jacks

• 1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors

• Fan and Cooling related

• 1 x 4-pin CPU Fan header

• 1 x 4-pin CPU OPT Fan header

• 2 x 4-pin Chassis Fan headers

• Power related

• 1 x 24-pin Main Power connector

• 1 x 8-pin +12V Power connector

• Storage related

• 2 x M.2 slots (Key M)

• 4 x SATA 6Gb/s ports

• USB

• 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports

• 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

• 1 x USB 2.0 header supports 1 additional USB 2.0 port

• Miscellaneous

• 3 x Addressable Gen 2 headers

• 1 x Aura RGB header

• 1 x Clear CMOS header

• 1 x COM Port header

• 1 x Front Panel Audio header (AAFP)

• 1 x LPT header

• 1 x S/PDIF Out header

• 1 x SPI TPM header (14-1pin)

• 1 x 20-3 pin System Panel header with Chassis intrude function

Special Features

• ASUS 5X PROTECTION III

• - DIGI+ VRM

• - LANGuard

• - Overvoltage Protection

• - SafeSlot Core+

• - Stainless-Steel Back I/O

• ASUS Q-Design

• - Q-DIMM

• - Q-LED Core

• - Q-Slot

• ASUS Thermal Solution

• - M.2 heatsink

• - VRM heatsink design

• ASUS EZ DIY

• - ProCool

• Aura Sync

• - Aura RGB header

• - Addressable Gen 2 headers

Software Features

• ASUS Exclusive Software

• Armoury Crate

• - Aura Creator

• - Aura Sync

• - Fan Xpert 2+

• - Power Saving

• AI Suite 3

• - Digi+ VRM

• - PC Cleaner

• ASUS CPU-Z

• MyAsus

• Norton Deluxe (60 Days Free Trial)

• WinRAR

• UEFI BIOS

• ASUS EZ DIY

• - ASUS CrashFree BIOS 3

• - ASUS EZ Flash 3

• - ASUS UEFI BIOS EZ Mode

BIOS

• 128 Mb Flash ROM, UEFI AMI BIOS

Manageability

• WOL by PME, PXE

Accessories

• Cables

• 2 x SATA 6Gb/s cables

• Miscellaneous

• 1 x ASUS Wi-Fi moving antennas

• 1 x I/O Shield

• 1 x M.2 Rubber Package

• 1 x Screw package for M.2 SSD

• Documentation

• 1 x User guide

Operating System

• Windows® 11, Windows® 10 64-bit

Form Factor

• mATX Form Factor

• 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm)
