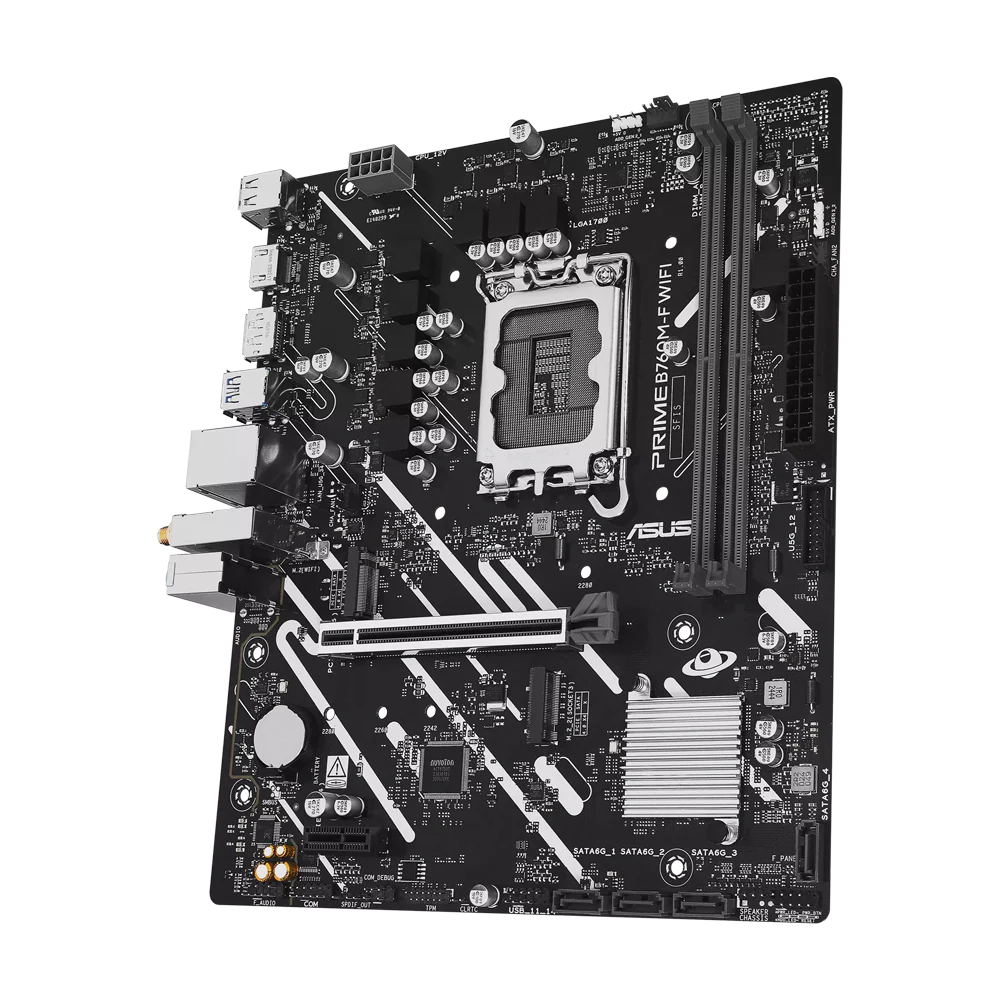

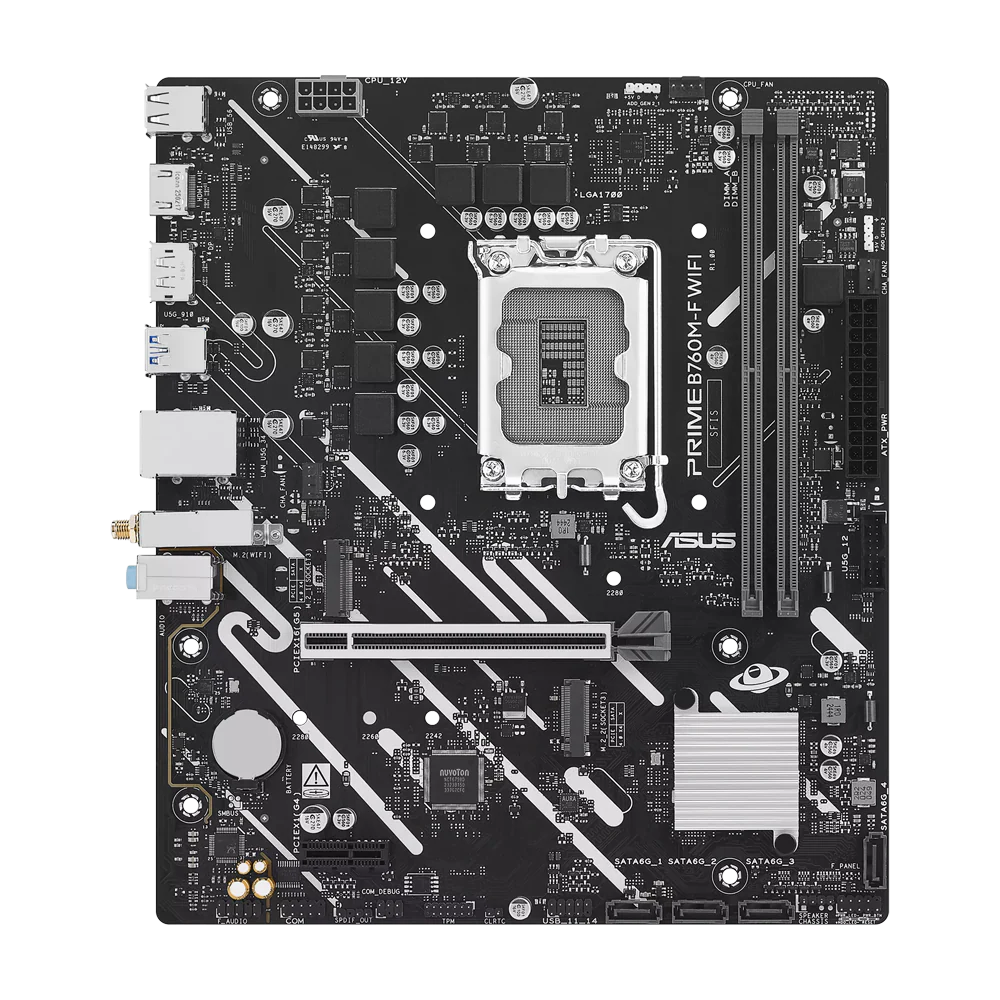

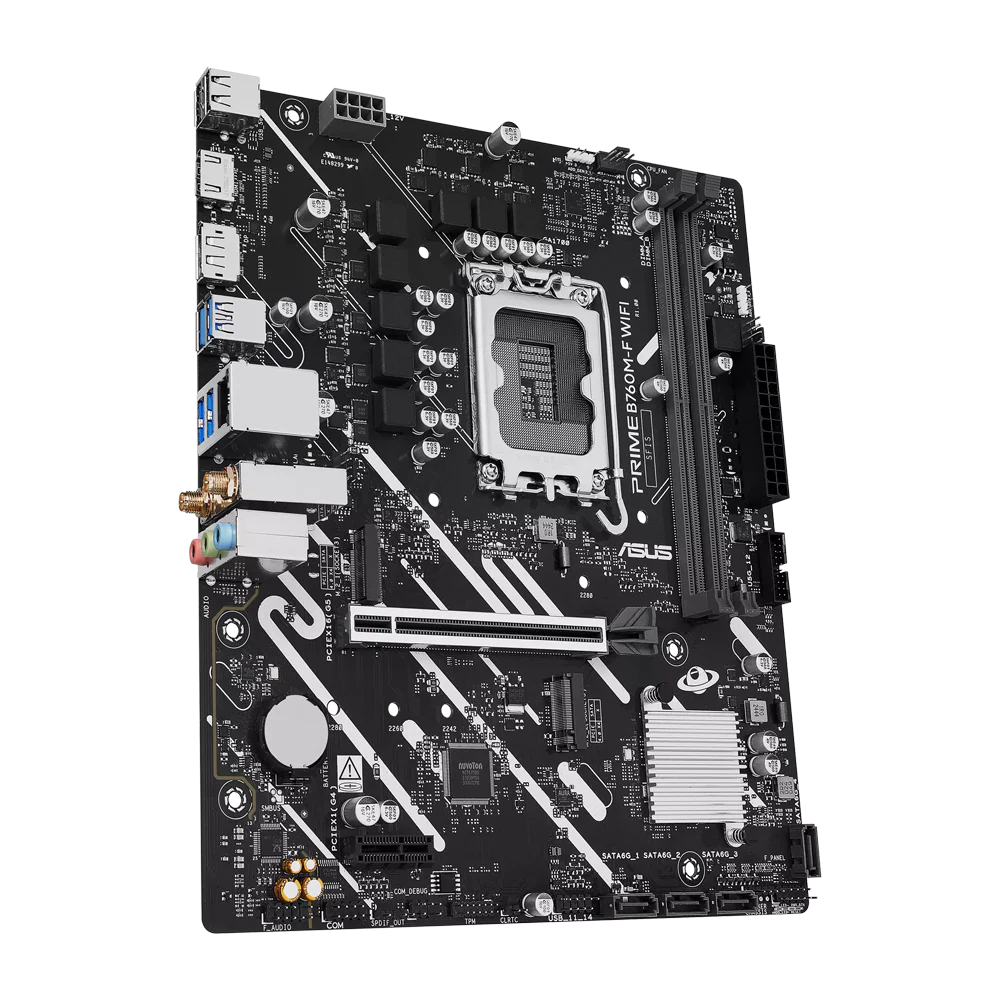

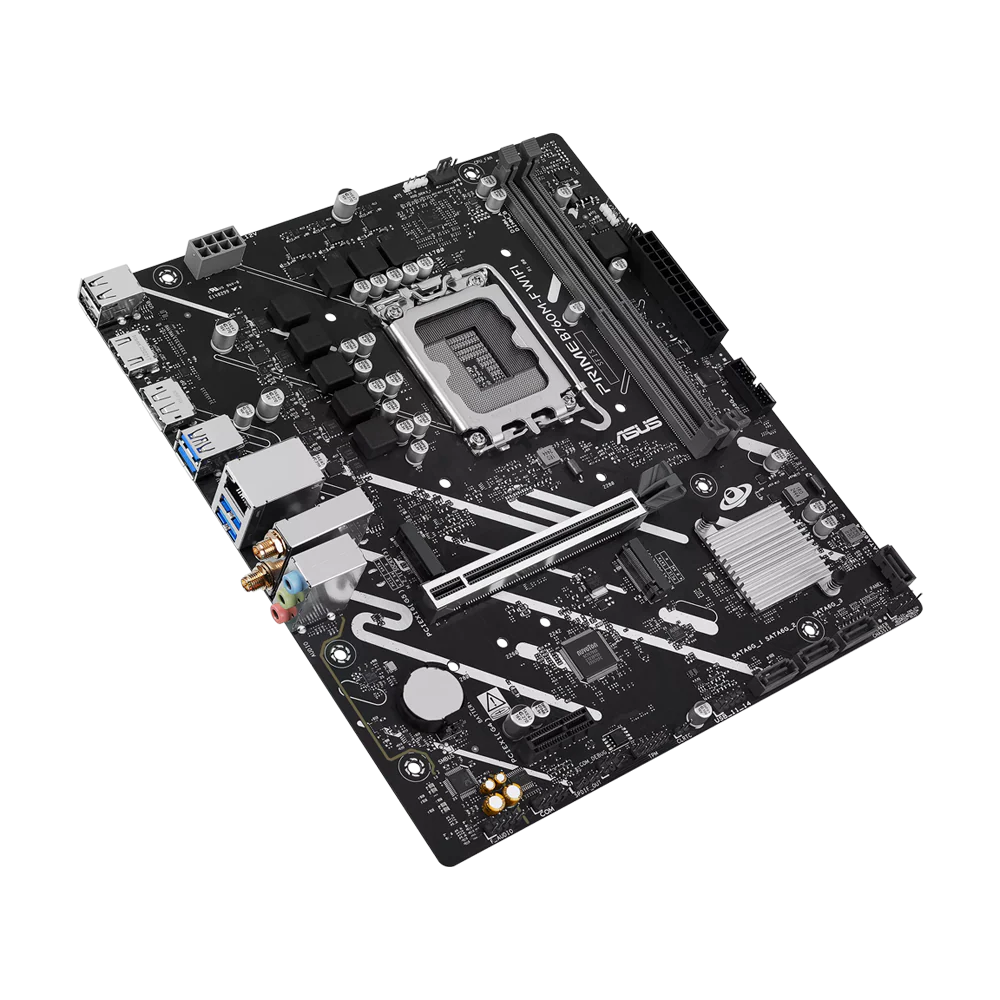

ASUS PRIME B760M-F WIFI DDR5 Motherboard - Black

Key Features:

• Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications

• Intel^® LGA 1700 Socket: Ready for 14^th, 13^th and 12^th Gen Intel^® processors

• Ultrafast Connectivity: PCIe 5.0, two PCIe 4.0 M.2 slots, Realtek 1Gb Ethernet and front USB 5Gbps support

• Comprehensive Cooling: PCH heatsink, hybrid fan headers and Fan Xpert 2+

• Aura Sync RGB Lighting: Onboard Addressable RGB Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardwares

• Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences

ASUS PRIME B760M-F WIFI, an Intel® B760 LGA 1700 micro-ATX motherboard with PCIe 5.0, two PCIe 4.0 M.2 slots, DDR5, WiFi 6, Realtek 1Gb Ethernet, DisplayPort, HDMI™, SATA 6 Gbps, front USB 5Gbps ports, Aura Sync.

FLEXIBILITY

Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

Intelligent Control

ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

Flexible Air-Cooling Controls
ASUS Fan Xpert 2+ software provides comprehensive control over fan. There’s an Extreme Quiet mode that reduces fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fan can also be controlled via the UEFI BIOS.

COOLING

PRIME B760 series are engineered with multiple onboard heatsink and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

Cooler by Design

PRIME B760 series features comprehensive cooling controls that are configurable via FAN Xpert 2+ software or via the UEFI BIOS.

Multiple Temperature Sources

Each header can dynamically reference three thermal sensors. FAN Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

PERFORMANCE

The PRIME B760 series are built to handle the high core counts and bandwidth demands of 14th & 13th Gen Intel® Core™ Processors. ASUS B760 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.

Robust Power Design

Stable power is essential to extract every last bit of performance out of Intel® processors. The PRIME B760M-F WIFI is geared to cater to the demands of these high-core-count CPUs.

ProCool Connector
Proprietary connectors augment the motherboard's link to the PSU with 8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.

Combined onboard features deliver elevated audio

Intelligent design and premium hardware create audio quality unlike anything you’ve ever experienced.
Audio Shielding

Audio shielding ensures precision analog/digital separation and greatly reduced multi-lateral interference.
Dedicated Audio PCB Layers

Separate layers for left and right tracks ensures both channels deliver consistent, equal quality.
Premium Audio Capacitors

Provides warm, natural, and immersive sound with exceptional clarity and fidelity.

Specifications

• Model : PRIME B760M-F WIFI

• CPU : Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*

• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

• Chipset

• Intel® B760 Chipset

• Memory

• 2 x DIMM slots, Max. 96GB, DDR5

• 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*

• Dual channel memory architecture

• Supports Intel® Extreme Memory Profile (XMP) memory module

• Graphics

• 1 x DisplayPort**

• 1 x HDMI™ port***


• ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.

• *** Supports 4K@30Hz as specified in HDMI 1.4.

• Expansion Slots

• Intel® CoreTM Processors (14th & 13th & 12th Gen)

• 1 x PCIe 5.0 x16 slot

• Intel® B760 Chipset

• 1 x PCIe 4.0 x1 slot

• Storage

• Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*

• Intel® Core™ Processors (14th  & 13th & 12th Gen)

• M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

• Intel® B760 Chipset

• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

• 4 x SATA 6Gb/s ports

• * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

• Ethernet

• 1 x Realtek 1Gb Ethernet

• ASUS LANGuard

• Wireless & Bluetooth

• Wi-Fi 6

• 1x1 Wi-Fi 6 (802.11ax)

• Supports 2.4/5GHz frequency band

• Bluetooth® v5.3*

• * The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

• USB

• Rear USB (Total 6 ports)

• 4 x USB 5Gbps ports (4 x Type-A)

• 2 x USB 2.0 ports (2 x Type-A）

• Front USB (Total 4 ports)

• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

• 1 x USB 2.0 header supports 2 additional USB 2.0 ports

• Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*

• - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

• - Supports up to 24-Bit/192 kHz playback

• Audio Features

• - Audio Shielding

• - Premium audio capacitors

• - Dedicated audio PCB layers

• * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

• Back Panel I/O Ports

• 4 x USB 5Gbps ports (4 x Type-A)

• 2 x USB 2.0 ports (2 x Type-A)

• 1 x HDMI™ port

• 1 x DisplayPort

• 1 x Wi-Fi module

• 1 x Realtek 1Gb Ethernet port

• 3 x Audio jacks

• Internal I/O Connectors

• Fan and Cooling Related

• 1 x 4-pin CPU Fan header

• 2 x 4-pin Chassis Fan headers

• Power Related

• 1 x 24-pin Main Power connector

• 1 x 8-pin +12V CPU Power connector

• Storage Related

• 2 x M.2 slots (Key M)

• 4 x SATA 6Gb/s ports

• USB

• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

• 1 x USB 2.0 header supports 2 additional USB 2.0 ports

• Miscellaneous

• 2 x Addressable RGB Gen 2 headers

• 1 x Clear CMOS header

• 1 x COM Port header

• 1 x Front Panel Audio header (F_AUDIO)

• 1 x S/PDIF Out header

• 1 x Speaker header

• 1 x SPI TPM header (14-1pin)

• 1 x 10-1 pin Front Panel System header

• Special Features

• ASUS 5X PROTECTION III

• - DIGI+ VRM

• - LANGuard

• - Overvoltage Protection

• - SafeSlot

• - Stainless-Steel Back I/O

• ASUS Q-Design

• - Q-DIMM

• - Q-LED Core

• - Q-Slot

• ASUS EZ DIY

• - ProCool

• ASUS Thermal Solution

• - Aluminum heatsink design

• Aura Sync

• - Addressable RGB Gen 2 headers

• Software Features

• ASUS Exclusive Software

• Armoury Crate

• - Aura Sync

• - Fan Xpert 2+

• - Two-Way AI Noise Cancelation

• AI Suite 3

• - DIGI+ VRM

• - PC Cleaner

• ASUS DriverHub

• -ASUS CPU-Z

• Norton 360 Deluxe (60 Days Free Trial)

• WinRAR (40 Days Free Trial)

• UEFI BIOS

• ASUS EZ DIY

• - ASUS CrashFree BIOS 3

• - ASUS EZ Flash 3

• - ASUS UEFI BIOS EZ Mode


• BIOS

• 128 Mb Flash ROM, UEFI AMI BIOS

• Manageability

• WOL by PME, PXE

• Accessories

• Cables

• 2 x SATA 6Gb/s cables

• Miscellaneous

• 1 x ASUS Wi-Fi moving antenna

• 1 x I/O Shield

• 2 x M.2 anchors

• Documentation

• 1 x Quick start guide

• Operating System

• Windows® 11, Windows® 10 64-bit

• Form Factor

• micro-ATX Form Factor

• 9.6 inch x 8.3 inch (24.4cm x 21.1cm)
