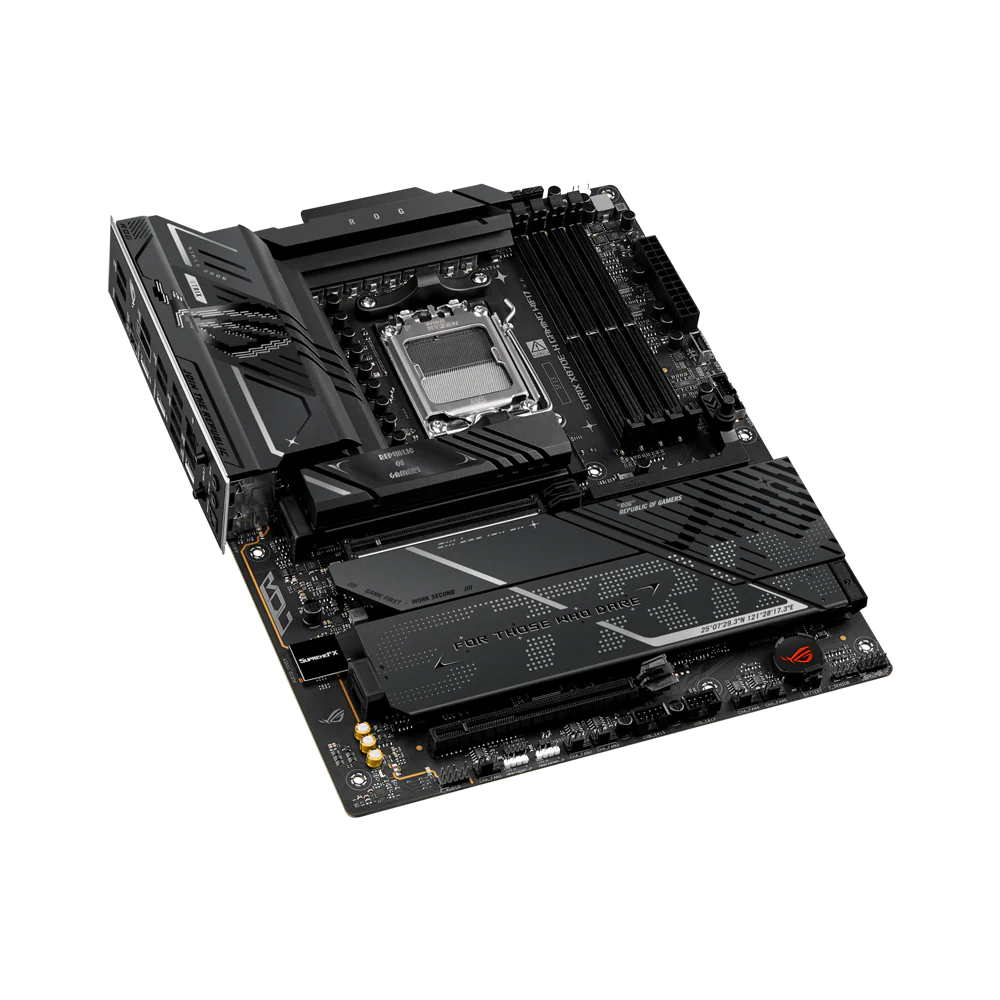

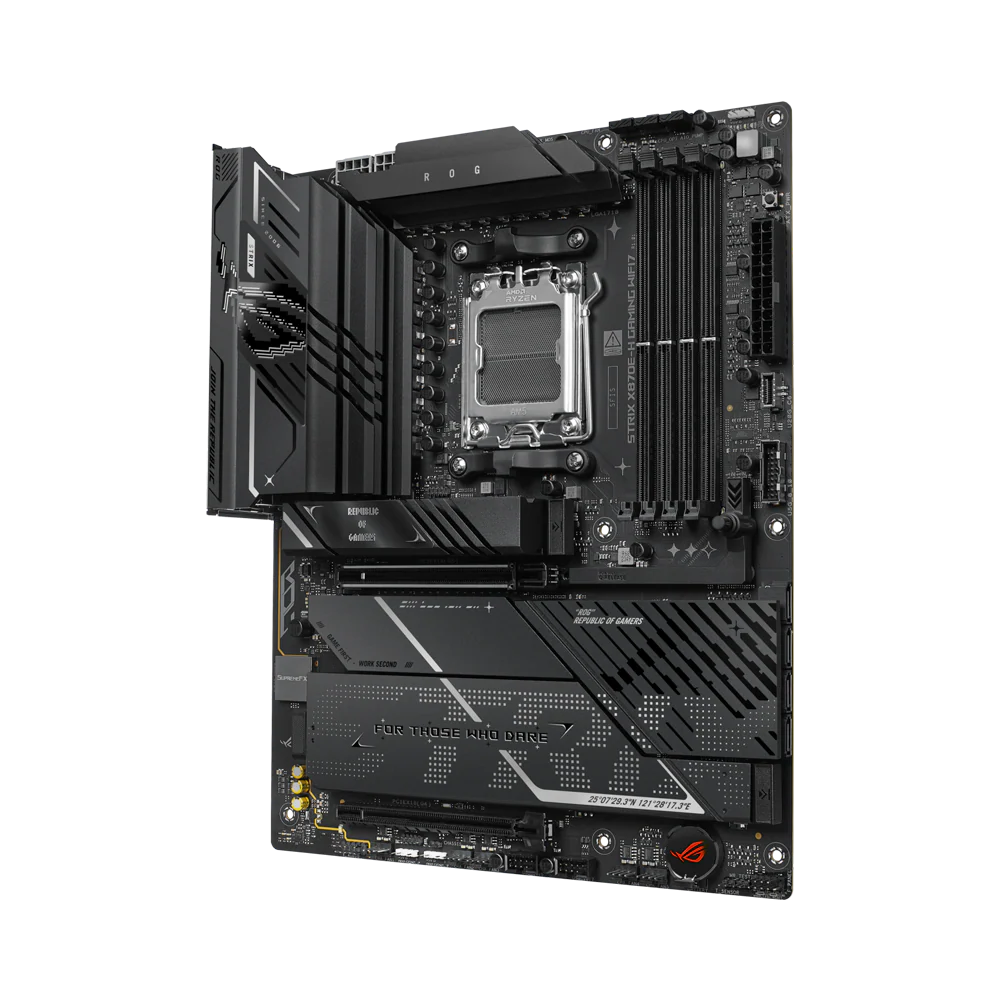

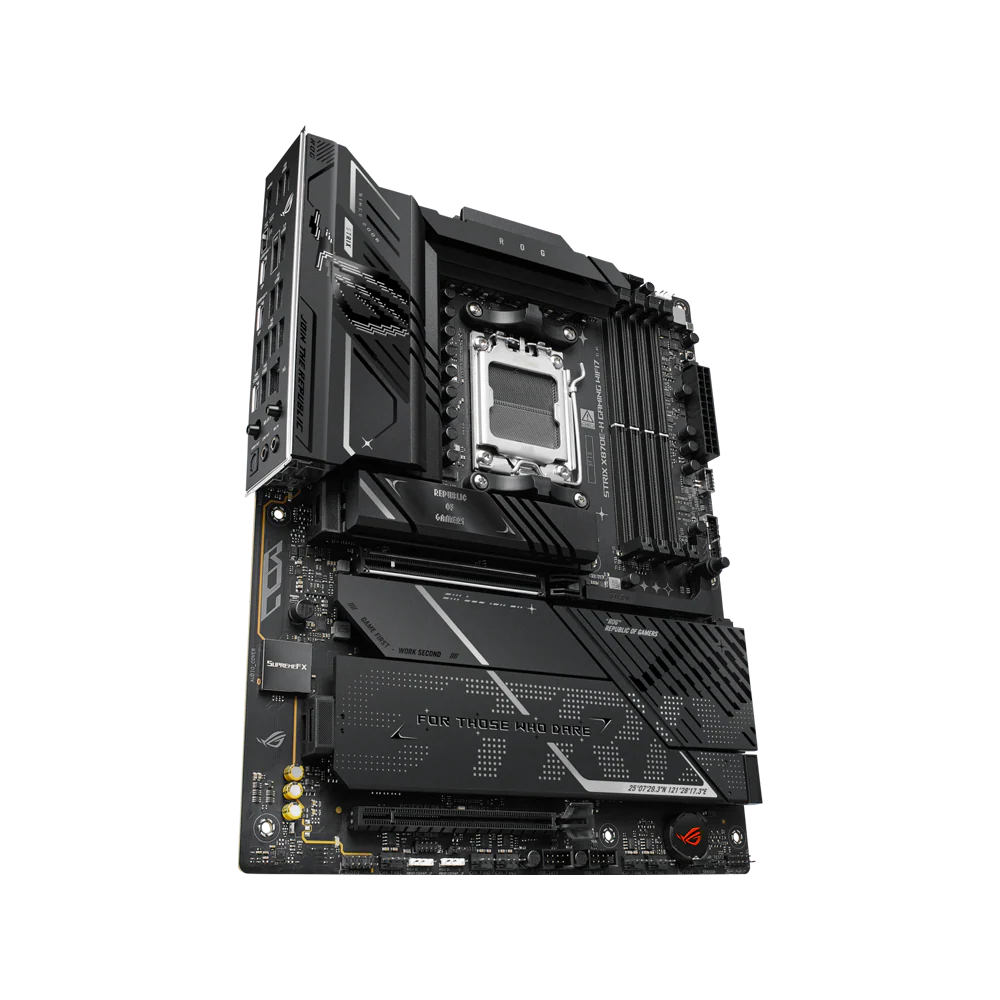

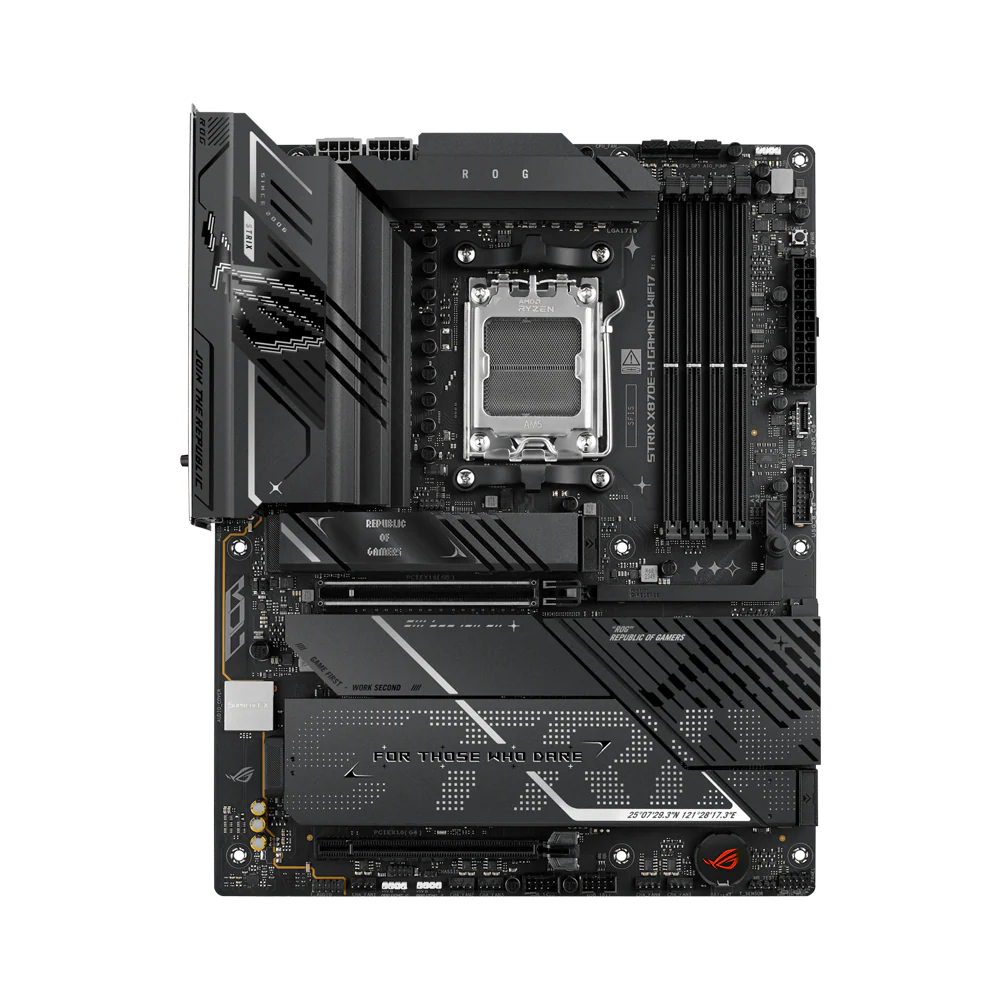

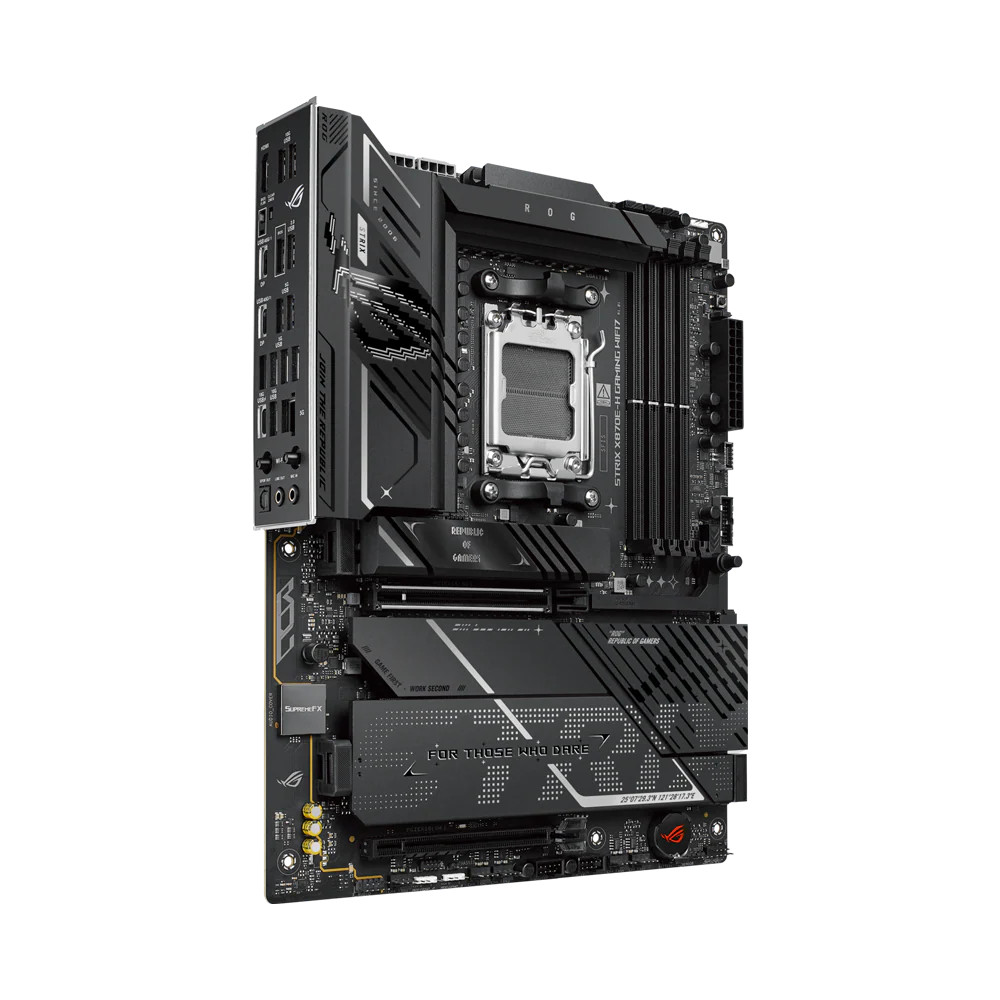

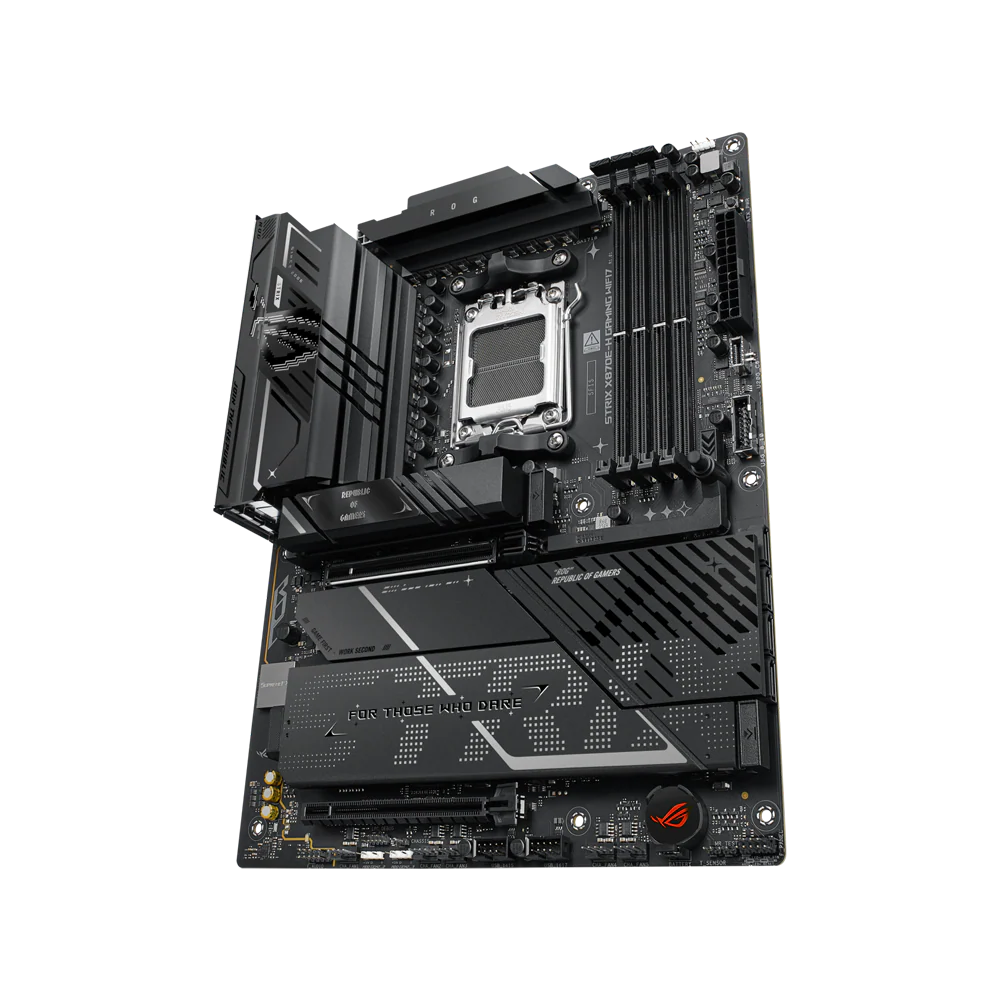

ASUS ROG STRIX X870E-H GAMING WIFI7 DDR5 Motherboard - Black

Key Features:

• Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications

• AMD AM5 Socket: Ready for AMD Ryzen™ 9000, 8000 and 7000 series desktop processors    

• Robust Power Solution: 16+2+1 power solution rated for 80A per stage with dual ProCool II power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors  

• Intelligent Control: ASUS-exclusive AI Advisor, AI Cache Boost, AI Networking II and AEMP to simplify setup and improve performance

• Optimized Thermal Design: Massive heatsinks with integrated I/O cover, and high-conductivity thermal pad

• Latest M.2 Support: Two onboard PCIe^® 5.0 M.2 slots and two PCIe 4.0 M.2 slots, all with substantial cooling solutions 

• Abundant Connectivity: Dual USB4^® Type-C ports, USB 20Gbps Type-C^® front-panel connector, one USB 10Gbps Type-C^® rear I/O port with PD 3.0 up to 30W and USB Wattage Watcher, three additional USB 10Gbps ports, PCIe 5.0 x16 SafeSlots, HDMI™ port  

• High-Performance Networking: On-board WiFi 7 (802.11be) with Realtek^® 5Gb Ethernet

• DIY Friendly Design: M.2 Q-Release on all M.2 Slots, PCIe Slot Q-Release, M.2 Q-Latch, Q-Antenna, Q-Dashboard, Q-LED, BIOS FlashBack™ button, Clear CMOS button and pre-mounted I/O shield

• Immersive Audio: Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* with Savitech SV3H712 AMP

• Renowned Software: ASUS DriverHub, ASUS GlideX, HWiNFO, Norton 360 for Gamers (60-day free trial), bundled 60-day AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard

AMD X870E-H ATX motherboard with 16+2+1 power stages, Dynamic OC Switcher, Core Flex, DDR5 slots with AEMP, WiFi 7 with ASUS WiFi Q-Antenna, four M.2 slots all with M.2 Q-Release, PCIe® 5.0 x16 SafeSlots with PCIe Slot Q-Release, two USB4® ports, USB 10Gbps Type-C® with up to 30W PD/PPS Fast-charge, ASUS AI Advisor, AI Cache Boost, AI Overclocking, AI Networking II, and AI Cooling II.

ROG STRIX X870E-H GAMING WIFI7
Transform your gaming experience with the ROG STRIX X870E-H GAMING WIFI7 motherboard. Engineered to dominate with AMD Ryzen™ 9000 Series Desktop Processors, this ATX powerhouse features cutting-edge power design and AI-enhanced solutions. With PCIe 5.0 x16 slots, dual USB4® Type-C ports, and WiFi 7, it delivers advanced connectivity. DIY-friendly features like M.2 Q-Release on all four M.2 slots and PCIe Slot Q-Release make building and upgrades effortless. Unleash your system's full potential with the ROG STRIX X870E-H GAMING WIFI7.

ASUS AI INTELLIGENCE

AI CACHE BOOST
Supercharge your large language model (LLM) workflows with AI Cache Boost. Exclusive to ASUS AMD 800 and 600 series motherboards that use Ryzen™ 9000 Series CPUs, this BIOS setting optimizes CPU cache and memory pathways to deliver up to 29% faster local LLM performance with high-speed memory tuning.

ASUS AI ADVISOR
Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.

ai OVERCLOCKING
ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.

ai COOLING II
Balance the thermals and acoustics of any build with a single click.

AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.

Performance
OVERCLOCKING

Dynamic OC Switcher
Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.

Core Flex
Core Flex empowers you to smash limits farther than ever before by letting you control clock, power, and thermals in creative new ways. In its simplest form, you can maximize base clock during lighter loads and set breakpoints to gradually reduce CPU core frequency as temperature or current increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current, and temperature limits independently so that you can bend CPU performance to your will.

PBO ENHANCEMENT
AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher.

DDR5 DOMINATION
The Strix X870E-H is primed and ready for enthusiast-grade kits courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support.

DIMM Fit / DIMM Fit Pro
DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues; whereas DIMM Fit Pro is an advanced option that provides more extensive customizability for memory optimization.

Specifications

• Model : ROG STRIX X870E-H GAMING WIFI7

CPU

• AMD Socket AM5 for AMD Ryzen™ 9000 &

• 8000 & 7000 Series Desktop Processors*

Chipset

• AMD X870E

Memory

• 4 x DIMM slots, max. 256GB, DDR5

• Supports up to 8000+MT/s(OC) with Ryzen™

• 9000 & 8000 & 7000 Series Processors

• Dual channel memory architecture

• Supports AMD Extended Profiles for

• Overclocking (EXPO™)

• Supports DIMM Fit / DIMM Fit Pro

• ASUS Enhanced Memory Profile (AEMP)

• * Supported memory types, data rate

• (speed), and number of DRAM modules vary depending on the CPU and memory

• configuration, for more information please refer to CPU/Memory Support list


• Adjustments will be made based on the specifications of mass-produced memory

• products available on the market.

• ** Non-ECC, un-buffered DDR5 memory

• supports On-Die ECC function.

• 4 x DIMM slots, max. 256GB, DDR5

• Supports up to 8000+MT/s(OC) with Ryzen™

• 9000 & 8000 & 7000 Series Processors

• Dual channel memory architecture

• Supports AMD Extended Profiles for

• Overclocking (EXPO™)

• Supports DIMM Fit / DIMM Fit Pro

• ASUS Enhanced Memory Profile (AEMP)

• * Supported memory types, data rate

• (speed), and number of DRAM modules vary depending on the CPU and memory

• configuration, for more information please refer to CPU/Memory Support list


• Adjustments will be made based on the specifications of mass-produced memory

• products available on the market.

• ** Non-ECC, un-buffered DDR5 memory

• supports On-Die ECC function.

Graphics

• 1 x HDMI™ port**

• 2 x USB4® (40Gbps) ports support USB

• Type-C® display outputs***

• * Graphics specifications may vary between

• CPU types. Please refer to AMD CPU specifications.

• ** Supports 4K@60Hz as specified in HDMI 2.1.

• *** Supports max. 4K@60Hz as specified in

• DisplayPort 1.4a

• **** VGA resolution support depends on

• processors' or graphic cards' resolution.

• Expansion Slots

• AMD Ryzen™ 9000 & 7000 Series Desktop Processors*

• 1 x PCIe 5.0 x16 slot (supports x16 mode)

• AMD Ryzen™ 8000 Series Desktop Processors*

• 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**

• AMD X870E Chipset

• 1 x PCIe 4.0 x16 slot (supports x4 mode


• ** Specifications vary by CPU types.

• the list of supported peripherals.

• Storage

• Supports 4 x M.2 slots and 4 x SATA 6Gb/s

• ports

• AMD Ryzen™ 9000 & 7000 Series Desktop

• Processors

• M.2_1 slot (Key M), type 2242/2260/2280

• (supports PCIe 5.0 x4 mode)

• M.2_2 slot (Key M), type 2280/22110

• (supports PCIe 5.0 x4 mode)*

• AMD Ryzen™ 8000 Series Desktop Processors*

• M.2_1 slot (Key M), type 2242/2260/2280

• (supports PCIe 4.0 x4/x2 mode)

• M.2_2 slot (Key M), type 2280/22110 (Not

• supports)**

• AMD X870E Chipset

• M.2_3 slot (Key M), type 2280 (supports

• PCIe 4.0 x4 mode)

• M.2_4 slot (Key M), type 2280 (supports

• PCIe 4.0 x4 mode)

• 4 x SATA 6Gb/s ports

• * M.2_2 shares bandwidth with PCIEX16(G5).

• When M.2_2 is occupied with SSD device, PCIEX16(G5) will run x8 only.

• ** M.2_2 will be disabled when using AMD

• Ryzen™ 8000 Series Desktop Processors.

• RAID Support

• AMD RAIDXpert2 Technology*

• Ryzen™ 9000 Series Processors: RAID

• 0/1/5/10

• Ryzen™ 8000 Series Processors: RAID 0/1

• Ryzen™ 7000 Series Processors: RAID 0/1/10

• * Specifications vary by CPU types.

• Ethernet

• 1 x Realtek 5Gb Ethernet

• ASUS LANGuard

• Wireless & Bluetooth

• Wi-Fi 7 (Realtek® RTL8922AE)

• 2x2 Wi-Fi 7* (802.11be)

• Supports 2.4/5/6GHz frequency band**

• Supports Wi-Fi 7 160MHz bandwidth

• Bluetooth® v5.4***

• *Wi-Fi features may vary depending on the

• operating system

• For

• Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions,

• Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.

• For

• Windows 10, only Wi-Fi 6 is supported.

• ** Wi-Fi 6GHz frequency band and bandwidth

• regulatory may vary between countries.

• *** The Bluetooth® version may vary, please

• refer to the Wi-Fi module manufacturer's website for the latest specifications.

• USB

• Rear USB (Total 14 ports)

• 2 x USB4® (40Gbps) ports  (2 x USB Type-C®)

• 4 x USB 10Gbps ports (3 x Type-A + 1 x USB

• Type-C® with up to 30W PD/PPS Fast-charge)**

• 6 x USB 5Gbps ports (6 x Type-A)

• 2 x USB 2.0 ports (2 x Type-A)

• Front USB (Total 7 ports)

• 1 x USB 20Gbps connector (supports USB

• Type-C®)

• 1 x USB 5Gbps header supports 2 additional

• USB 5Gbps ports

• 2 x USB 2.0 headers support 4 additional

• USB 2.0 ports

• * USB Type-C® power delivery output: max.

• 5V/3A

• ** USB Type-C® power delivery output: 5V/9V

• max. 3A, 12V max 2.5A, 15V max. 2.0A

• Audio

• Realtek ALC1220P 7.1 Surround Sound

• High Definition Audio CODEC*

• - Impedance sense for front and rear

• headphone outputs

• - Internal audio Amplifier to enhance the

• highest quality sound for headphone and speakers

• - Supports: Jack-detection,

• Multi-streaming, Front Panel Jack-retasking

• - High quality 120 dB SNR stereo playback

• output and 113 dB SNR recording input (Line-in)

• - Supports up to 32-Bit/192 kHz

• playback*

• Audio Features

• - SupremeFX Shielding Technology

• - Savitech SV3H712 AMP

• - Rear optical S/PDIF out port

• - Premium audio capacitors

• - Audio cover

• * The LINE OUT port on the rear panel does

• not support spatial audio. If you wish to use spatial audio, make sure to

• connect your audio output device to the audio jack on the front panel of your

• chassis or use a USB interface audio device.

• Back Panel I/O Ports

• 2 x USB4® (40Gbps) ports(2 x USB Type-C®)

• 4 x USB 10Gbps ports (3 x Type-A + 1 x USB

• Type-C® with up to 30W PD/PPS Fast-charge)**

• 6 x USB 5Gbps ports (6 x Type-A)

• 2 x USB 2.0 ports (2 x Type-A)

• 1 x HDMI™ port

• 1 x Wi-Fi module

• 1 x Realtek 5Gb Ethernet

• 2 x Audio jacks

• 1 x Optical S/PDIF out port

• 1 x BIOS FlashBack™ button

• 1 x Clear CMOS button

• 2 x USB4® (40Gbps) ports(2 x USB Type-C®)

• 4 x USB 10Gbps ports (3 x Type-A + 1 x USB

• Type-C® with up to 30W PD/PPS Fast-charge)**

• 6 x USB 5Gbps ports (6 x Type-A)

• 2 x USB 2.0 ports (2 x Type-A)

• 1 x HDMI™ port

• 1 x Wi-Fi module

• 1 x Realtek 5Gb Ethernet

• 2 x Audio jacks

• 1 x Optical S/PDIF out port

• 1 x BIOS FlashBack™ button

• 1 x Clear CMOS button

• Internal I/O Connectors

• Fan and Cooling Related

• 1 x 4-pin CPU Fan header

• 1 x 4-pin CPU OPT Fan header

• 1 x 4-pin AIO Pump header

• 5 x 4-pin Chassis Fan headers

• Power Related

• 1 x 24-pin Main Power connector

• 2 x 8-pin +12V CPU Power connector

• Storage Related

• 4 x M.2 slots (Key M)

• 4 x SATA 6Gb/s ports

• USB

• 1 x USB 20Gbps connector (supports USB

• Type-C®)

• 1 x USB 5Gbps header supports 2 additional

• USB 5Gbps ports

• 2 x USB 2.0 headers support 4 additional

• USB 2.0 ports

• Miscellaneous

• 3 x Addressable RGB Gen 2 headers

• 1 x Chassis Intrusion header

• 1 x CPU Over voltage jumper

• 1 x Front Panel Audio header (F_AUDIO)

• 1 x Start button

• 1 x 10-1 pin Front Panel System header

• 1 x Thermal Sensor header

• Special Features

• Extreme Engine Digi+

• - 5K Black metallic capacitors

• ASUS Q-Design

• - M.2 Q-Latch

• - M.2 Q-Release

• - PCIe Slot Q-Release

• - Q-Antenna

• - Q-Dashboard

• - Q-DIMM

• - Q-LED (CPU [red], DRAM [yellow], VGA

• [white], Boot Device [yellow green])

• - Q-Slot

• ASUS Thermal Solution

• - M.2 heatsink

• - VRM heatsink design

• ASUS EZ DIY

• - BIOS FlashBack™ button

• - BIOS FlashBack™ LED

• - Clear CMOS button

• - ProCool II

• - Pre-mounted I/O shield

• - SafeSlot

• - SafeDIMM

• Aura Sync

• -Addressable RGB Gen 2 headers

• Software Features

• ROG Exclusive Software

• - ROG CPU-Z

• - Dolby Atmos

• ASUS Exclusive Software

• Armoury Crate

• - Aura Creator

• - Aura Sync

• - Fan Xpert 4 (with AI Cooling II)

• - GameFirst

• ASUS AI Advisor

• ASUS DriverHub

• - AIDA64 Extreme (60 days free trial)

• - HWiNFO

• ASUS GlideX

• USB Wattage Watcher

• TurboV Core

• Adobe Creative Cloud (Free Trial)**

• Norton 360 for Gamers (60 Days Free Trial)

• WinRAR (40 Days Free Trial)

• UEFI BIOS

• AI Overclocking Guide

• AI Cache Boost

• ASUS EZ DIY

• - ASUS CrashFree BIOS 3

• - ASUS EZ Flash 3

• - ASUS UEFI BIOS EZ Mode

• - ASUS MyHotkey

• FlexKey

• ** For detailed information on the


• BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS

• Manageability

• WOL by PME, PXE

Accessories

• Cables

• 2 x SATA 6Gb/s cables

• Miscellaneous

• 1 x ASUS WiFi Q-Antenna

• 1 x Cable ties package

• 1 x M.2 Q-Latch package

• 1 x ROG key chain

• 1 x ROG Strix stickers

• 4 x M.2 rubber

• Documentation

• 1 x Quick start guide

• Operating System

• Windows 11

Form Factor

• ATX Form Factor

• 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
