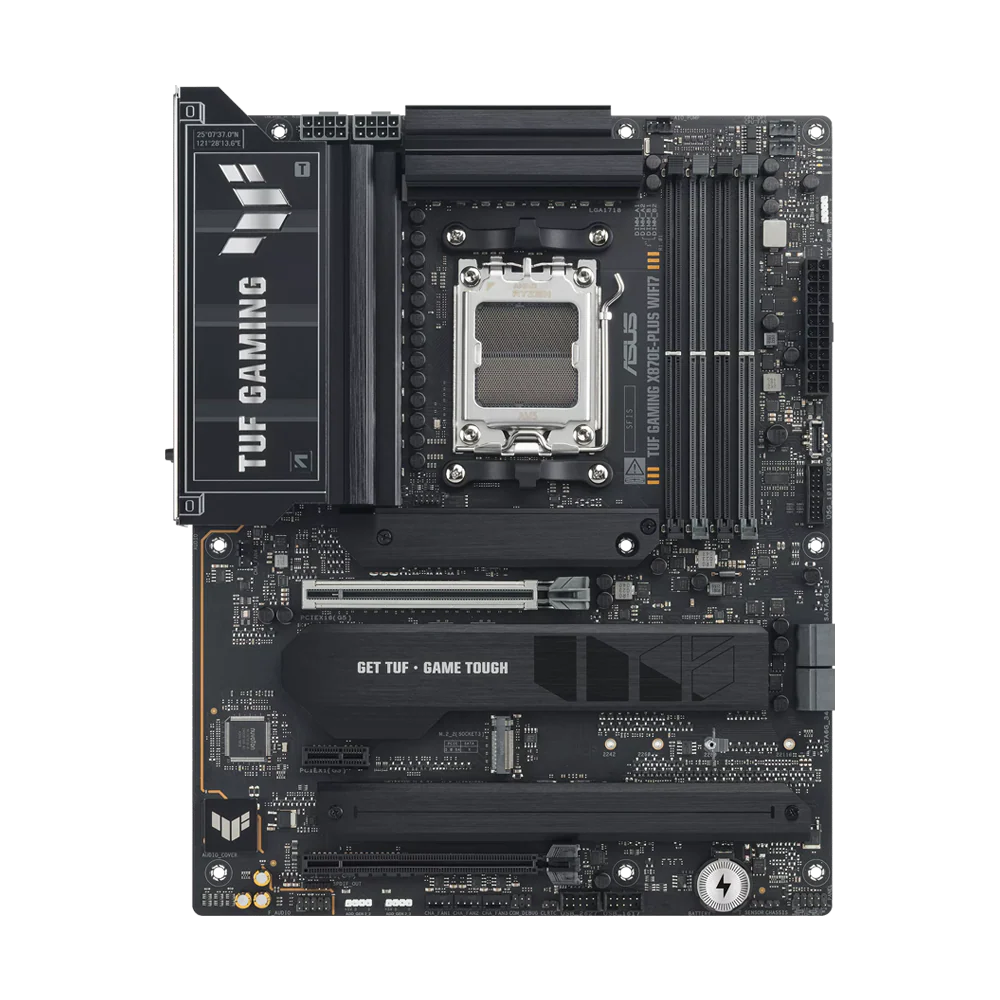

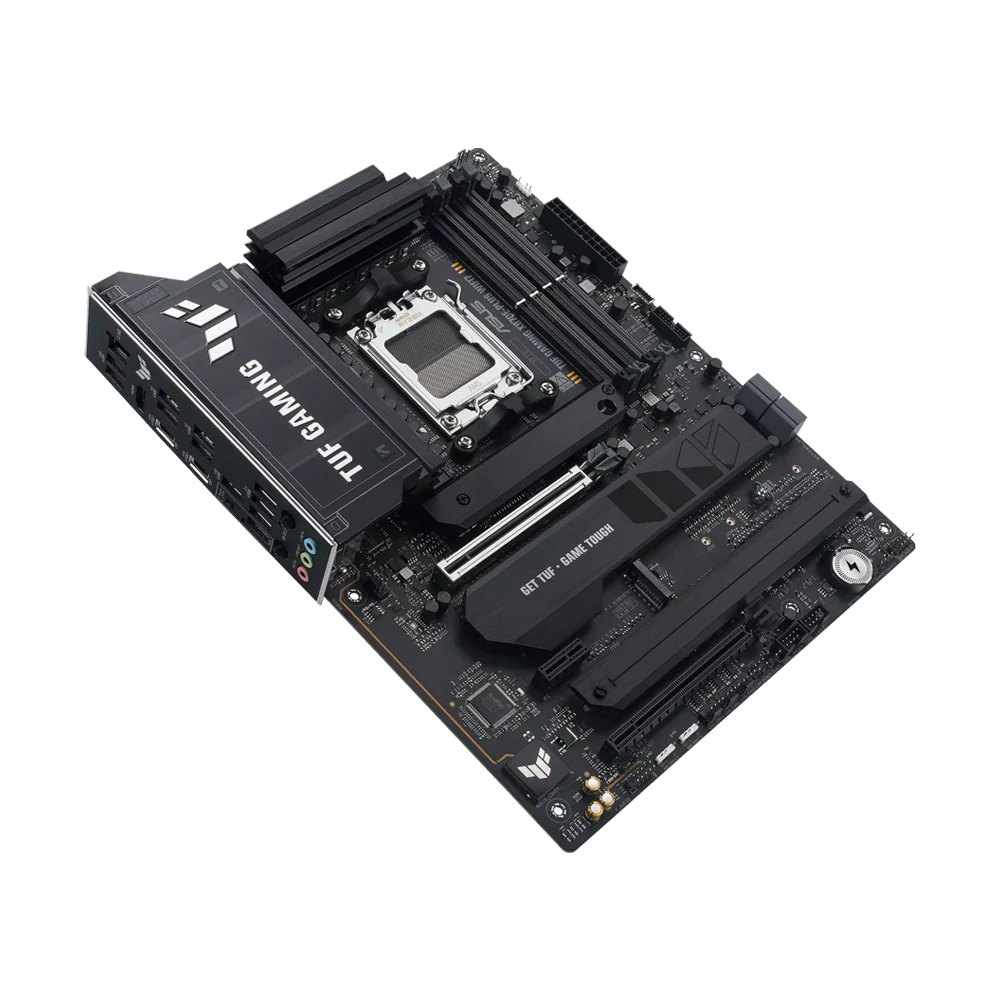

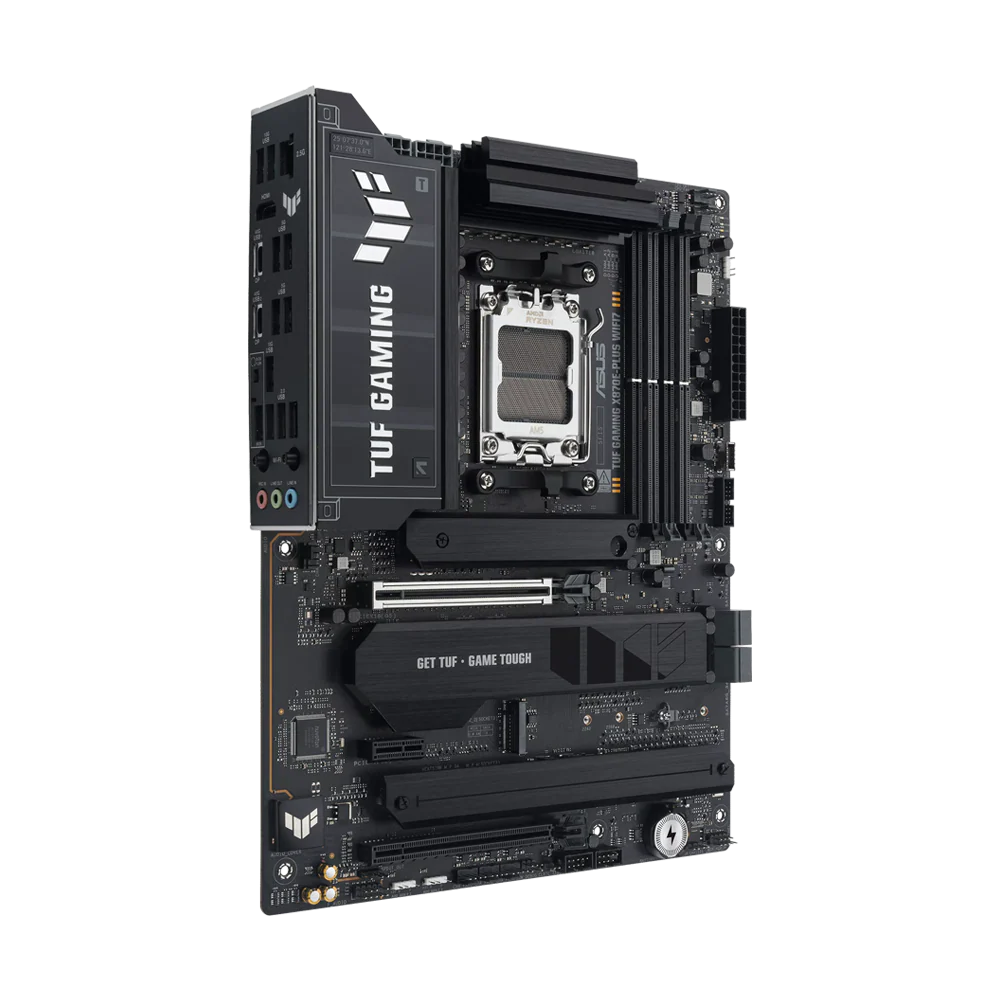

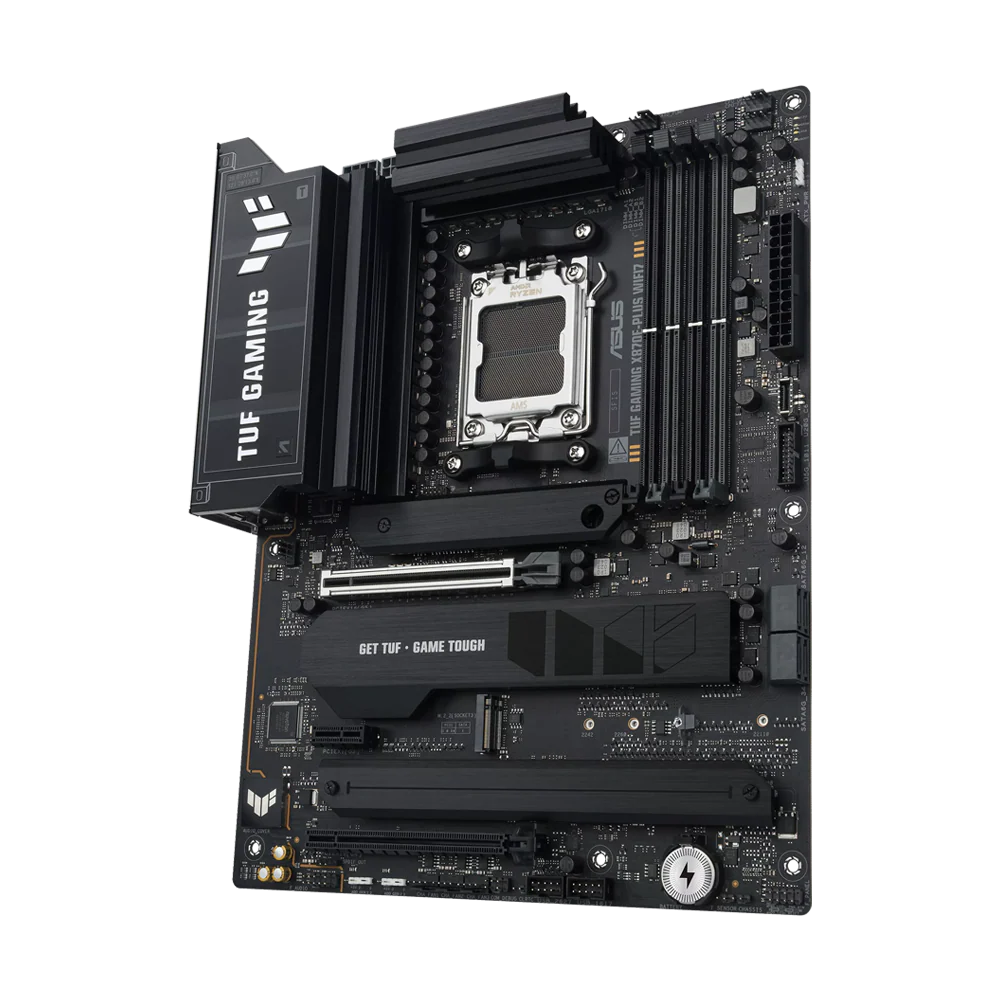

ASUS TUF GAMING X870E-PLUS WIFI7 DDR5 Motherboard - Black

TUF GAMING
X870E-PLUS WIFI7
ASUS TUF GAMING X870E-PLUS WIFI7 takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.

Complete AI Solution
ASUS AI Solutions – including AI Advisor, AI Overclocking, AI Cooling II for thermal control and AI Networking II for real-time bandwidth optimization – offer smart assistance, one click overclocking, efficient cooling and new levels of ultrafast connectivity.

AI CACHE BOOST
Supercharge your large language model (LLM) workflows with AI Cache Boost. Exclusive to ASUS AMD 800 and 600 series motherboards that use Ryzen™ 9000 Series CPUs, this BIOS setting optimizes CPU cache and memory pathways to deliver up to 29% faster local LLM performance with high-speed memory tuning.

AI Advisor
ASUS AI Advisor is an ASUS technical expert that's always available to answer your questions. Owners of compatible ASUS motherboards can interact with this AI-powered technology using natural language to learn more about their hardware. For DIY beginners, it can provide easy-to-understand explanations of one-click optimization features like AI Overclocking and AI Cooling II, and for seasoned PC-building veterans, it can offer guidance and instructions on the latest features offered by ASUS.

AI Overclocking
Maximized CPU performance, and predictions for ideal CPU and cooling settings, pushing your system to its limits.

AI Cooling II
Optimized thermals, and reduced noise via dynamic adjustment of fan speeds, based on CPU temperatures.

AI Networking II
Optimized network performance, helping to ensure seamless connectivity and maximized WiFi 7 speeds.

Intelligent
Overclocking

DYNAMIC OC SWITCHER
Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrivefor single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.

CORE FLEX
Core Flex empowers you to smash limits farther than ever before by letting you control power and thermals in creative new ways. In its simplest form, you can set breakpoints to gradually reduce CPU core frequency as temperature or current increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current and temperature limits independently so that you can bend CPU performance to your will.

Intelligent
Intelligent Control

UEFI BIOS
The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.

BIOS Q-Dashboard
Simplify your motherboard configuration with BIOS Q-Dashboard. Its intuitive visual representation of hardware connections and corresponding BIOS settings takes the complexity out of setting up your system. Upgrade now, and discover the power of BIOS Q-Dashboard to easily and efficiently enhance your computing setup.

Performance
Premium Power Design
Stable power is crucial for maximizing the performance of AMD processors. The motherboard is designed to meet the needs of high-core-count CPUs. It features 16(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80A each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.

Eight Layered PCB design
Enhanced stability and overclocking.

ProCool Power Connectors
Proprietary 8+8 pin connectors improve PSU connection.

TUF Components
TUF chokes and capacitors offer rock-solid durability and stability.

Digi+VRM Control
Real-time voltage control.

Performance
Memory & Storage

DRAM Overclocking Performance
Comprehensive memory tuning options are the cornerstone of TUF GAMING motherboards. With the motherboard, you can extract all the potential out of your DDR5 modules*, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.

DDR5 DOMINANCE
For those who want to fly past stock DDR5 speeds, this motherboard is primed and ready for enthusiast-grade kits, courtesy of vast AMD Extended Profiles for Overclocking (EXPO™) support. Seasoned veterans can further tweak performance via an extensive array of settings in the UEFI.

ASUS AEMP
ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can quickly apply.

DIMM Fit / DIMM Fit Pro
DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues.

DIMM Fit Pro gives advanced PC builders more extensive customizability for memory tuning. It allows users to control up to twenty overclocking parameters, define testing ranges, and prioritize stability or performance, offering a more flexible and granular approach to memory optimization.

M.2 PCIe 5.0 Support
This motherboard also features two PCIe 5.0 M.2 slots to enjoy the fastest data transfers of up to 128 Gbps*, and all M.2 slots support NVMe RAID configurations to take advantage of the latest available speeds.

Cooling
Cooler Compatibility
ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new TUF Gaming motherboards, empowering you to build your dream gaming rig.

Connectivity
Empowering Connection
This motherboard offers a versatile range of connectivity with PCIe 5.0, USB4® 40Gbps and front USB 20Gbps Type-C® connectors with Fast Charge support.

PCIe 5.0 for Graphics Card
PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards and backward compatibility with previous versions of the PCIe bus.

USB4® 40Gbps Type-C® Port
Each port delivers up to 40Gbps of bi-directional bandwidth for the latest super-speed devices and drives. Both ports can be employed for up to two external 4K displays.

Front USB 20Gbps Type-C®
This motherboard features a USB 20Gbps Type-C® front panel connector for speedy data transfers of up to 20Gbps. And it offers Power Delivery (PD) 3.0 technology to provide up to 30W of quick charging.

DIY
Easy PC DIY

PCIe Slot Q-Release Slim
Simply tilt the card toward the latching mechanism to automatically unlock it from the PCIe slot. This makes upgrades and maintenance easier than ever before. Users will no longer need to fiddle with a tricky latch or even press a button to release their graphics card from the slot.

Gaming
Ultrafast Networking
Provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay.

2.5Gb Ethernet
On-board 2.5Gb Ethernet kicks your LAN connection up a notch by improving bandwidth speeds up to 2.5X faster than 1Gb connections.

WiFi 7
WiFi 7 ensures stable connections and low latency.

ASUS WiFi Q-Antenna
ASUS WiFi Q-Antenna delivers up to 18% stronger wireless signal reception compared to the previous generation.

Audio

Realtek 7.1 Channel Audio
ALC1220P
This motherboard utilizes an audio codec designed in close collaboration with Realtek — the Realtek ALC1220P. It features an unprecedented 120 dB signal-to-noise (SNR) ratio for the stereo line out and a 113 dB SNR for the line in, providing pristine audio quality. Additionally, an impedance-sensing circuit automatically adjusts gain to ensure an optimal volume range for your headphones.

DTS Audio Processing
DTS® Audio Processing enhances gaming headset and speaker audio experiences by reducing distortion and by providing deeper bass, so games, movies and music sound better. It also allows you to customize audio settings.

Lighting

Outshine The Competition
ASUS Aura Sync offers synchronized lighting with other Aura Sync products, including motherboards, graphics cards, monitors and peripherals.

Addressable Gen 2 RGB Headers
Automatically optimize lighting effects for the number of LEDs present in compatible ARGB gear.

Specifications

• Model : TUF GAMING X870E-PLUS WIFI7

• CPU : AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*

• Chipset : AMD X870E Chipset

• Memory : 4 x DIMM slots, max. 256GB, DDR5

• Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*"

• Dual channel memory architecture

• DIMM Fit

• Supports AMD Extended Profiles for Overclocking (EXPO™)

• ASUS Enhanced Memory Profile (AEMP)

• * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

• Graphics

• 1 x HDMI™ port**

• 2 x USB4® (40Gbps) ports support USB Type-C® display outputs***

• * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.

• ** Supports 4K@60Hz as specified in HDMI 2.1.

• *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a.

• *** VGA resolution support depends on processors' or graphic cards' resolution.

• Expansion Slots

• AMD Ryzen™ 9000 & 7000 Series Desktop Processors*

• 1 x PCIe 5.0 x16 slot**

• AMD Ryzen™ 8000 Series Desktop Processors

• 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)

• AMD X870E Chipset

• 1 x PCIe 4.0 x16 slot (supports x4 mode)

• 1 x PCIe 3.0 x1 Slot


• ** Specifications vary by CPU types.

• Storage

• Total Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports

• AMD Ryzen™ 9000 & 7000 Series Desktop Processors

• M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)*

• M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**

• AMD Ryzen™ 8000 Series Desktop Processors

• M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

• M.2_2 slot is not supported

• AMD X870 Chipset

• M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

• M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

• 4 x SATA 6Gb/s ports

• AMD RAIDXpert2 Technology

• Ryzen™ 9000 Series Processors: RAID 0/1/5/10

• Ryzen™ 8000 Series Processors: RAID 0/1

• Ryzen™ 7000 Series Processors: RAID 0/1/10

• * Specifications vary by CPU types.

• ** M.2_2 slot shares bandwidth with PCIex16(G5)_1 When M.2_2 runs at PCIe x4 mode, PCIex16(G5)_1 will run x8.

• Ethernet

• 1 x Realtek 2.5Gb Ethernet

• TUF LANGuard

• Wireless & Bluetooth

• Wi-Fi 7*

• 2x2 Wi-Fi 7 (802.11be)

• Supports 2.4/5/6GHz frequency band**

• Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate

• Bluetooth® v5.4***

• * Wi-Fi features may vary depending on the operating system.

• For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.

• ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.

• *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

• USB

• Rear USB (Total 13 ports)

• 2 x USB4® (40Gbps) ports  (2 x USB Type-C®)*

• 3 x USB 10Gbps ports (3 x Type-A)

• 4 x USB 5Gbps ports (4 x Type-A)

• 4 x USB 2.0 ports (4 x Type-A)

• Front USB (Total 7 ports)

• 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge)**

• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

• * USB Type-C® power delivery output: max. 5V/3A

• ** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A.

• Audio

• Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC

• - Impedance sense for front and rear headphone outputs

• - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers

• - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

• - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)

• - Supports up to 32-Bit/192 kHz playback*"

• Audio Features

• - Audio Shielding

• - Premium audio capacitors

• - Dedicated audio PCB layers

• - Audio cover

• - Unique de-pop circuit

• * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

• Back Panel I/O Ports

• 2 x USB4® (40Gbps) ports (2 x USB Type-C®)

• 3 x USB 10Gbps ports (3 x Type-A)

• 4 x USB 5Gbps ports (4 x Type-A)

• 4 x USB 2.0 ports (4 x Type-A)

• 1 x HDMI™ port

• 1 x Wi-Fi module

• 1 x Realtek 2.5Gb Ethernet port

• 3 x Audio jacks

• 1 x BIOS FlashBack™ button

• Internal I/O Connectors

• Fan and Cooling Related

• 1 x 4-pin CPU Fan header

• 1 x 4-pin CPU OPT Fan header

• 1 x 4-pin AIO Pump header

• 4 x 4-pin Chassis Fan headers

• Power Related

• 1 x 24-pin Main Power connector

• 2 x 8-pin +12V CPU Power connectors

• Storage Related

• 4 x M.2 slots (Key M)

• 4 x SATA 6Gb/s ports

• USB

• 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge)

• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

• Miscellaneous

• 3 x Addressable Gen 2 headers

• 1 x Clear CMOS header

• 1 x Chassis Intrusion header

• 1 x Front Panel Audio header (F_AUDIO)

• 1 x 10-1 pin Front System Panel header

• 1 x Thermal Sensor header

• Special Features

• ASUS TUF PROTECTION

• - DIGI+ VRM (- Digital power design with SPS)

• - ESD Guards

• - TUF LANGuard

• - Overvoltage protection

• - SafeSlot

• - Stainless-steel back I/O

• ASUS Q-Design

• - M.2 Q-Latch

• - Q-Release Slim (with PCIe SafeSlot)

• - Q-Antenna

• - Q-Dashboard

• - Q-DIMM

• - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

• - Q-Slot

• ASUS Thermal Solution

• - M.2 heatsinks

• - VRM heatsink design

• ASUS EZ DIY

• - BIOS FlashBack™ button

• - BIOS FlashBack™ LED

• - ProCool

• - Pre-mounted I/O shield

• - SafeDIMM

• Aura Sync

• - Addressable Gen 2 headers

• Front Panel USB 20Gbps with PD Fast Charge Support

• - Support: up to 30W fast charging and USB Wattage Watcher

• - Output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A

• - Compatible with PD3.0

• Software Features

• ASUS Exclusive Software

• Armoury Crate

• - Aura Creator

• - Aura Sync

• - Fan Xpert 4 (with AI Cooling II)

• ASUS AI Advisor

• ASUS DriverHub

• ASUS GlideX

• USB Wattage Watcher

• TurboV Core

• TUF GAMING CPU-Z

• DTS Audio Processing

• Norton 360 for Gamers (60 Days Free Trial)

• WinRAR (40 Days Free Trial)

• UEFI BIOS

• AI Overclocking Guide

• ASUS EZ DIY

• - ASUS CrashFree BIOS 3

• - ASUS EZ Flash 3

• - ASUS UEFI BIOS EZ Mode

• - ASUS MyHotkey

• BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS

• Manageability

• WOL by PME, PXE

Accessories

• Cables

• 2 x SATA 6Gb/s cables

• Miscellaneous

• 1 x ASUS WiFi Q-Antenna

• 2 x M.2 rubber packages

• 1 x Screw package for M.2 SSD

• 1 x TUF GAMING sticker

• Documentation

• 1 x Quick start guide

Operating System

• Windows 11

Form Factor

• ATX Form Factor : 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
