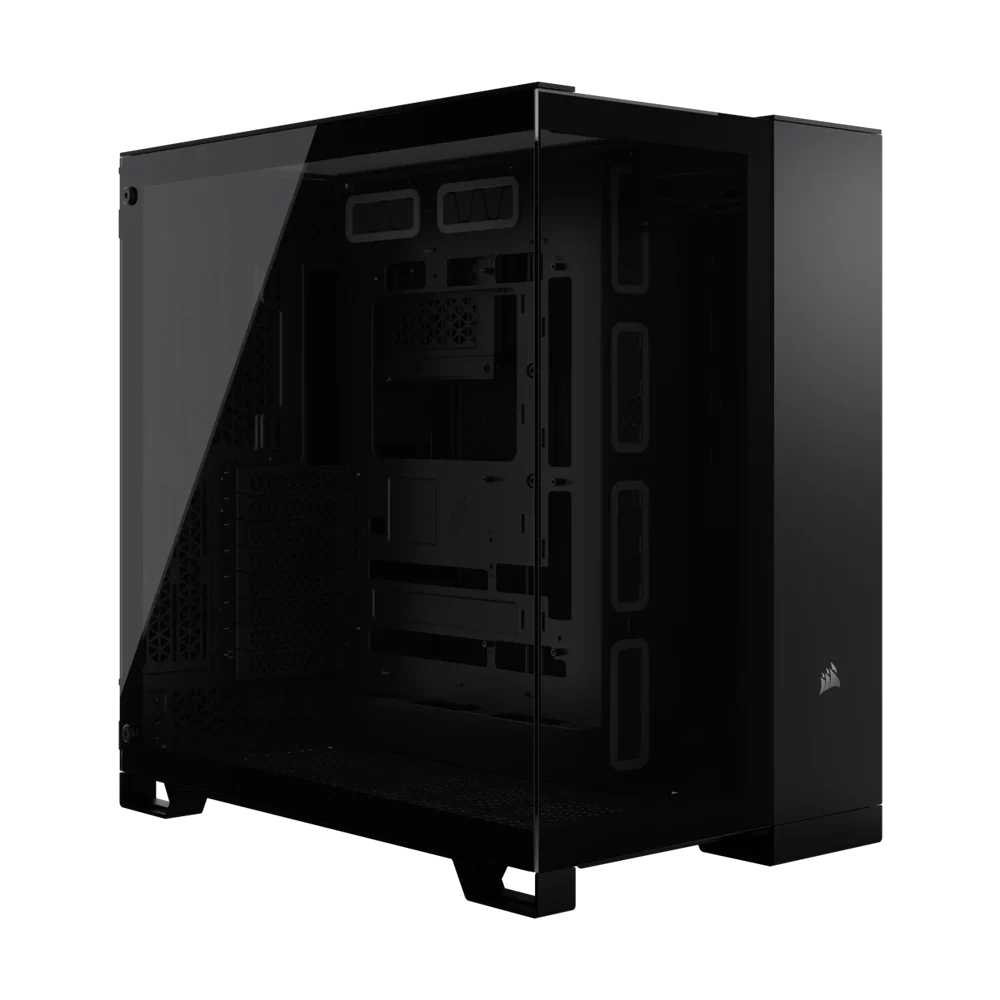

Corsair 6500X Mid Tower Case - Black

Key Features

• Dual chambers for a streamlined look
• Lots of customization options
• Compatible with reverse connector motherboards including ASUS BTF, MSI PROJECT ZERO, and GIGABYTE PROJECT STEALTH
• Wide cooling flexibility

CHOOSE YOUR ADVENTURE
Freedom of choice inside and out. Choose your cooling setup: opt for more glass to showcase your components, or a more subtle airflow configuration – in more than just black or white.

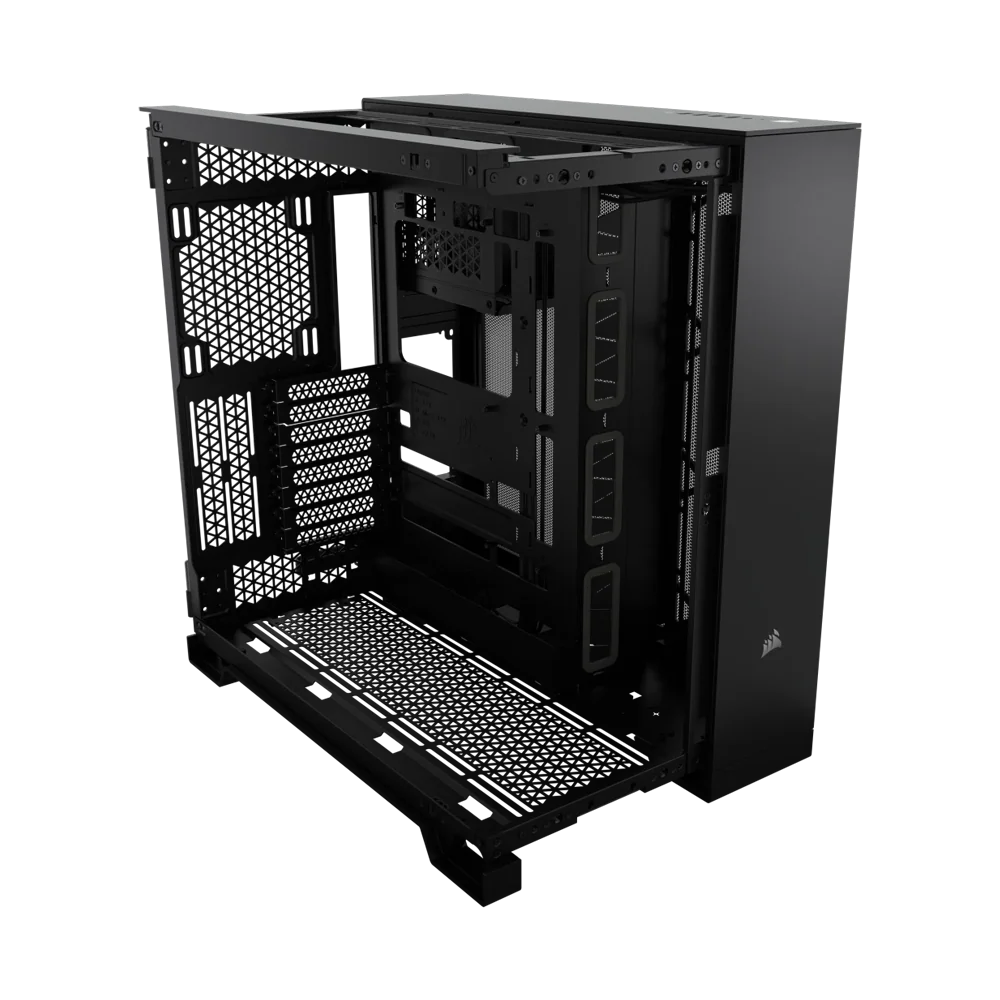

DUAL CHAMBER DESIGN
Show off your cleanest, most organized build in one chamber equipped with a multitude of fan and radiator mounts, while hiding cable routing, storage drives, and your PSU in the second chamber.

A FLAWLESS VIEW
Take advantage of reverse connector motherboard compatibility (ASUS BTF, MSI PROJECT ZERO, GIGABYTE PROJECT STEALTH) and iCUE LINK and win the war on cables once and for all.

ZERO COMPROMISE AIRFLOW
The 6500X doesn't just look cool. Fan and radiator mounts all around ensure enough airflow for any flagship build.

YOUR CASE, YOUR STYLE
Customize with a wide range of optional accessories for a setup that reflects your unique tastes.

WIDE COOLING FLEXIBILITY
Customize your cooling setup with room for up to 10x 120mm or 7x 140mm fans, including versatile radiator mounting options for up to 360mm in the front, roof, bottom, and side.

DIMENSIONS

The 6500X has more than enough space to accommodate and cool your most ambitious build.

MODERN FRONT PANEL I/O
Puts your connections within easy reach, including a USB 3.2 Gen 2 Type-C Port, 4x USB 3.2 Gen 1 Type-A ports, and a combination audio/microphone jack.

Specifications

• Case Supported : Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)

• Case Height : 496

• Case Length : 481

• Case Width : 328

• Material : Steel, Tempered Glass, Plastic

• Motherboard Support : Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)

• Case Size : Mid-Tower

• Radiator Compatibility : 120mm, 140mm, 240mm, 280mm, 360mm

• Case Window : Tempered Glass

• Compatible Liquid Coolers : H60, H100i, H115i, H150i (All Series)

• Internal 3.5" Drive Bays : 2

• Internal 2.5" Drive Bays : 2

• Maximum CPU Cooler Height : 190mm

• Maximum PSU Length : 225mm

• Case Front IO : (1x) USB 3.2 Gen 2 Type-C, (4x) USB 3.2 Gen 1 Type-A, (1x) Audio in/out

• Maximum GPU Length : 400mm

• Weight : 16.4kg

• Case Expansion Slots : 8 horizontal (+4 vertical with Vertical Mount Accessory)

• Case Power Supply : ATX

• Radiator Support - Top : 360mm, 280mm, 240mm

• Radiator Support - Front : None (Glass Panel)

• Radiator Support - Bottom : 360mm, 280mm, 240mm

• Radiator Support - Side : 360mm, 240mm

• Radiator Support - Rear : 140mm, 120mm

• Fan Support - Top : 3x 120mm, 3x 140mm

• Fan Support - Front : None (Glass Panel)

• Fan Support - Bottom : 3x 120mm, 3x 140mm

• Fan Support - Side : 3x 120mm

• Fan Support - Rear : 1x 120mm, 1x 140mm

• Front IO Motherboard Connections : 1x HD Audio; 2x USB 3.2 Gen1; 1x USB-3.2 Gen2 Type-E; 1x F_PANEL

• Reverse Connector Motherboard Support : Yes

• Dust Filtration : Yes

• Cable Routing Space : 109mm

• RapidRoute Included : Compatible (Sold Separately)

• Power Supply Shroud Dimensions : N/A

• Left Side Panel : Tempered Glass

• Right Side Panel : Mesh

• Vertical Mount Support : Supported (Vertical Mount Kit Sold Separately)
