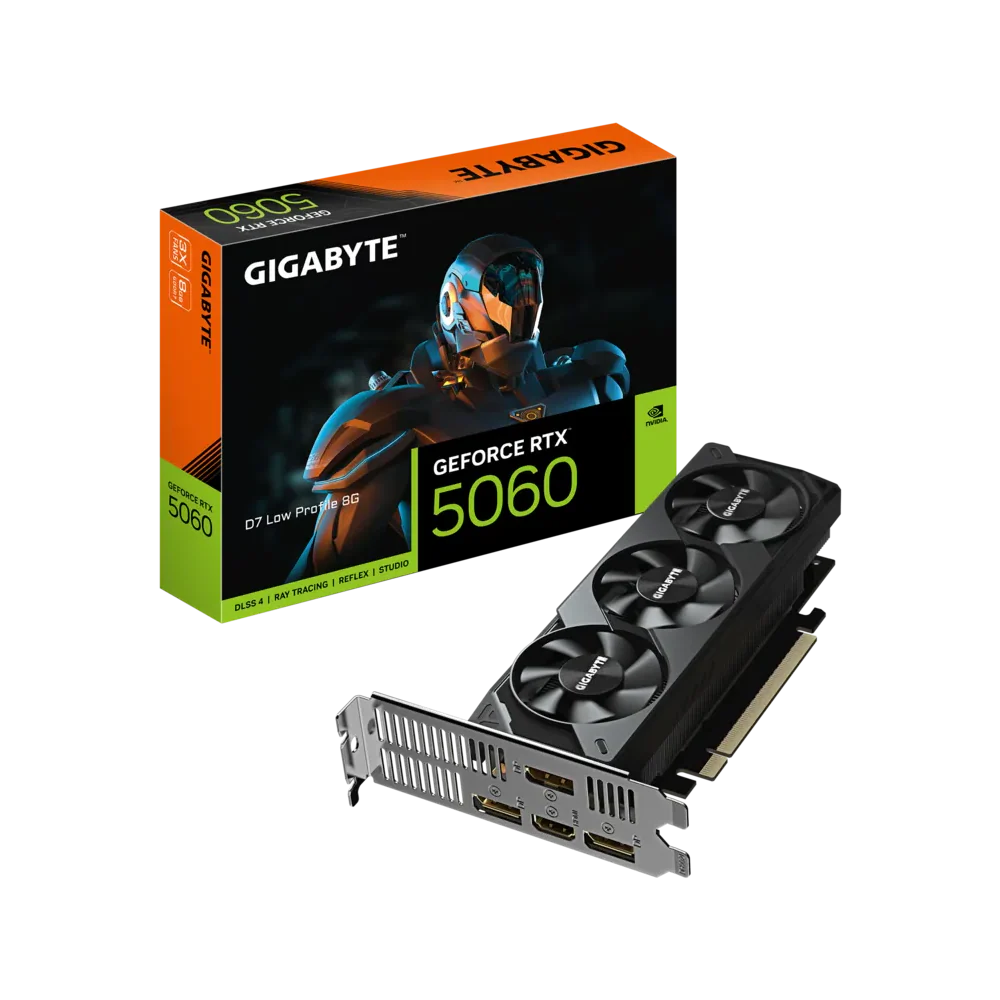

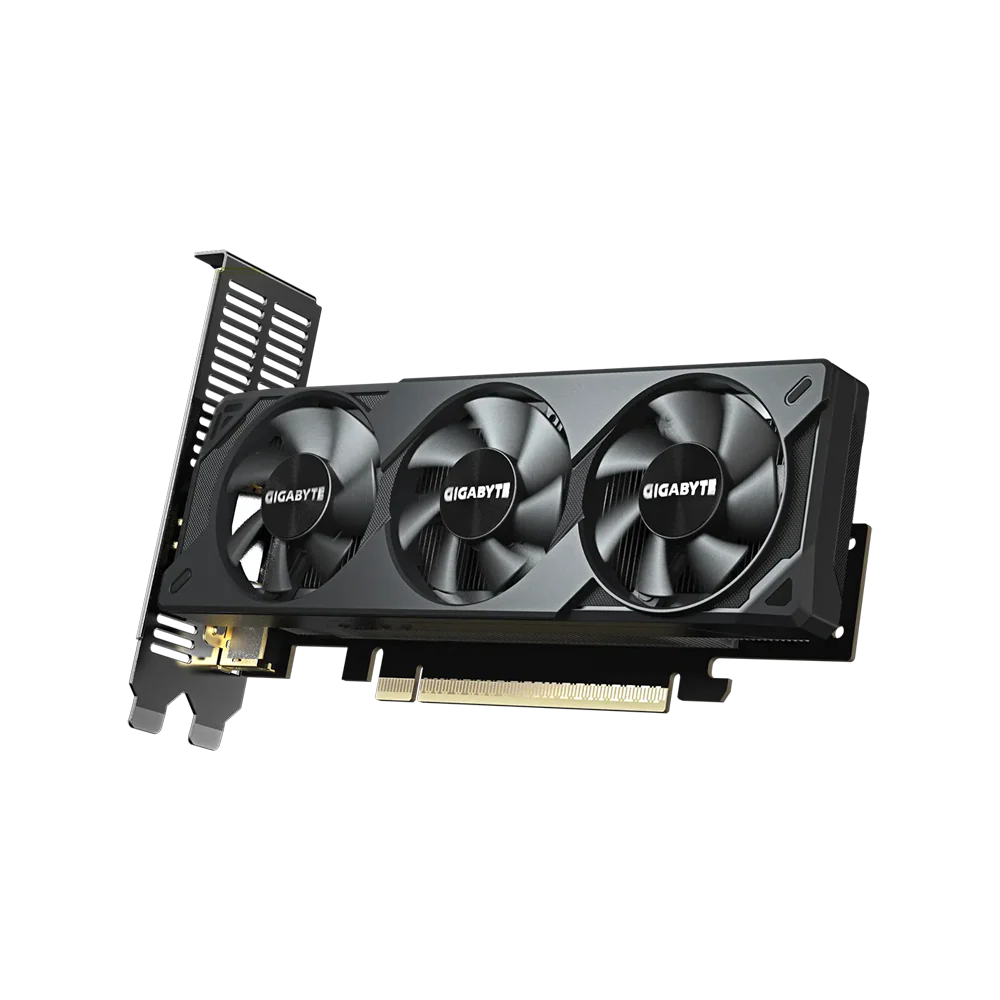

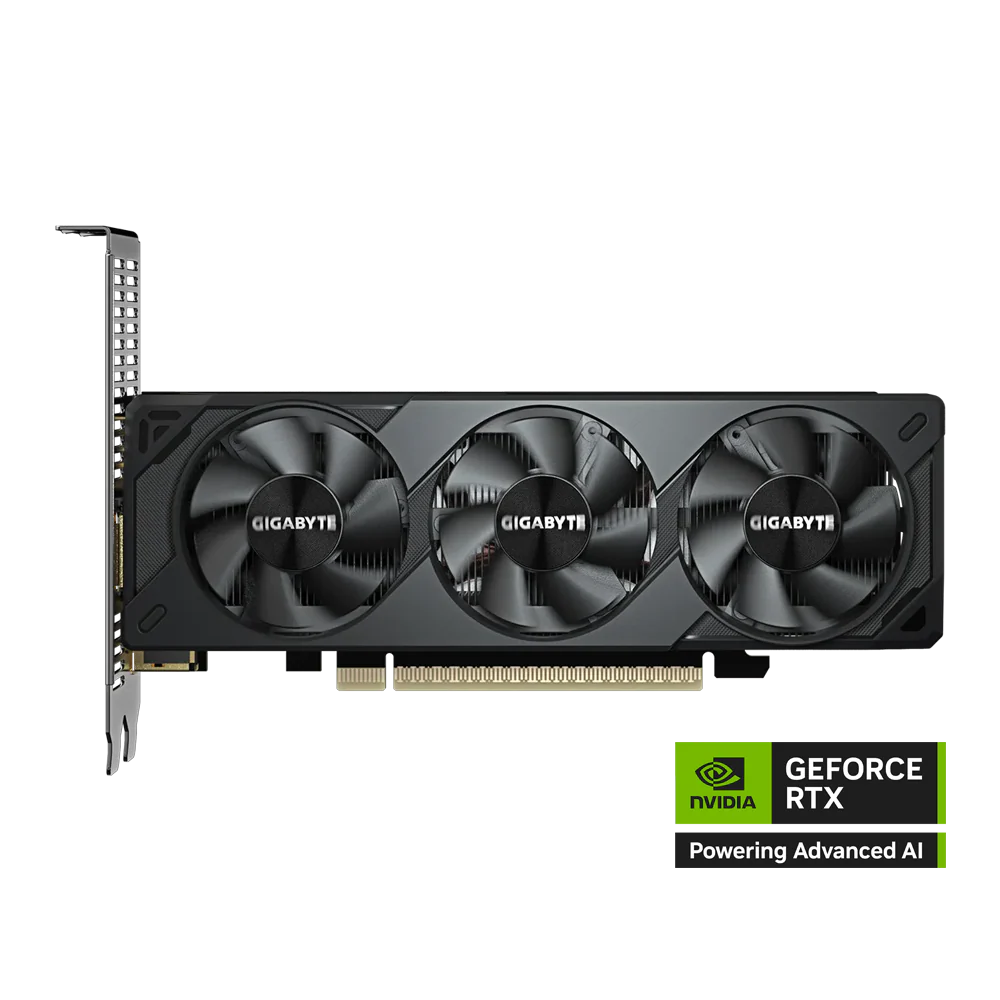

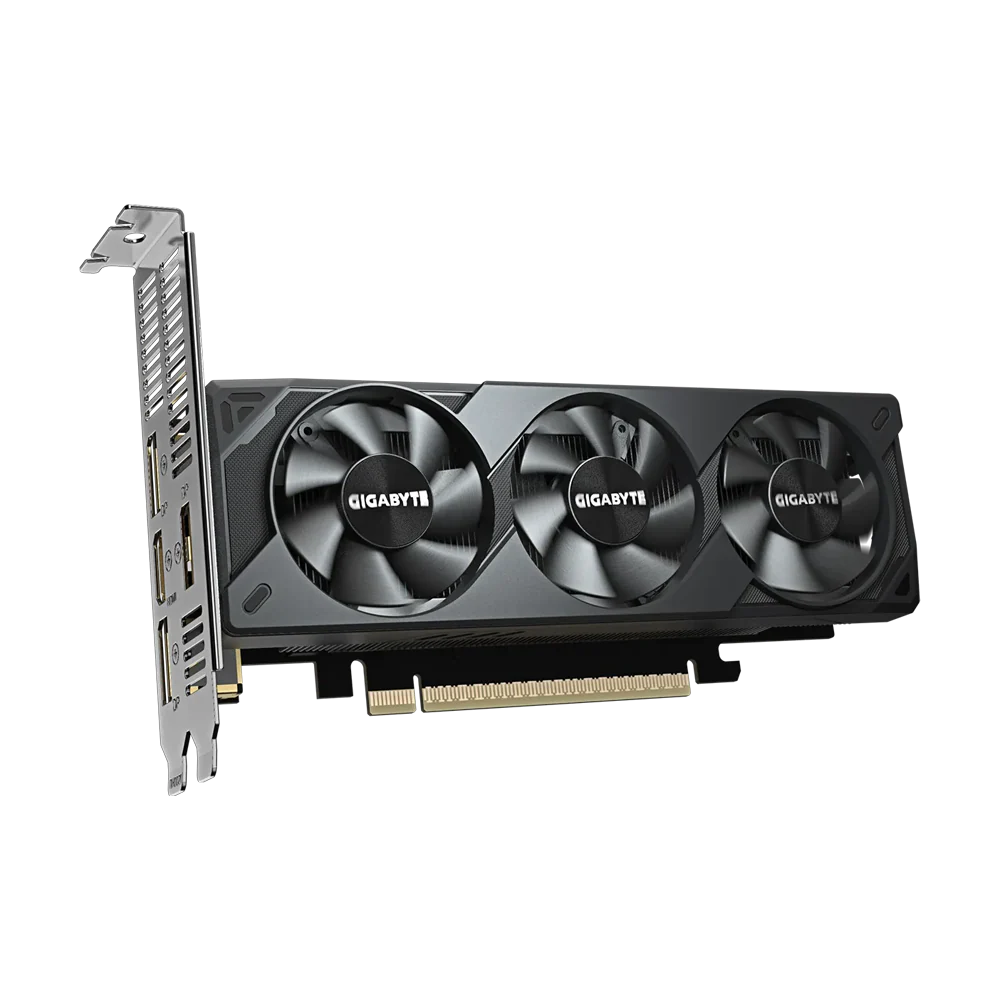

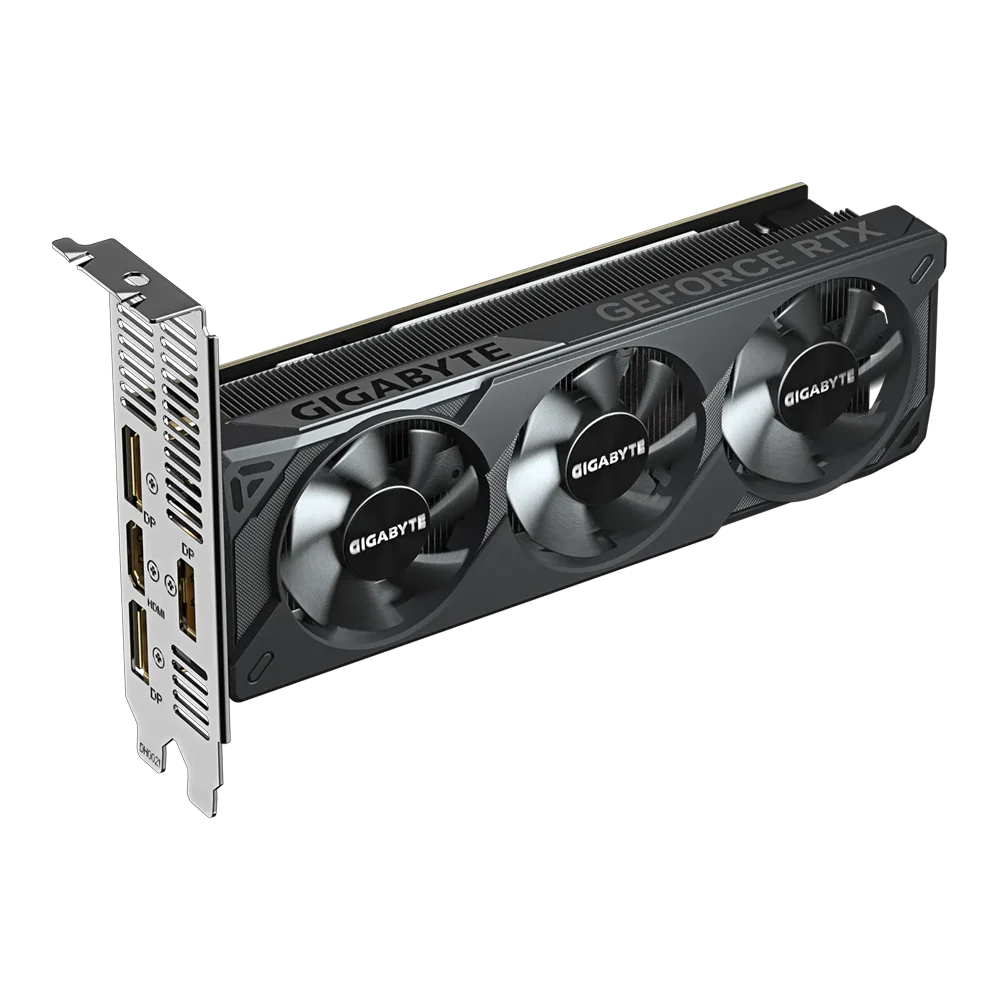

GIGABYTE Nvidia GeForce RTX 5060 D7 Low Profile 8GB Graphics Card

• Powered by the NVIDIA Blackwell architecture and DLSS 4

• Powered by GeForce RTX™ 5060

• Integrated with 8GB GDDR7 128 bit memory interface

• Low Profile Design with 182mm card length

• Server-grade Thermal conductive gel

• Graphene Nano Lubricant

• Supports up to 4 displays

• CORE CLOCK : 2497MHz

GeForce RTX 50 Series - Game Changer! The Most Advanced AI platform for Gamers, Creators and beyond. Multiply performance with NVIDIA DLSS 4.5, generate
images at unprecedented speed, and unleash your creativity with NVIDIA Studio.

GIGABYTE
CUSTOM-DESIGNED COOLING SYSTEM
GIGABYTE's custom-designed cooling system ensures efficient heat dissipation, featuring server-grade thermal conductive gel, a copper plate with direct GPU contact, and composite copper heat pipes. These elements facilitate enhanced heat transfer to the heatsink, enabling higher performance at lower temperatures.

SERVER-GRADE THERMAL CONDUCTIVE GEL
To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.

GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

COPPER PLATE & COMPOSITE COPPER HEAT PIPE
The copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

EXCELLENCE IN ESSENTIAL

LOW PROFILE DESIGN
At just 182mm in length, the card is perfect for compact builds. An additional low-profile bracket is included for seamless adaptability to different build needs.

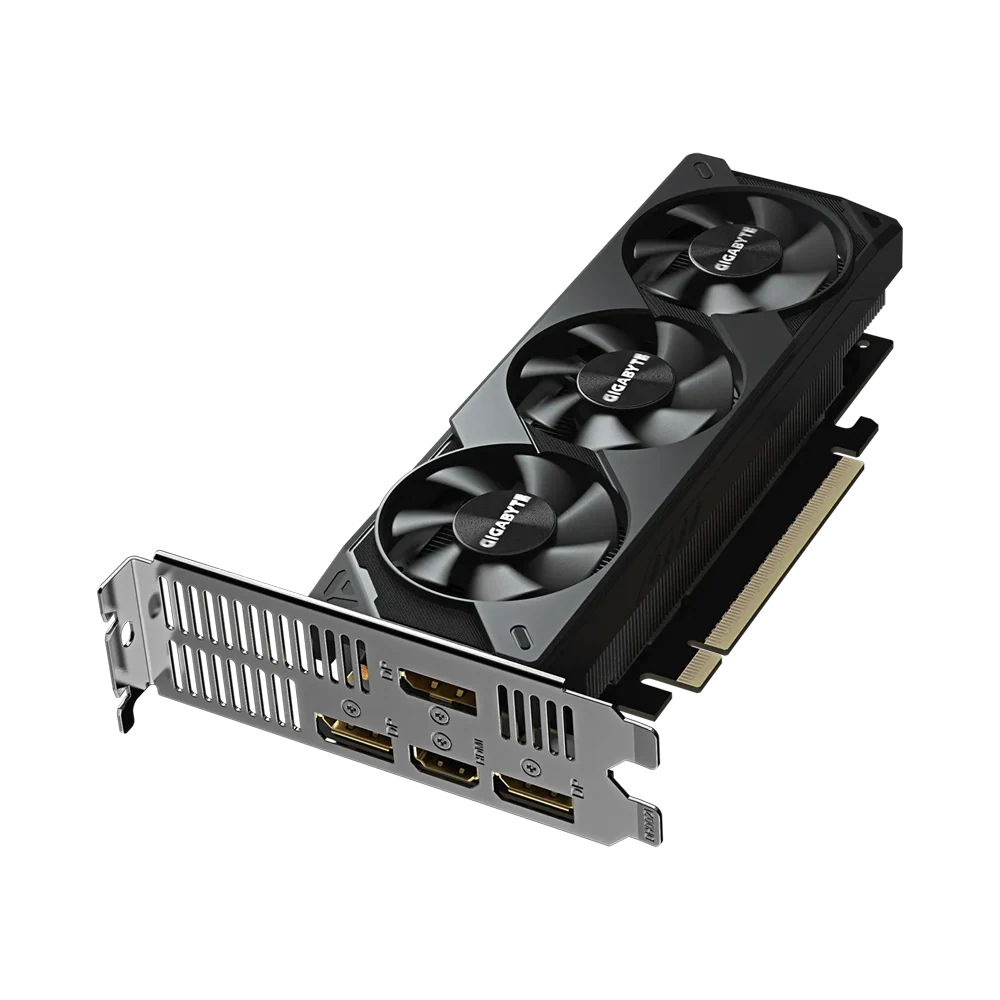

AMPLE CONNECTIVITY
Enjoy versatile display options with three DisplayPorts and one HDMI port, supporting up to four displays simultaneously. Meets the demands of multi-display setups, high-resolution applications, and delivers an ultimate gaming performance experience.

Specifications

• Graphics Processing : GeForce RTX™ 5060
• Core Clock : 2497MHz
• CUDA® Cores : 3840
• Memory Clock : 28 Gbps
• Memory Size : 8 GB
• Memory Type : GDDR7
• Memory Bus : 128 bit
• Card Bus : PCI-E 5.0
• Digital max resolution : 7680x4320
• Multi-view : 4
• Card size : L=182 W=69 H=36
• PCB Form : ATX
• DirectX : DirectX 12 API
• OpenGL : 4.6
• Recommended PSU : 550W
• Power Connectors: 8 Pin*1
• Output : DisplayPort 2.1b *2
• DisplayPort 1.4a *1
• HDMI 2.1b *1
• Accessories : 1. Quick guide
• 2. Low Profile Bracket
