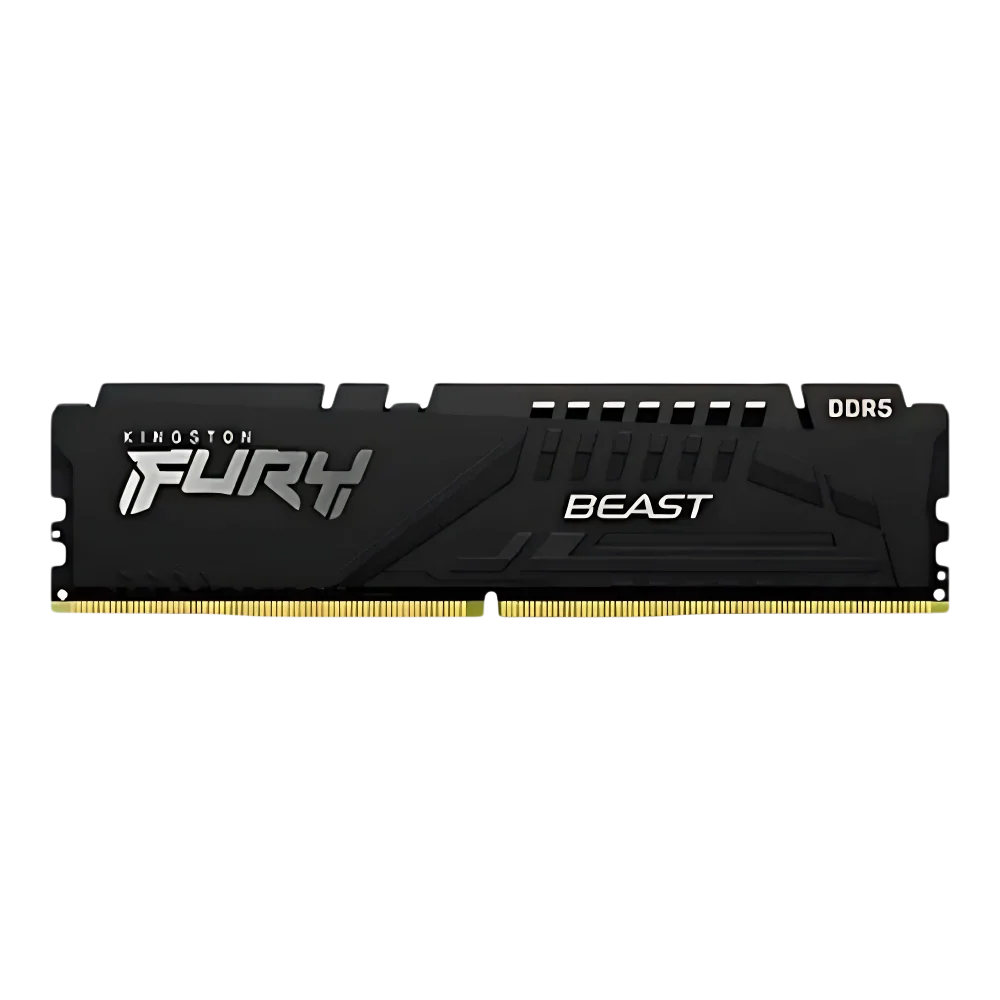

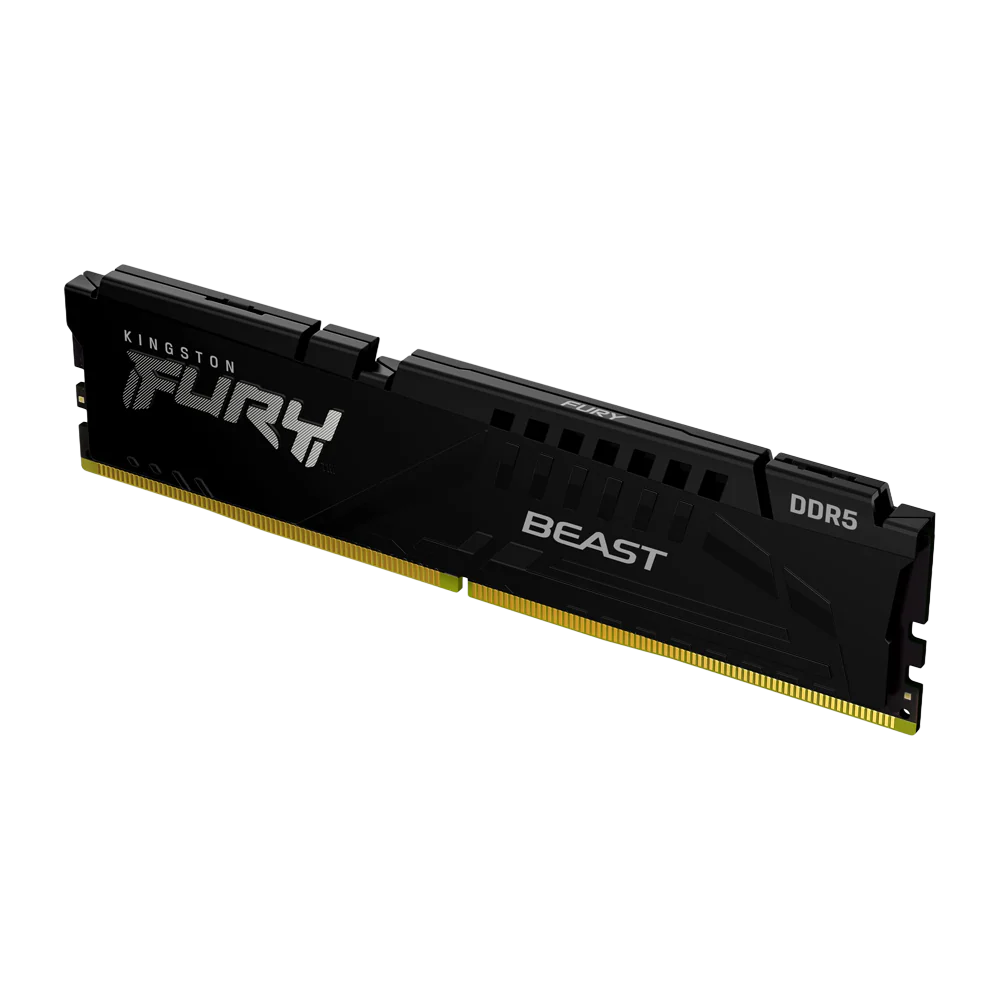

Kingston Fury Beast 16GB DDR5 5600MT/s Non ECC DIMM
Kingston Fury Beast 16GB DDR5 5600MT/s Non ECC DIMM Memory
FURY KF556C40BB-16 is a 2G x 64-bit (16GB) DDR5-5600 CL40 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on
eight 2G x 8-bit FBGA components per module. The module supports IntelĀ® Extreme Memory Profiles (IntelĀ® XMP) 3.0. Each module has been tested to run at DDR5-5600 at a low latency timing of 40-40-40 at 1.25V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications
Specifications
-
CL(IDD) : 40 cycles
-
Row Cycle Time (tRCmin) : 48ns(min.)
-
Refresh to Active/Refresh Ā
-
Command Time (tRFCmin) : 295ns(min.)
-
Row Active Time (tRASmin) : 32ns(min.)
-
UL Rating :94 V - 0
-
Operating Temperature :Ā 0o C to +85o C
-
Storage Temperature : -55o C to +100o C
Original: $238.84
-65%$238.84
$83.59Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Kingston Fury Beast 16GB DDR5 5600MT/s Non ECC DIMM Memory
FURY KF556C40BB-16 is a 2G x 64-bit (16GB) DDR5-5600 CL40 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on
eight 2G x 8-bit FBGA components per module. The module supports IntelĀ® Extreme Memory Profiles (IntelĀ® XMP) 3.0. Each module has been tested to run at DDR5-5600 at a low latency timing of 40-40-40 at 1.25V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications
Specifications
-
CL(IDD) : 40 cycles
-
Row Cycle Time (tRCmin) : 48ns(min.)
-
Refresh to Active/Refresh Ā
-
Command Time (tRFCmin) : 295ns(min.)
-
Row Active Time (tRASmin) : 32ns(min.)
-
UL Rating :94 V - 0
-
Operating Temperature :Ā 0o C to +85o C
-
Storage Temperature : -55o C to +100o C
