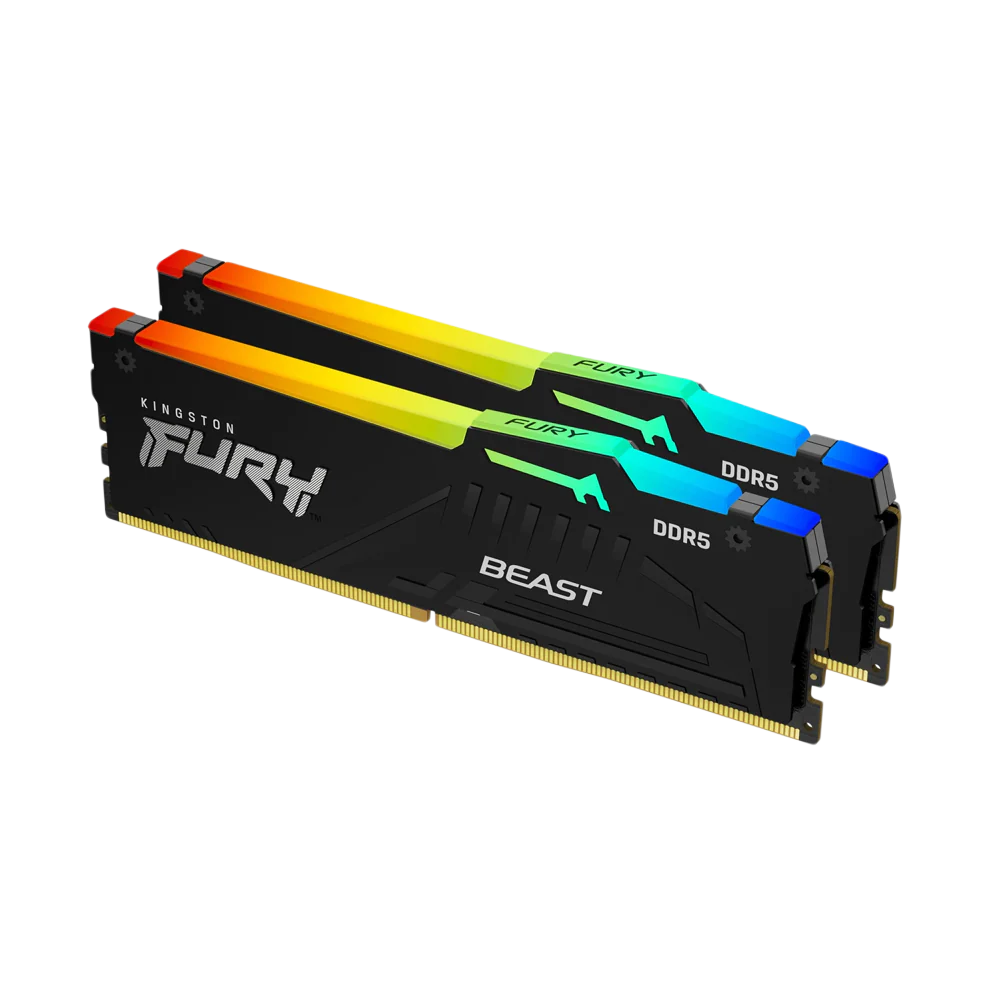

KINGSTON FURY BEAST RGB 16GB (2x8GB) DDR5 5200MT/s CL40 Memory - Black

Key Features:

• 16GB (2x8GB)

• DDR5

• 5200MT/s

• CL40

• RGB

Kingston FURY KF552C40BBAK2-16 is a kit of two 1G x 64-bit (8GB) DDR5-5200 CL40 SDRAM (Synchronous DRAM) 1Rx16, memory module, based on four 1G x 16-bit FBGA components per module.  Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Total kit capacity is 16GB.  Each module has been tested to run at DDR5-5200 at a low latency timing of 40-40-40 at 1.25V.  The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V.  Each 288-pin DIMM uses gold contact fingers.  The JEDEC standard electrical and mechanical specifications

• CL(IDD) : 40 cycles

• Row Cycle Time (tRCmin) : 48ns(min.)

• Refresh to Active/Refresh

• Command Time (tRFCmin) : 295ns(min.)

• Row Active Time (tRASmin) : 32ns(min.)

• UL Rating : 94 V - 0

• Operating Temperature : 0o C to +85o C

• Storage Temperature : -55o C to +100o C

Specifications

• Power Supply: VDD = 1.1V Typical
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• Height 1.66” (42.23mm), w/heatsink
