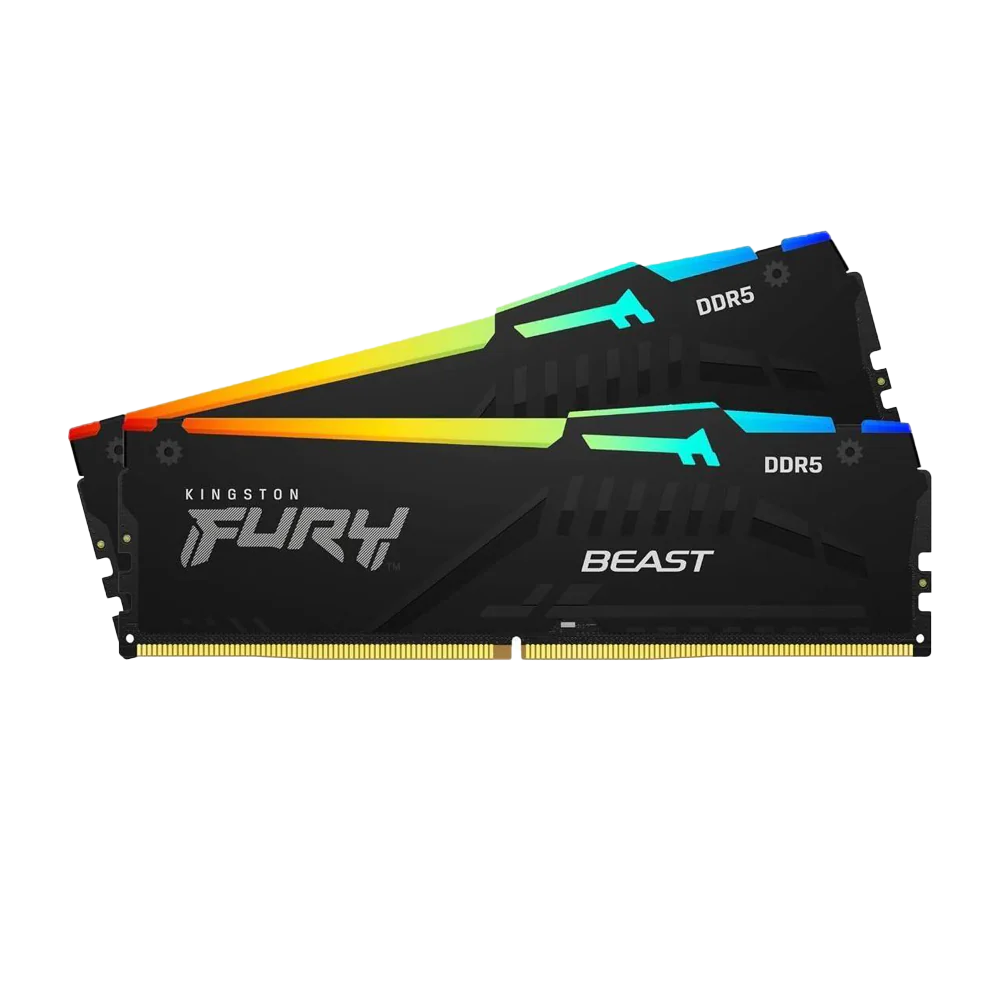

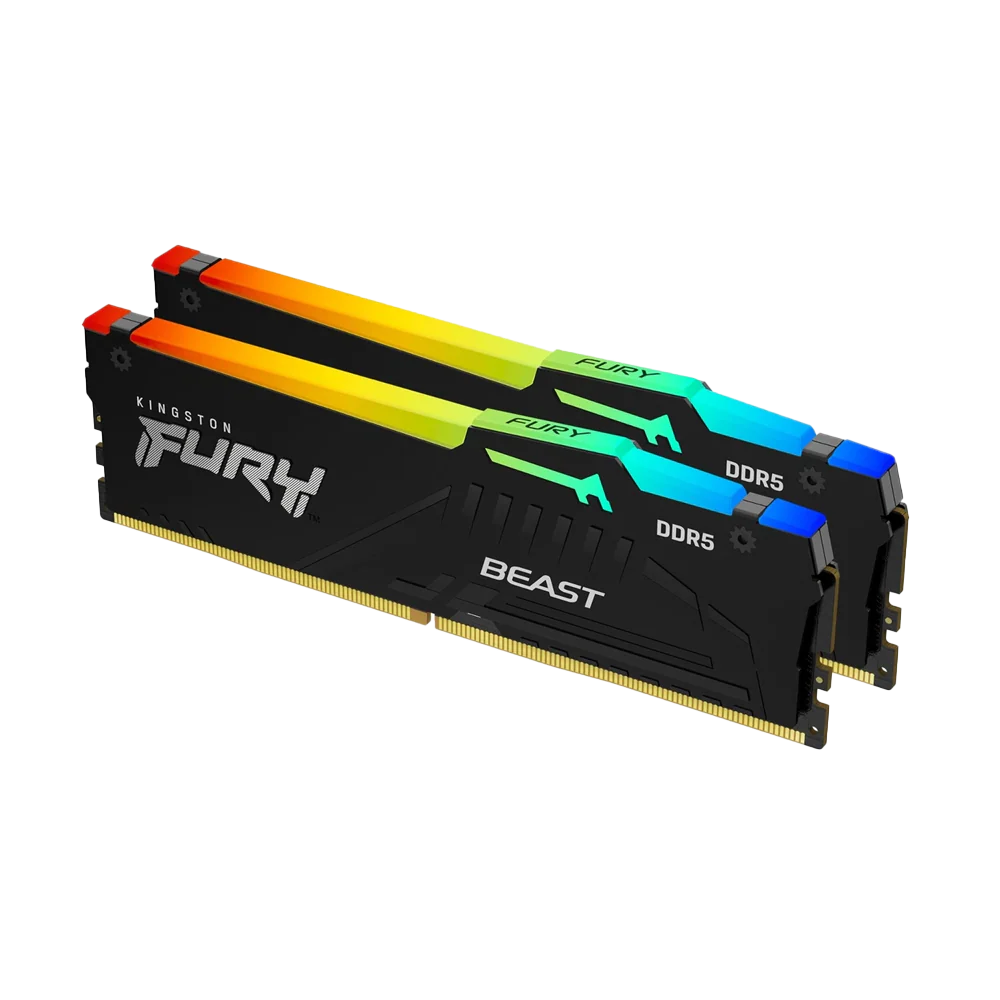

KINGSTON FURY RGB DDR5 16GB (2x8GB) 5600MHz DIMM Memory - Black
Key Features:
- 16GB (8GB 1G x 64-Bit x 2 pcs.)
- DDR5-5600
- CL40
- 288-Pin DIMM Kit
Kingston FURY KF556C40BBAK2-16 is a kit of two 1G x 64-bit (8GB) DDR5-5600 CL40 SDRAM (Synchronous DRAM) 1Rx16, memory module, based on four 1G x 16-bit FBGA components per module. Ā Each module kit supports IntelĀ® Extreme Memory Profiles (IntelĀ® XMP) 3.0. Ā Total kit capacity is 16GB. Ā Each module has been tested to run at DDR5-5600 at a low latency timing of 40-40-40 at 1.25V. Ā The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Ā Each 288-pin DIMM uses gold contact fingers.
Specifications
- Power Supply: VDD = 1.1V
- VDDQ = 1.1V Typical
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- On-Die ECC
- Height 1.66ā (42.23mm), w/heatsink
