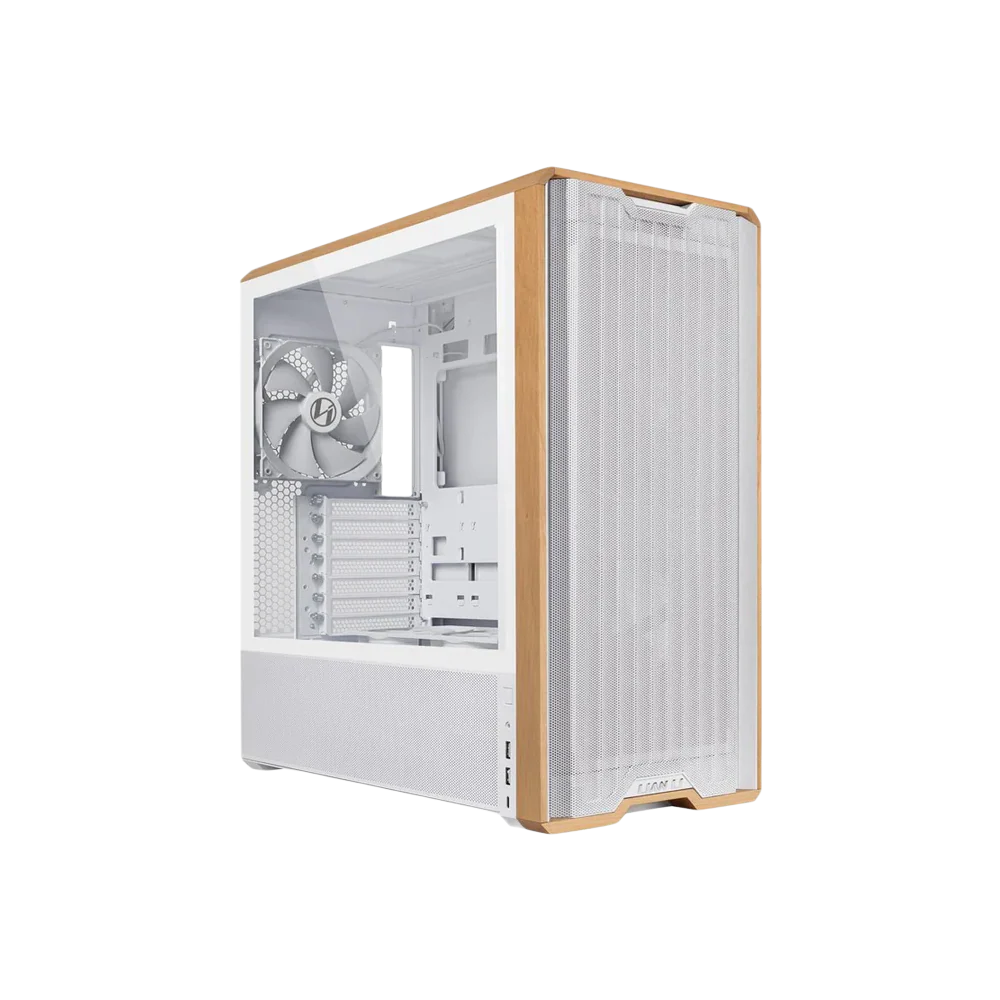

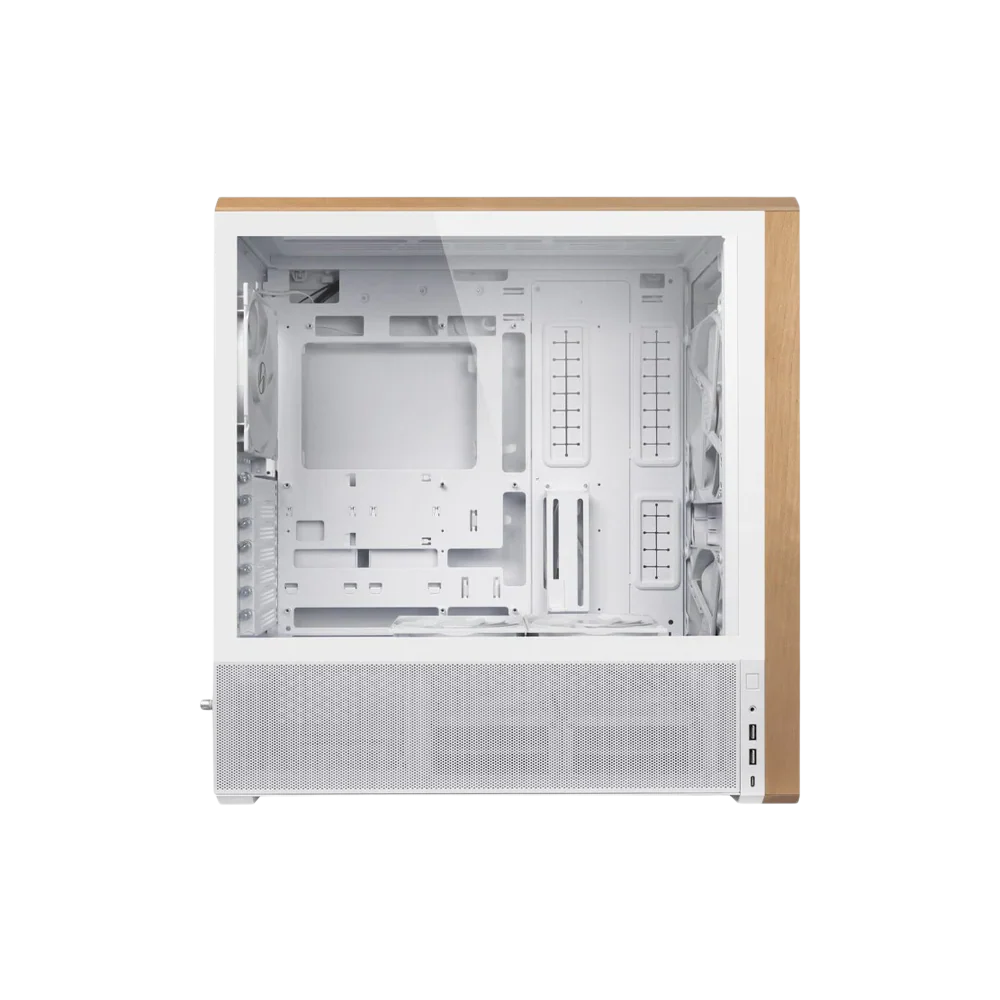

LIAN LI Lancool 217 Mid Tower Case - White

Key Features

• Mid-tower chassis designed for advanced workstations and high-performance setups
• Compatible with back-connect motherboards for ultra-clean cable routing
• Supports up to E-ATX / EEB motherboards and dual PSU mounting orientations
• Comes pre-installed with 5 high-performance fans for optimal out-of-box airflow
• Tool-less front fan mounting system for effortless installation and maintenance
• Certified with PPLP for enhanced professional use compliance

Timeless Elegance, Endless Performance
The LANCOOL 217 is a mid-tower case that combines innovative cooling design with real wood accents. It comes pre-installed with five fans, delivering optimized airflow right out of the box. A flexible PSU mounting design makes cable management easier. Available in Black with dark wood accents or White with light wood, it blends natural beauty with high-performance capability.

WHERE WOOD MEETS AIRFLOW

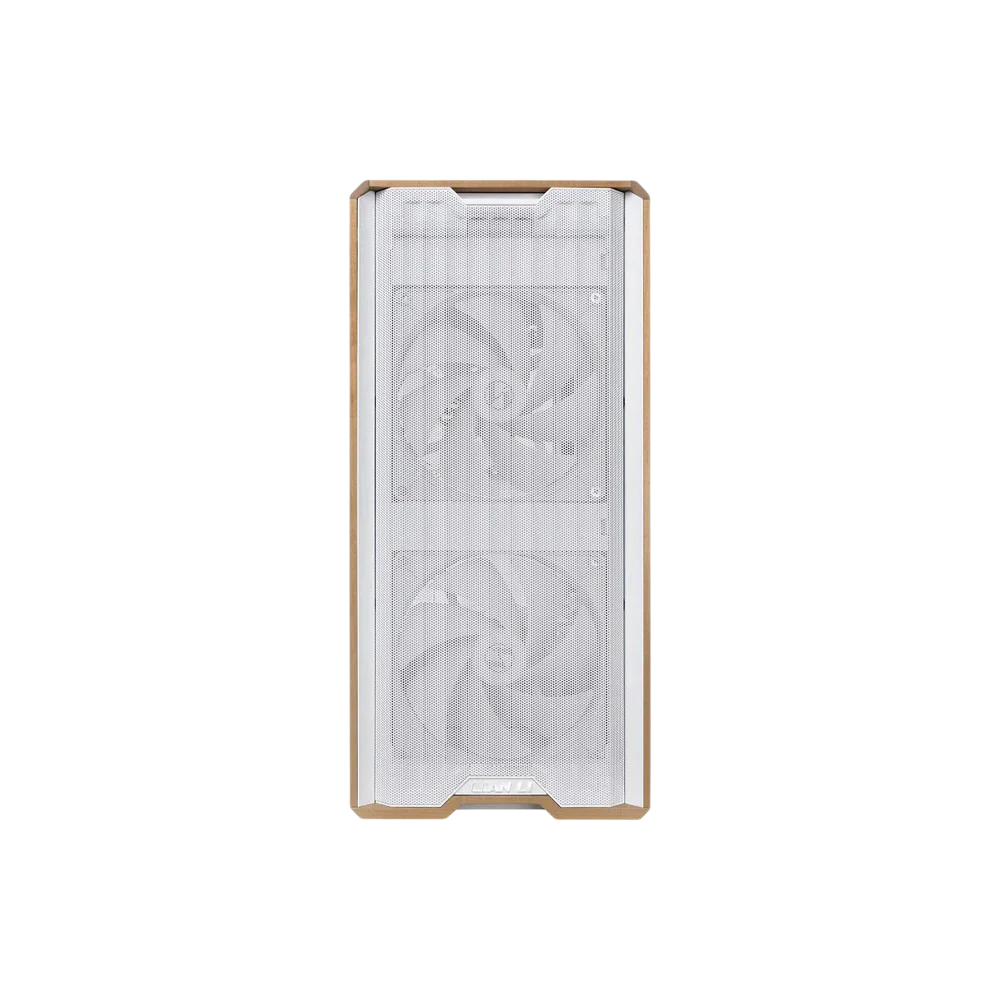

The LANCOOL 217 is thoughtfully engineered to blend natural wooden aesthetics with high-performance airflow. It features a front panel that pairs finely perforated mesh with a wooden frame to maintain an organic look while allowing for unrestricted airflow.

The black version is accented with rich walnut wood, delivering a bold and contemporary feel. The white version incorporates light birch wood, offering a sleek, minimalist aesthetic ideal for modern tech setups.

READY-TO-GO COOLING WITH
5 PRE-INSTALLED FANS
The LANCOOL 217 chassis comes equipped with high-performance fans at the front, rear, and bottom, providing powerful airflow to keep internal components running smoothly and reliably.

The front fans utilize FDB bearing for quieter operation and extended lifespan. Designed for performance, they deliver powerful airflow and can be repositioned to better target the CPU or GPU.

Above the PSU shroud, the bottom fans are specifically positioned to direct cool air toward the GPU, helping to effectively manage its temperature.

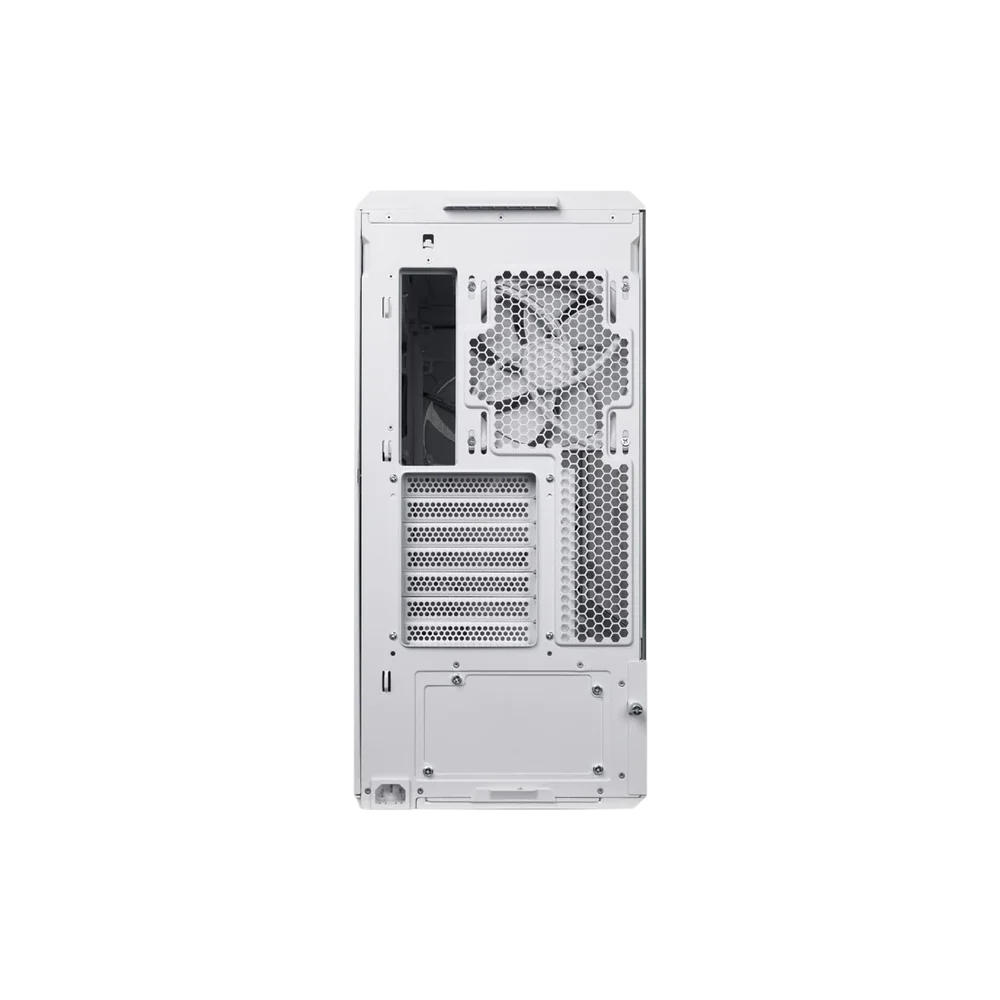

At the rear, a 140mm fan effectively removes warm air, helping to maintain balanced airflow throughout the system.

Independent testing at the PPLP Lab confirmed that the LANCOOL 217 delivers top-tier thermal performance, placing it among the highest-ranked cases in its class. Its efficient airflow design and strong out-of-the-box cooling earned it the prestigious S-Tier Case Performance Award, highlighting its exceptional capabilities in thermal management.

FLEXIBLE INSTALLATION, TOOL-LESS DESIGN
The LANCOOL 217 uses a tool-less fan mounting system with rubber pads on the front and bottom fans, allowing users to easily shift between CPU-focused and GPU-focused cooling modes.

The PCIe slot bracket can be turned 90 degrees to support vertical GPU mounting. In this setup, the bottom fan can be moved under the PSU shroud for a hidden look, giving users more flexibility when building their system.

FLEXIBLE AND EASY INSTALLATION
The LANCOOL 217 comes with screws and washers for installing 120mm fans. Users can take out the screws on the two bottom fans to swap them for different ones. The PSU shroud cover can also be removed, making room for up to three 120mm fans.

DUAL PSU MOUNTING, FLEXIBLE BUILDS
The LANCOOL 217 supports two PSU mounting ways, giving the users more options based on the PSU size, cable routing, and overall build layout. This flexible design makes it easier to set up the system, enhancing convenience and compatibility.

MOTHERBOARD COMPATIBILITY

• Supports motherboard sizes:

• EEB (width <330mm) / E-ATX (width <280mm)

• ATX/ Micro-ATX/ Mini-ITX.

• Back-connect motherboard support: ATX, Micro-ATX.

Compared to the LANCOOL 216, the LANCOOL 217 now supports back-connect motherboards. By removing the HDD cage behind the motherboard tray, it can accommodate M-ATX back-connect motherboards.

DRIVE SUPPORT

• Behind motherboard tray: 2 x 2.5″ SSDs or 1 x 2.5″ SSD (when using a rear-mounted Micro-ATX motherboard)
• HDD cage: 2 x 3.5″ HDD + 2 x 2.5″ SSD+(2 x 3.5″ HDD or 2 x 2.5″ SSD)

• PSU shroud cover: 1 x 2.5″ SSD

LARGE GPU, EXCEPTIONAL COMPATIBILITY
The LANCOOL 217 supports GPU up to 380mm in length and features an adjustable anti-sag bracket, ensuring a perfect and secure fit for GPU.

BRACKET FOR FAST AND EASY INSTALLATION
The top radiator bracket can be fully removed from the chassis, allowing users to install hardware more conveniently. When removing the bracket, the left-side frame bar is removed along with it, creating more available space for installation.

USER-FRIENDLY DESIGN
The LANCOOL 217 features two power buttons suitable for different usage. The top power button is easy to reach when the case is on the floor, and the front button works best if the case is on the desk.

ENHANCE COOLING WITH THE ANTI-PRESSURE LEAK AIRFLOW PLATES
For air cooler users, we now offer a downloadable STP file to 3D-print custom anti-pressure leak airflow plates. Designed specifically for the top fan bracket of the LANCOOL 217, these plates help contain cool air, enhancing CPU cooling efficiency.

Internal testing shows that installing the airflow plates leads to measurable improvements in thermal performance.

Specifications

• Materials : Steel, Plastic, Wood

• Side Panel : Tempered Glass

• Front I/O : 2x USB 3.0 Type-A, 1x USB 3.1 Type-C, 1x Combo Audio, 2x Power Button

• Motherboard Support : SSI-EEB, E-ATX, ATX, Micro-ATX, Mini-ITX

• Expansion Slots : 7

• Drive Bays

• Behind Motherboard: 2x 3.5" or 2x 2.5"

• Drive Cage (2x): 1x 3.5" & 1x 2.5" plus 1x 3.5" or 1x 2.5"

• PSU Shroud: 1x 2.5"

• PSU Support

  • Standard Mode: ATX (Under 220mm)

  • Rotated Mode: ATX (Under 180mm)

• Dimensions : Depth 482mm x Width 238mm x Height 503mm

• Pre-Installed Fans

  • Front: 2x 170mm Performance PWM Fans

  • Bottom (Above PSU Shroud): 2x 120mm Performance PWM Fans

  • Rear: 1x 140mm Performance PWM Fan

• Fan Support

  • Front: 2x 170mm or 3x 140mm or 3x 120mm

  • Top: 3x 120mm or 2x 140mm

  • Rear: 1x 120mm or 1x 140mm

  • Bottom (Above PSU Shroud): 3x 120mm

  • Bottom (Below PSU Shroud): 2x 120mm

• Radiator Support : Top: 360mm / 280mm / 240mm

• Clearance

  • Motherboard Tray Max Width: 330mm

  • CPU Cooler Height Limitation: 180mm

  • GPU Length Limitation: 380mm

• Cable Management : Yes

• Radiator Thickness : 85mm Max
