LIAN LI UNI FAN TL-LCD Wireless 120mm ARGB Case Fans with 1.6 Inch LCD Screen 3 Pack - Black
Key Features:
- L-Wireless Sync supported (required for use)
- UNIFAN interlocking system for streamlined cable management
- Available in two versions: LED and LCD (mixable in a single cluster)
- Two light zones for an enhanced visual experience
- Full software control for fan speed, lighting effects, and LCD screen display via L-Connect 3
- Noise-optimized and performance-oriented fan.
- LCP (liquid crystal polymer) fan blades are used for tight tolerance.
The UNI FAN TL Wireless and TL LCD Wireless feature LIAN LI’s innovative wireless sync technology, utilizing a 2.4GHz wireless signal to control lighting effects and fan speed to further improve the PC building experience while delivering efficient cooling, dazzling lighting, and quiet operation.
Elevate the PC setup with the UNI FAN TL wireless LCD and non-LCD version. Two sizes: 120mm and 140mm fans are available in black and white, with options for standard and reverse blade configurations meeting all kinds of needs.
WIRELESS TRANSMISSION, EASY INSTALLATION
By adopting 2.4GHz wireless technology, the UNI FAN TL Wireless Series eliminates the need for traditional hub connections, significantly simplifying the installation process and enhancing user experience.
INNOVATIVE L-WIRELESS CONTROLLER
Instead of using the traditional connection method, the L-Wireless Sync Controller controls both lighting and fan speeds without connecting the cable to the controller.
The fans can be powered via a 4-PIN fan header on the motherboard or a SATA power cable.
For the LCD versions, a USB 2.0 9-PIN cable connection to the motherboard is required to set the LCD screen.
The LCD and non-LCD versions use different receivers. For mixed clusters, use the LCD version receiver.
Each fan group requires connection to either a 12V PWM header or a 1-to-3 SATA splitter cable.
- UNI FAN TL Wireless: PWM cable powers the LED and motor.
- UNI FAN TL LCD Wireless: PWM cable powers the LED and motor; USB cable transmits LCD signals and provides LCD power.
The cable length can be shortened with the organizer on the receiver.
The transmission logic between the USB port and the LCD has been optimized, enabling the use of an additional USB splitter cable to the USB 2.0 or 3.0 port on the motherboard:
- USB splitter cable without SATA for additional power (e.g., LIAN LI USB 2.0 1-to-3 HUB): Supports up to 6 TL LCD wireless fans.
- USB splitter cable with SATA for additional power (e.g., LIAN LI Edge hub): Supports up to 9 TL LCD wireless fans.
- Furthermore, a single motherboard can support up to 20 UNI FAN TL LCD wireless fans.
ONE CONTROLLER FOR ALL
The L-Wireless Controller supports UNI FAN TL Wireless, UNI FAN SL Wireless, Strimer Wireless, and more future products.
The L-Wireless Controller can transmit signals to up to 10 channels.
Each group of wireless fans occupies one channel, while each Strimer Wireless uses an additional channel.
When all 10 channels are connected to the UNI FAN TL (non-LCD) wireless, the L-Wireless Controller can manage up to 40 fans at a time.
In the future, the L-Wireless Controller will also be compatible with more LIAN LI wireless devices. With this controller, you can create a stunning and streamlined LIAN LI ecosystem that combines beauty and simplicity!
PERSONALIZED REMIX, STYLE ON DISPLAY
UNI FAN TL Wireless and TL LCD wireless now can be mix-matched into a group, offering versatile configurations and empowering creativity.

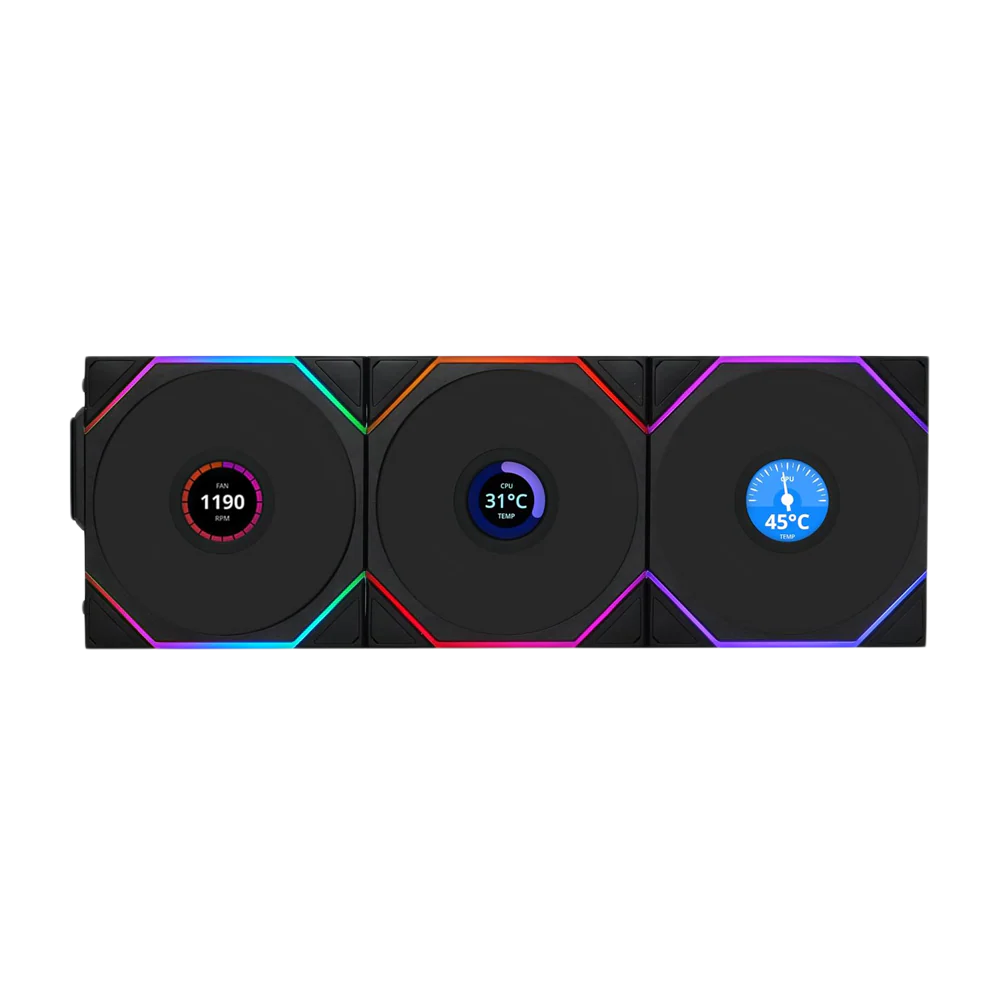

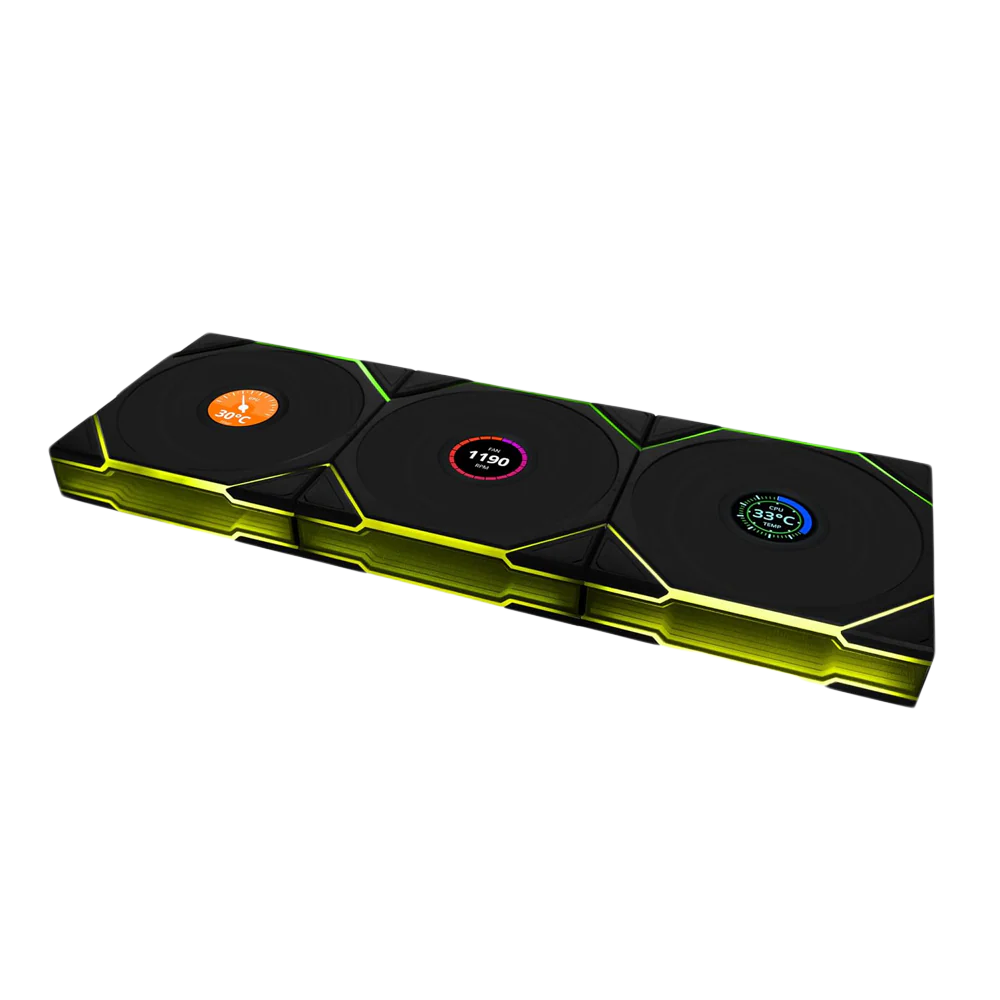

PRACTICAL AND STYLISH LCD SCREEN
The UNI FAN TL LCD Wireless carries forward the legacy of the world’s first LCD-equipped fan. It features a 1.6” circular LCD screen with 60Hz refresh rate (upgraded from 30Hz) that integrates seamlessly with LIAN LI’s L-Connect 3 software, offering exceptional customizability.
- 1.6'' LCD
- 60HZ Refresh Rate
- 400x400 resolution
- 500 nits brightness
- sRGB 24-bit
- IPS TYPE DISPLAY
PERFORMANCE DETAIL AT A GLANCE
Monitor CPU and GPU temperature and load with new built-in animated hardware sensors displayed directly on the screen.For clusters of 3 LCD fans, multiple data points can be displayed simultaneously.
UPLOAD YOUR STYLE
Achieve a completely personalized system style by uploading MP4/GIF/JPG/PNG files to customize the LCD screen.
SEAMLESS SOFTWARE
Able to set different fan speeds for each fan cluster to optimize different scenarios of use providing flexibility for radiator or case fan needs with L-Connect 3.
Specifications
⦁ MODEL : 12TLLCD1W3B
⦁ COLOR : BLACK
⦁ NUMBER OF FANS : 3
⦁ CONTROLLER : Yes No
⦁ CONNECTOR TYPE : 4-PIN PWM + 9-PIN USB x1,
⦁ 3-12V PWM to SATA x1 : 4-PIN PWM + 9-PIN USB x1
⦁ FAN DIMENSION : 120x124x28mm
⦁ FAN SPEED : 0,350~1900 RPM
⦁ MAX. AIR PRESSURE : 2.9 mmH2O (Maximum)
⦁ MAX. AIRFLOW : 62 CFM (Maximum)
⦁ ACOUSTIC NOISE : 27 dBA (Maximum)
⦁ INPUT POWER : 7.08W
⦁ MATERIAL : PBT&PA66
⦁ BEARING TYPE : Fluid Dynamic Bearing (FDB)
⦁ OPERATE VOLTAGE : DC12V & 5V
