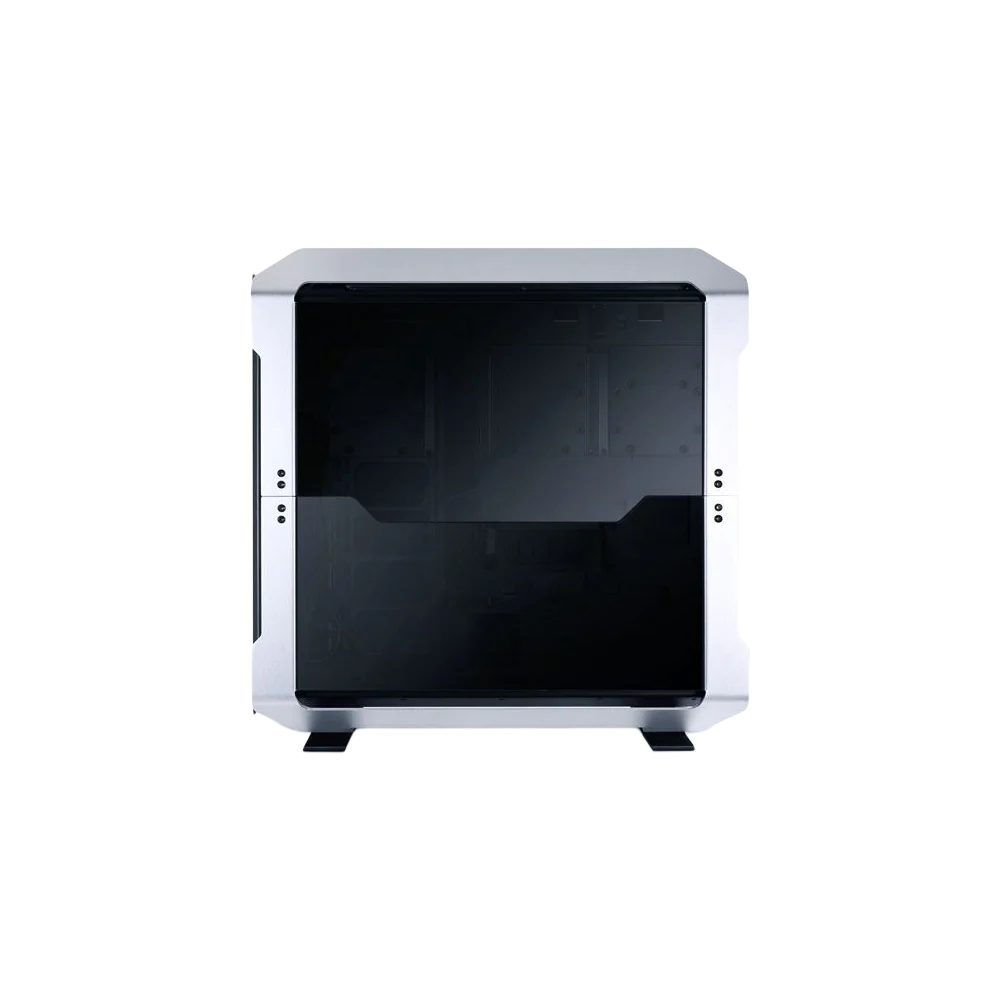

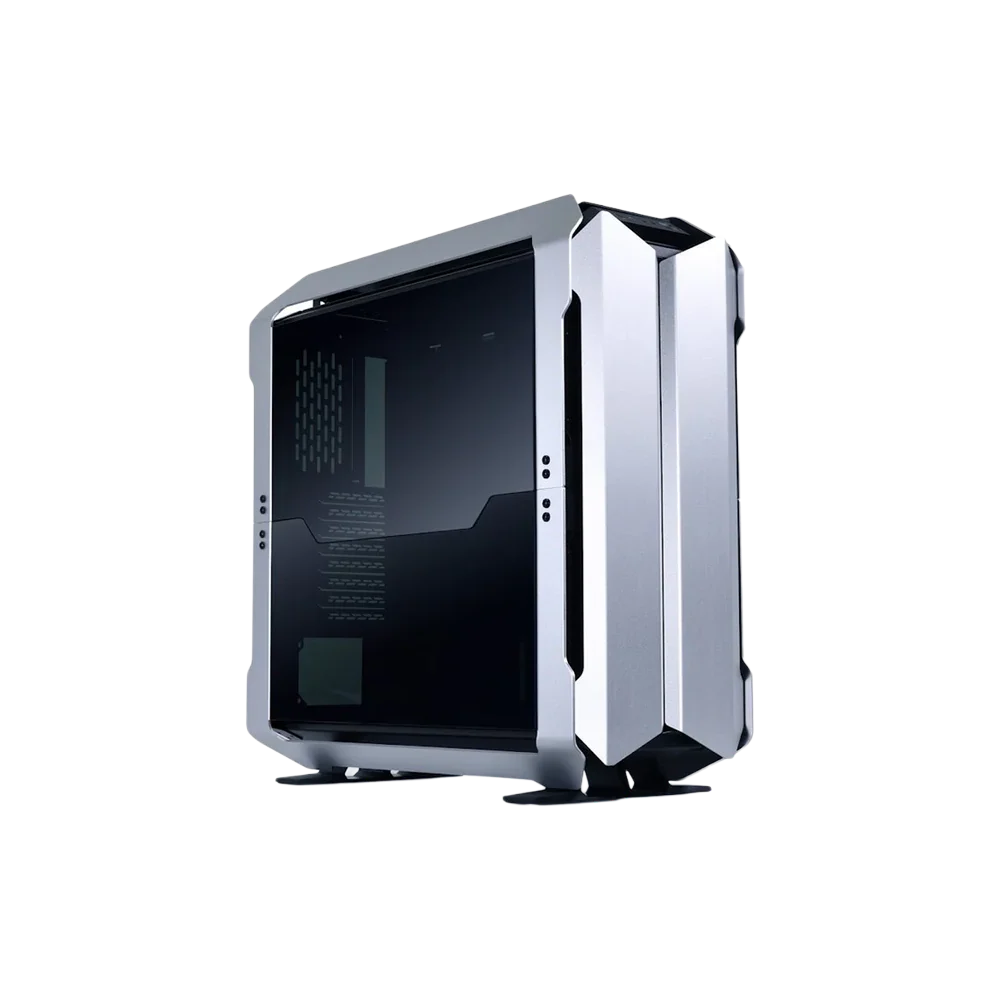

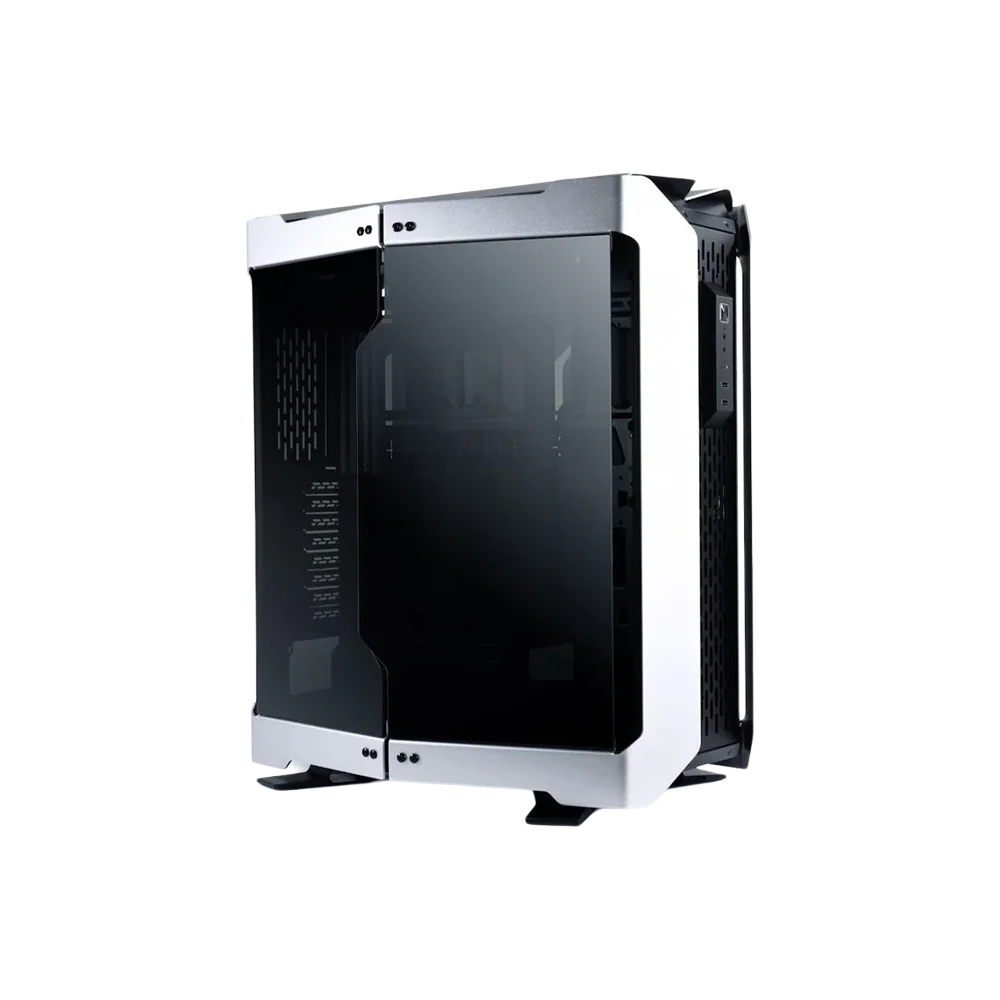

LIAN LITR-01 ODDSSEY X Full Tower Case - Silver

Key Features

• Sandblasted anodized finish aluminum full tower chassis
• Three modes: Dynamic/ Dynamic-R (Rotate)/ Performance
• Open airflow design with dual-side folding tempered glass panels
• Supports up to EEB/E-ATX motherboard with 8 expansion slots
• Ample water-cooling mounting space: Support up to 480mm radiator, includes water pump mounting bracket
• Cable management at ease

2 Styles with 3 Modes of Your Choice

ODYSSEY X enables PC enthusiasts to transform this full tower case into the mode they prefer. ODYSSEY X is a high-quality aluminum chassis that established a unique look for performance-oriented enthusiasts with an open airflow design and spacious main chamber for large components.

Premium Aluminum Craftsmanship

Each bracket is sturdily designed with high-end materials. Two optional styles can be achieved by mounting the aluminum wings differently at the front panel of the Dynamic and Dynamic R (Rotate) mode, revealing or concealing the interior components.

Optimized Cable Management and Ample Drive Mounting Space

With rubber grommets covering the cable pass-through holes and the presence of the 5 cable channels equipped with Velcro straps, routing cables in the ODYSSEY X is an easy job. Moreover, the Dynamic mode top cover is converted into a cable cover in Performance mode, enhancing the look of the build.

Collaboration with DER8AUER

Like the O11 Dynamic series, LIAN LI consulted with DER8AUER to review the design of the ODYSSEY X, a world-renowned German overclocking, water cooling, and gaming evangelist.

Specifications

• Dimensions

  • DIMENSIONS Dynamic/Dynamic-R (Rotate)

    • (D) 575.5mm x (W) 234mm x (H) 558.5mm

  • Performance

    • (D) 537.1mm x (W) 368.6mm x (H) 596.7mm
• Materials

  • Aluminum

  • Steel

  • 4.0mm Black tempered glass (both sides)
• Motherboard Support : EEB/E-ATX/ATX/Micro-ATX/Mini-ITX
• Fan Support
  • Dynamic
    • Front：3 x 120mm or 2 x 140mm
    • Top：3 x 120mm or 2 x 140mm
    • Side：3 x 120mm or 2 x 140mm
  • Dynamic-R (Rotate)
    • Front：3 x 120mm or 2 x 140mm
    • Base：4 x 120mm or 3 x 140mm
  • Performance
    • Front：4 x 120mm or 3 x 140mm
    • Top：3 x 120mm or 2 x 140mm
  • RADIATOR SUPPORT Dynamic
    • Front：1 x 360/280/240mm
    • Side：1 x 360/280/240mm
  • Dynamic-R (Rotate)
    • Front：1 x 360/280/240mm
    • Base：1 x 480/420/360/280/240mm
  • Performance
    • Front：1 x 480/420/360/280/240mm
    • Top：1 x 360/280/240mm
• Psu Support Length : Max 280mm
• Gpu Length Clearance : Max 423mm
• Cpu Cooler Height Clearance : Max 167mm
• Drive : 3 X 3.5″ HDD or 3 X 2.5″ SSD
• Expansion Slot : 8
• I/O Ports : 2 X USB 3.0, 1 X USB 3.1 TYPE-C, 1 X HD AUDIO
