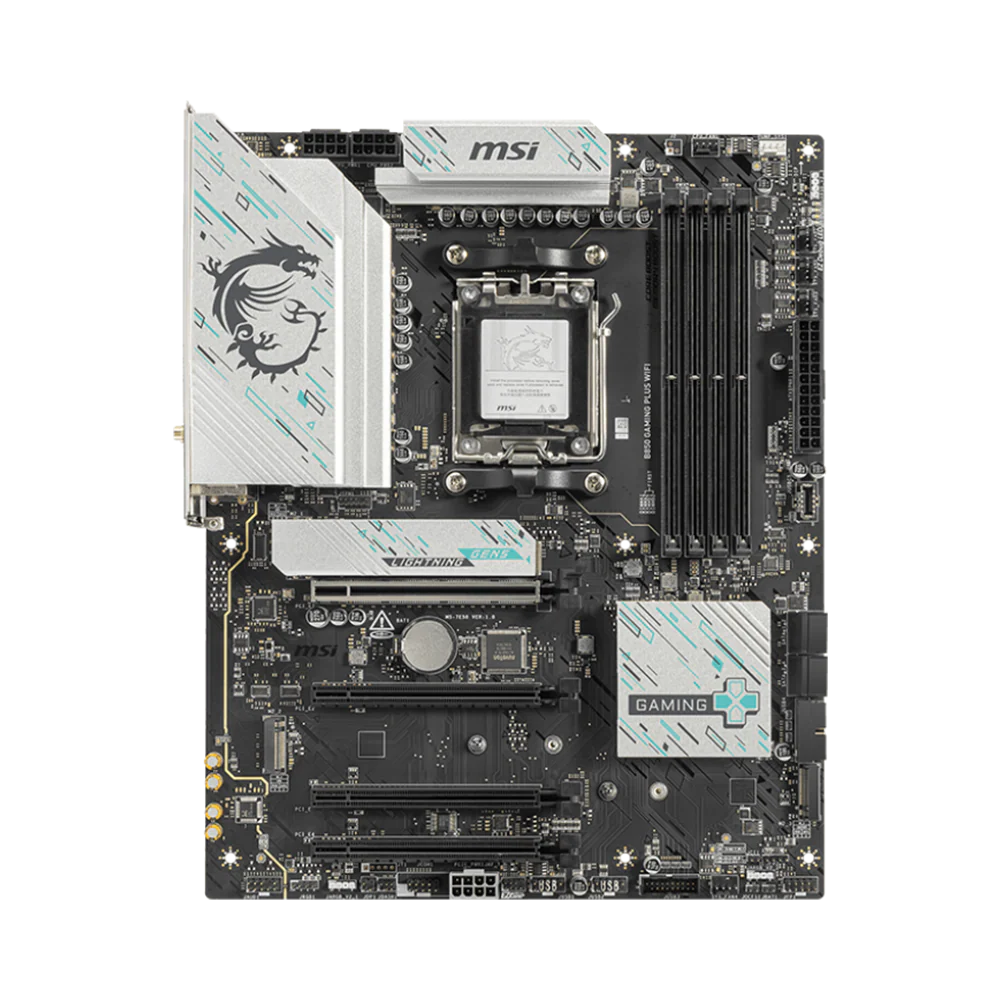

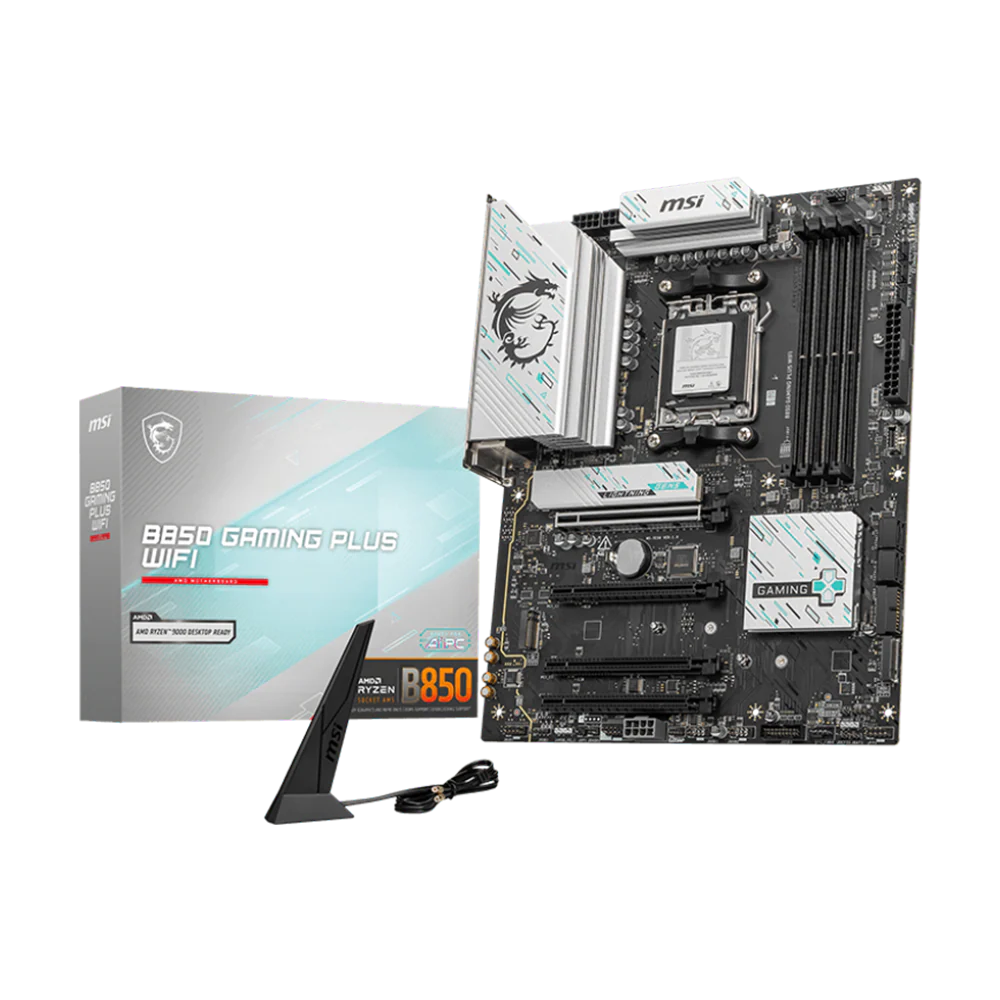

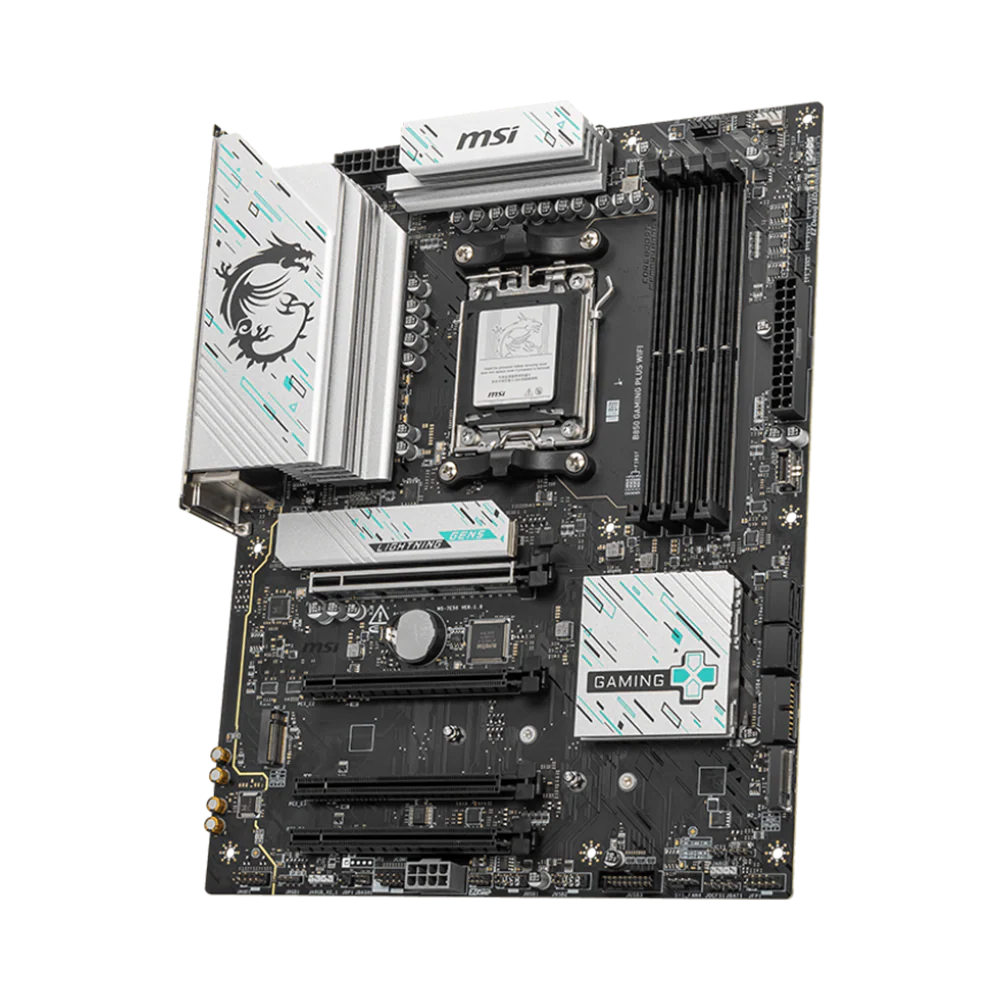

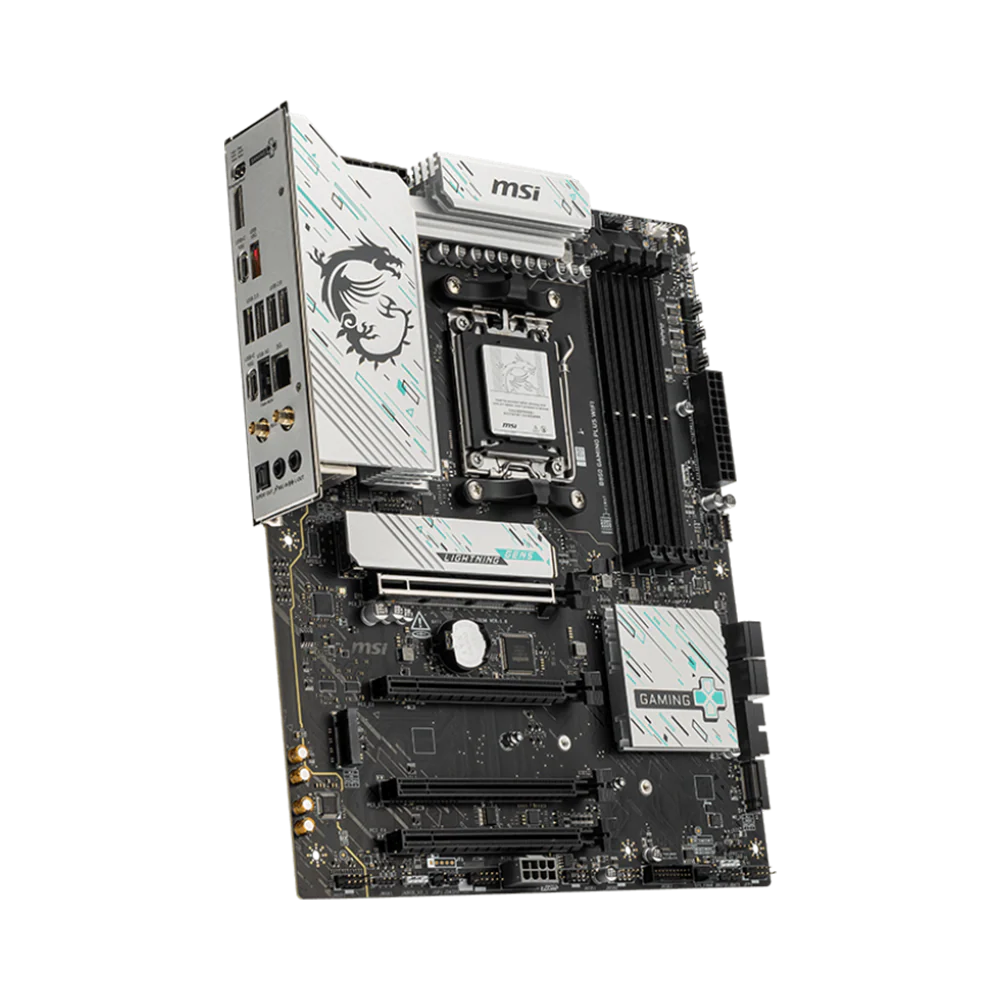

MSI B850 GAMING PLUS WIFI DDR5 Motherboard - Black

Key Features:

• Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
• Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
• Ultra Performance: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
• Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
• High-speed Connectivity: 5G LAN with Full-speed Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
• Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, Front USB Type-C
• EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
• Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience

The B850 GAMING PLUS WIFI is crafted to offer extensive connectivity, versatile tools, and a premium Wi-Fi solution for gamers seeking a comprehensive experience. Featuring full-speed Wi-Fi 7, 5G LAN, PCIe 5.0 solution, Supplemental PCIe Power and exclusive EZ DIY features, it is ready for 24/7 non-stop gaming optimized for AMD Ryzen™ 9000 series processors.

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

AI Engine
provides several categories for you to sync the applications you want to perform and automatically optimizing them to create a comfortable environment.

AI LAN MANAGER
optimizes networking performance and minimizes latency, providing a seamless online experience.

Frozr AI Cooling
automatically adjusts fan duty to make sure the system stays in cool, stable and high performance.

AI Boost
is an MSI exclusive feature. It overclocks NPU to improve higher AI performance.

12+2+1 Duet Rail Power System
Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, the B850 GAMING PLUS WIFI is ready to sustain heavy gaming loadings.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.

Splash on some color and vibrant RGB lighting effects using Mystic Light utility of MSI Center, which has million colors and fancy LED effects. Enjoy the full control and creativity of your PC's lighting with one software.

MSI’s newly designed CLICK BIOS X offers an aesthetically pleasing and user-friendly experience. The new design ensures that users of all experience levels can quickly access and adjust system configurations with ease.

MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.

Specifications

• Chipset   : AMD B850
  CPU  :  Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
  Socket AM5
  Memory  :  4x DDR5 UDIMM, Maximum Memory Capacity 256GB
  Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
  Ryzen™ 9000 Series Processors max. overclocking frequency:
  • 1DPC 1R Max speed up to 8200+ MT/s
  • 1DPC 2R Max speed up to 6400+ MT/s
  • 2DPC 1R Max speed up to 6400+ MT/s
  • 2DPC 2R Max speed up to 6000+ MT/s
• Supports AMD POR Speed and JEDEC Speed
  Supports Memory Overclocking and AMD EXPOTM
  Supports Dual-Channel mode
  Supports Non-ECC, Un-buffered memory
  Supports CUDIMM, Clock Driver bypass mode only*
• * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
  • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page
  Onboard Graphics  :  1x DisplayPort
  Support DisplayPort 1.2, maximum resolution of 4K 60Hz*
  *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
  Slot  :  4x PCI-E x16 slot
  PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
  PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
  PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
  PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
• PCI_E1 slot
  • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
  • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
  • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
• * PCI_E2, PCI_E3 & PCI_E4 share the bandwidth, PCI_E3 slot will run at x2 speed when installing devices in the PCI_E2 or PCI_E4 slot.
  Audio  : Realtek® ALC897
  7.1-Channel High Definition Audio
  Storage   : 3x M.2
  M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
  M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
  M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
  4x SATA 6G
• M2_1 slot
  • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
  • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
• *Please refer to the manual for M.2 SSD heatsink restrictions.
  RAID  :  Supports RAID 0 and RAID 1 for SATA storage devices
  Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
  USB  :  4x USB 2.0 (Rear)
  4x USB 2.0 (Front)
  1x USB 5Gbps Type A (Rear)
  4x USB 5Gbps Type A (Front)
  1x USB 5Gbps Type C (Front)
  1x USB 10Gbps Type A (Rear)
  2x USB 10Gbps Type C (Rear)
  LAN  :  Realtek® 8126VB 5G LAN
  Internal IO   : 1x Power Connector(ATX_PWR)
  2x Power Connector(CPU_PWR)
  1x Power Connector(PCIE_PWR 8pin)
  1x CPU Fan
  1x Combo Fan (Pump_Sys Fan)
  4x System Fan
  1x EZ Conn-header (JAF_1)
  2x Front Panel (JFP)
  1x Chassis Intrusion (JCI)
  1x Front Audio (JAUD)
  1x Com Port (JCOM)
  1x Tuning Controller connector(JDASH)
  3x Addressable V2 RGB LED connector (JARGB_V2)
  1x RGB LED connector(JRGB)
  1x TPM pin header(Support TPM 2.0)
  4x USB 2.0 ports
  4x USB 5Gbps Type A ports
  1x USB 5Gbps Type C ports
  WIRELESS LAN & BLUETOOTH   : Wi-Fi 7 Solution
  The Wireless module is pre-installed in the M.2 (Key-E) slot
  Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
  Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
• Supports Bluetooth® 5.4**, MLO, 4KQAM
• * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
  ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
  LED FEATURE  :  4x EZ Debug LED
  BACK PANEL PORTS
  Clear CMOS Button
  USB 10Gbps (Type-A)
  USB 2.0
  5G LAN
  Wi-Fi / Bluetooth
  Audio connectors
  Flash BIOS Button
  DisplayPort
  USB 10Gbps (Type-C)
  USB 10Gbps (Type-C)
  USB 5Gbps (Type-A)
  S/PDIF-OUT
• OPERATING SYSTEM  :  Support for Windows® 11 64-bit
  BOX CONTENT
  PCB Info   :  ATX
  243.84mmx304.8mm
