MSI Nvidia GeForce RTX 5060 Ti 8GB VENTUS 3X OC Graphics Card
Key Features:
- Powered by the NVIDIA Blackwell architecture and DLSS 4
-
Core Clocks:
Extreme Performance: 2617 MHz (MSI Center)
Boost: 2602 MHz - TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow.
- Solid Baseplate: A solid baseplate transfers heat from the GPU to all heat pipes for better cooling.
- Heat Pipes designed for efficient heat transfer, the heat pipes effectively draw thermal energy away from the GPU, improving overall cooling performance.

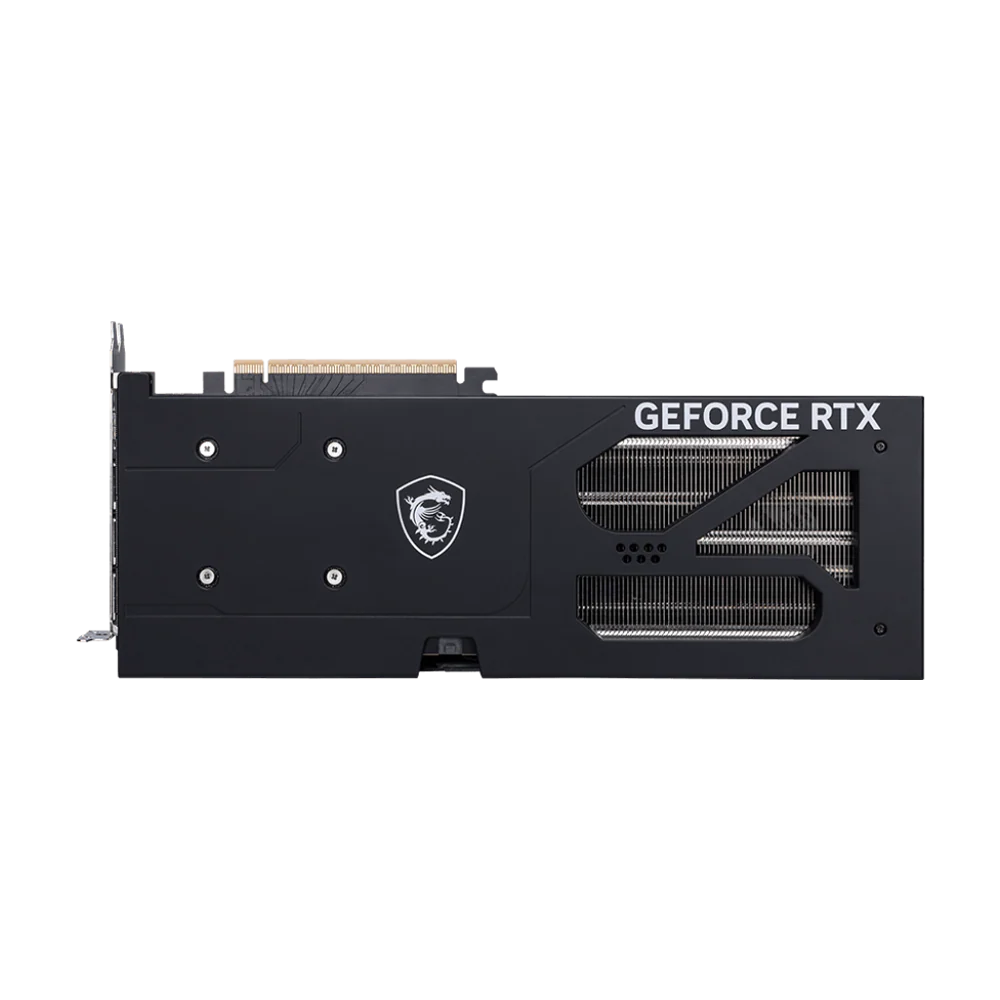

- Reinforcing Backplate: The reinforcing backplate features an airflow vent that allows exhaust air to directly pass through.
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.
TAKE THE ESSENTIALS
VENTUS focuses on the essentials to tackle any challenge. Its efficient thermal solution is encased in a resilient enclosure with a neutral aesthetic, allowing this sleek graphics card to integrate seamlessly into any build.

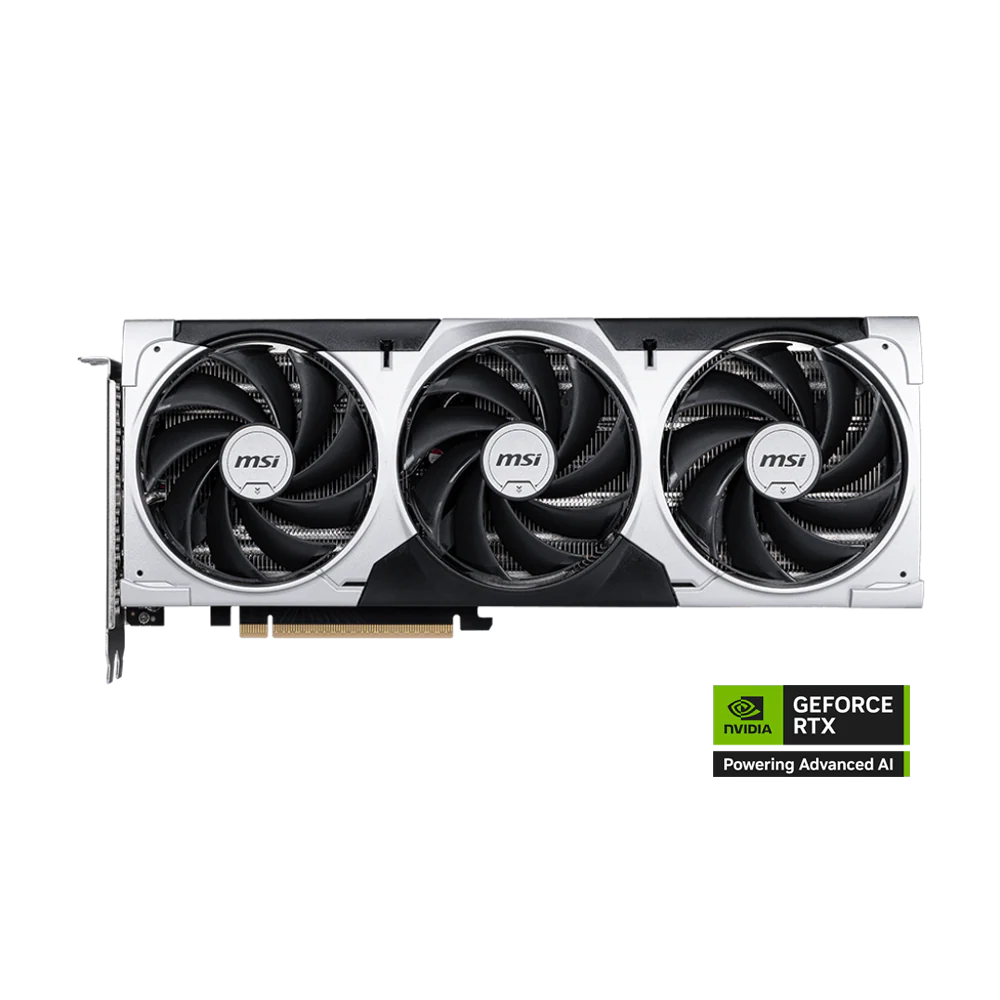

Triple-Fan Thermal Design
Three fans on a large heatsink deliver both superior and quieter cooling.
Specifications
- Marketing Name : GeForce RTX™ 5060 Ti 8G VENTUS 3X OC
- Model Name : G506T-8V3C
- Graphics Processing Unit : NVIDIA® GeForce RTX™ 5060 Ti
- Interface : PCI Express® Gen 5 x16 (uses x8)
- Core Clocks : Extreme Performance: 2617 MHz (MSI Center)
Boost: 2602 MHz
- CUDA® CORES : 4608 Units
- Memory Speed : 28 Gbps
- Memory : 8GB GDDR7
- Memory Bus : 128-bit
- Output : DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
- HDCP Support : Y
- Power consumption : 180 W
- Power connectors : 8-pin x 1
- Recommended PSU : 600 W
- Card Dimension (mm) : 304 x 121 x 44 mm
- Weight (Card / Package) : 793 g / 1162 g
- DirectX Version Support : 12 Ultimate
- OpenGL Version Support : 4.6
- Maximum Displays : 4
- G-SYNC® technology : y
- Digital Maximum Resolution : 7680 x 4320
