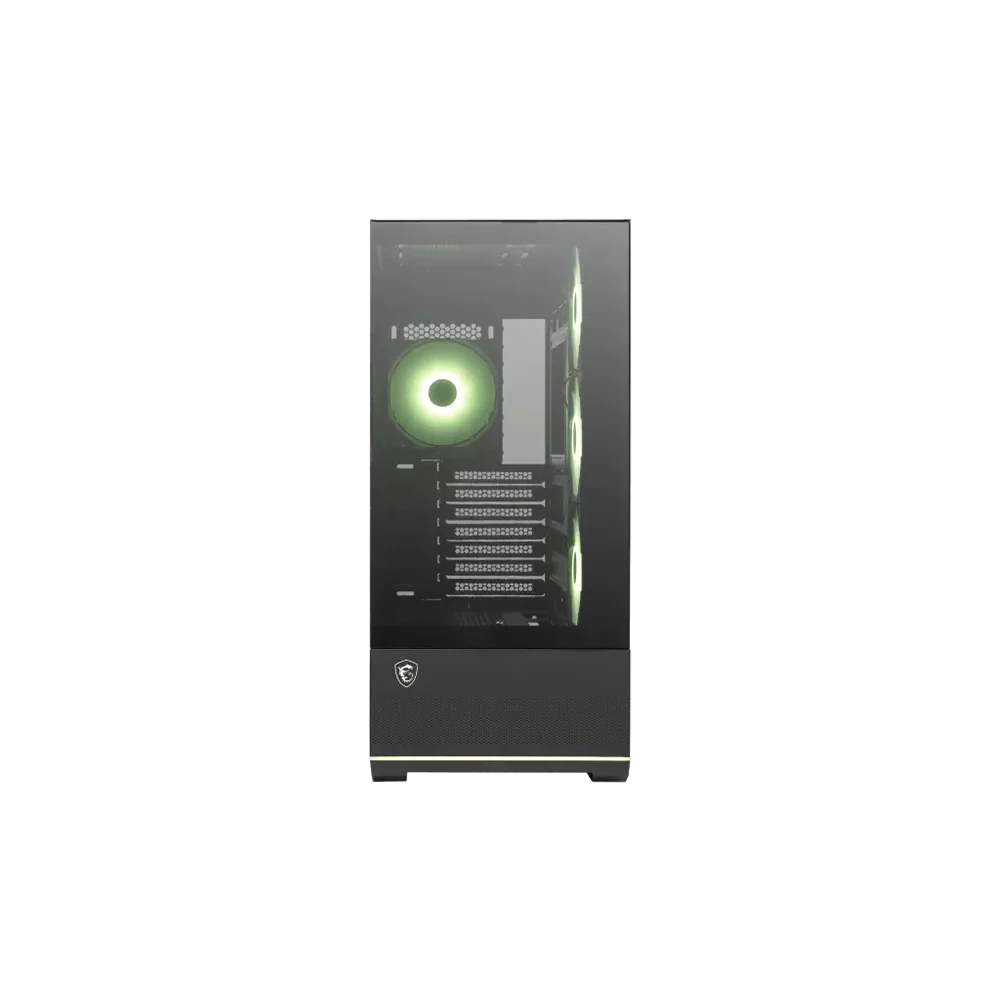

MSI MAG PANO 110R PZ Mid Tower Case - Black

Key Features

• 270-Degree Display: The chassis features a 270-degree panoramic design with tempered glass, providing an expansive view to showcase detailed components.

• Measurements: Supports multiple motherboard sizes, including regular ATX, Micro-ATX, Mini-ITX and back-connect ATX and Micro-ATX, allowing users to customize their PC setup.

• Pre-build with Reverse Blades Fan: Pre-installed reverse blade fans on the side ensure an unobstructed display of the ARGB fan’s lighting effects, free from interference by fan frames.

• ARGB-Fan Control Board: The 1-to-5 ARGB fan control board supports up to 5 ARGB fans, allowing users to adjust 18 ARGB lighting effects with a single LED switch button

• Upgrade Airflow Layout: Supports up to 10 fans, a 360mm radiator on top and a 120mm radiator at rear. The lower chamber, surrounded by vents, further enhances heat dissipation for optimal performance.

MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.

To fulfill the desire for showcasing an ARGB PC build, the MAG PANO 110R Series features a 270-degree panoramic display, enhancing aesthetics and maintaining a clean design.

Decorated with a metal nameplate to highlight the MAG family identity.

Featuring a 1-to-5 ARGB fan control hub, this system is fully compatible with MSI Mystic Light, allowing for easy sync and customizable ARGB lighting effects.

Pre-installed with 3 x ARGB reverse blade fans at the side and 1 x ARGB fan at the rear for optimal airflow and a clean, stylish design.

The uni-front-panel cable is easy for users to connect to MSI motherboards.

Push-latch side panel and PCIe bracket, streamline installation process, enhancing the experience.

Specifications

• Product Name : MAG PANO 110R PZ / BLACK

• Case Form Factor : Mid-Tower

• Motherboard Form Factor Support

  • Regular:
    ATX / Micro-ATX / Mini-ITX

  • Back-connect:
    ATX / Micro-ATX

• I/O Ports

  • 1 x USB 20Gbs (Type-C)

  • 2 x USB 5Gbs (Type-A)

  • 1 x Audio-Out / Mic-in

  • 1 x LED Button

  • 1 x Power Button

• Drive Mount Support

  • 2 x 2.5“

  • 2 x 3.5“

  • 2 x 2.5"/3.5" combo

• Expansion Slots : 7

• Maximum GPU Length : 400 mm / 15.75 inches

• Maximum CPU Cooler Height : 160 mm / 6.30 inches

• Power Supply Support : ATX

• Maximum PSU Length : 200 mm / 7.87 inches

• Fan Size Support

  • Top: 3 x 120 mm / 2 x 140 mm

  • Front: NA

  • Rear: 1 x 120 mm

  • Side: 3 x 120 mm / 2 x 140 mm

  • Bottom: 3 x 120 mm (Above the power shroud)

• Pre-installed Fan Size

  • Side: 3 x 120 mm

  • Rear: 1 x 120 mm

• Pre-installed Fan Type

  • Side: 3 x ARGB Fan (Reverse Blades Fan)

  • Rear: 1 x ARGB Fan

• Radiator Size Support

  • Top: 120 / 140 / 240 / 280 / 360 mm

  • Front: NA

  • Rear: 120 mm

  • Side: NA

  • Bottom: NA

• Dimensions w/o Feet/Protrusions/Screws (DxWxH) : 420 x 225 x 485 mm / 16.54 x 8.86 x 19.09 inches
