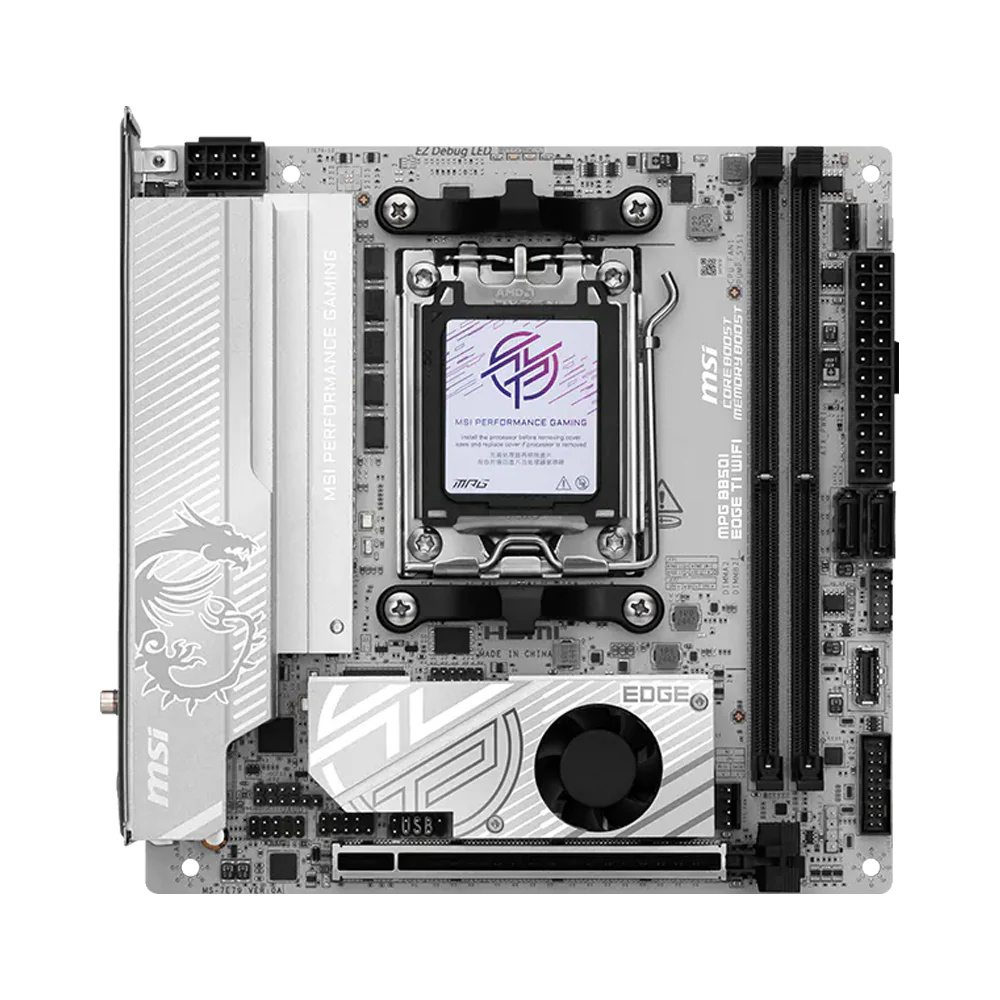

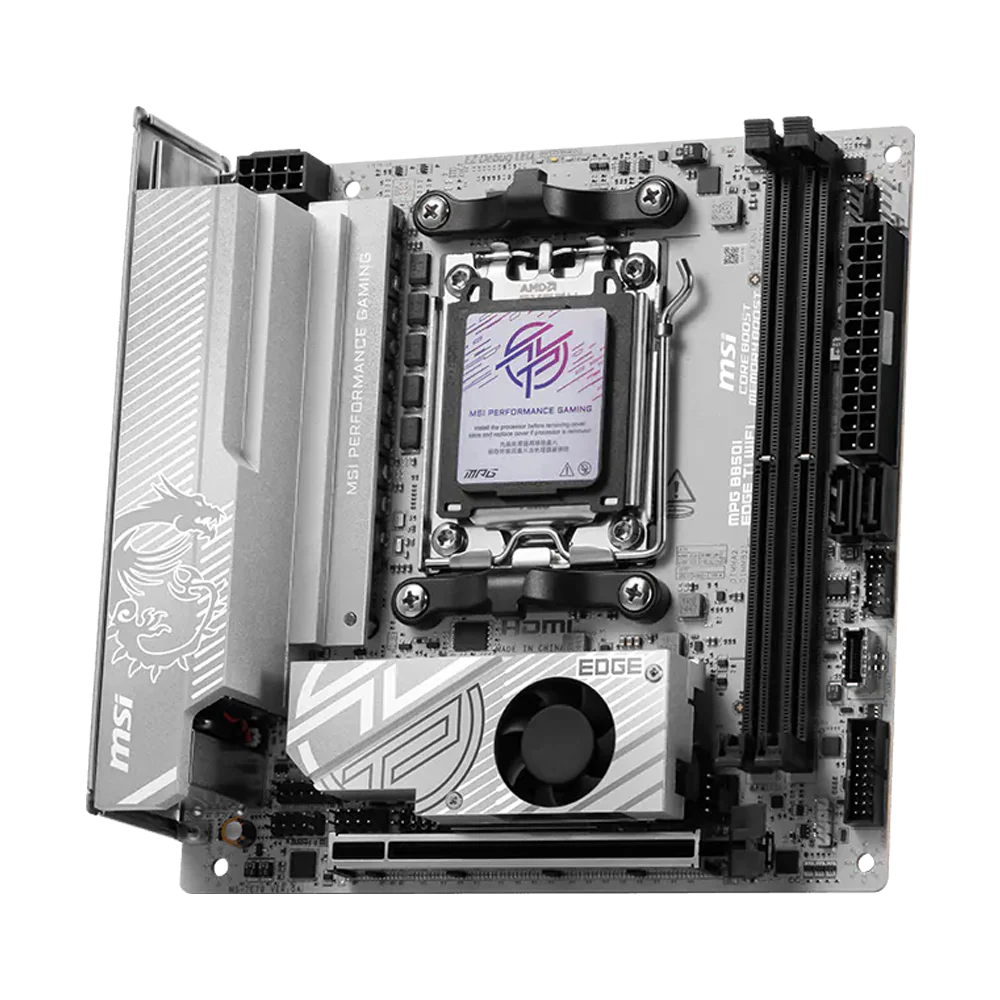

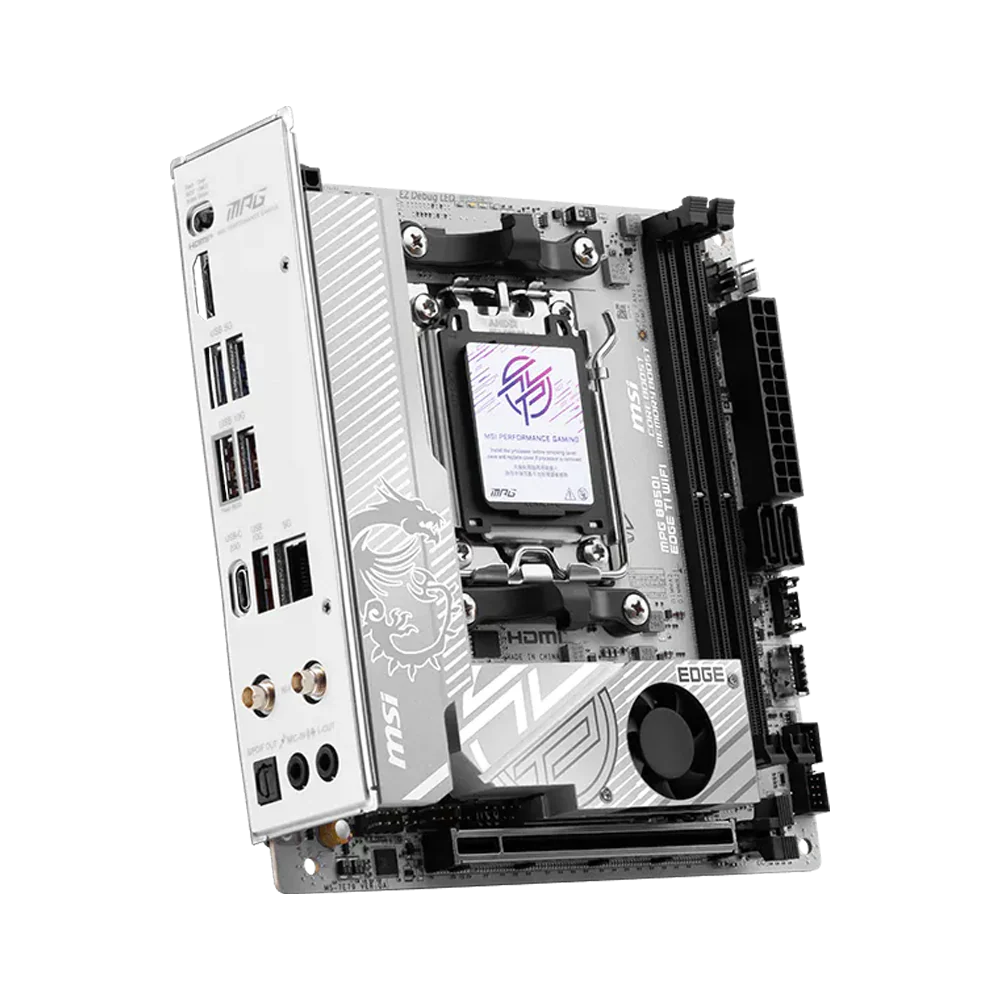

MSI MPG B850I EDGE TI WIFI DDR5 Motherboard - White

• Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors

• Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)

• Ultra Performance: Direct 8+2+1 Phases Design, Core Boost, Memory Boost, 10-layer PCB made by 2oz thickened copper and server-grade level material

• Frozr Guard: Enlarged heatsink, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop gaming experience

• EZ DIY: EZ Antenna, EZ Conn-Design and EZ Front Panel Cable

• Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2

• High-speed Connectivity: 5G LAN with Wi-Fi 7 Solution and USB 20Gbps- The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission

• Audio Boost 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

MPG B850I EDGE TI WIFI is covered with a silver-white color scheme for white PC build lovers to show off different identity. It is also powerful because of its true Wi-Fi 7 solution, 5G LAN, and the latest PCIe 5.0 compatibility, Supplemental PCIe Power, and this is the best white theme B850 ITX motherboard for AMD Ryzen™ 9000 series processors.

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

AI Engine
provides several categories for you to sync the applications you want to perform and automatically optimizing them to create a comfortable environment.

AI LAN MANAGER
optimizes networking performance and minimizes latency, providing a seamless online experience.

Frozr AI Cooling
automatically adjusts fan duty to make sure the system stays in cool, stable and high performance.

DIRECT 8+2+1 POWER DESIGN
Unleash and sustain the maximum performance with a flagship VRM design built with a total of Direct 8+2+1 power design. Combining dual power connectors and 90A Smart Power Stage, MPG B850I EDGE TI WIFI is ready for the challenge of high-end processors.

DDR5 MEMORY SUPPORT WITH HIGH PERFORMANCE
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MPG B850I EDGE TI WIFI is ready to deliver the world-class memory performance.

Transient Voltage Suppressors (TVS)
Transient Voltage Suppressors (TVS) are safety devices used to protect against excessive voltage. All motherboard models of MSI are equipped with TVS. When the voltage abnormally rises, the TVS switches from a high-resistance state to a low-resistance state, diverting the excessive voltage to ground. This helps prevent circuit damage caused by high voltage.

FROZR SYNC

Combo Fan Header
The MSI Combo Fan Header is a versatile component, functioning as both a pump and or fan header. The header will automatically detects whether it is either pump or PWM/DC fan, with it's distinctive gray color ensuring easy identification

FROZR CONTROL

Cooling Wizard serves as a comprehensive solution for managing fan settings across all MSI products. It ensures superior cooling performance and noise reduction for your gaming PC, offering compatibility with PWM/DC fans and pumps, customizable options, and intuitive temperature monitoring for optimal operation with one click.

Networking

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.

storage

FAST AND FUTURE-READY STORAGE
MSI MPG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

Expansion

LIGHTNING GEN 5 PCI-E WITH STEEL ARMOR

LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.

SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.

mystic light

GLOW YOUR PC
Splash on some color and vibrant RGB lighting effects using Mystic Light utility of MSI Center, which has million colors and fancy LED effects. Enjoy the full control and creativity of your PC's lighting with one software.

MSI’s newly designed CLICK BIOS X offers an aesthetically pleasing and user-friendly experience. The new design ensures that users of all experience levels can quickly access and adjust system configurations with ease.

Software

MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.

Specifications

• Chipset AMD B850

• CPU : Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors

• Socket AM5

• Memory 2x DDR5 UDIMM, Maximum Memory Capacity 128GB

• Memory Support DDR5 10000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s

• Ryzen™ 9000 Series Processors max. overclocking frequency:

• • 1DPC 1R Max speed up to 8200+ MT/s

• • 1DPC 2R Max speed up to 8000+ MT/s

• Supports AMD POR Speed and JEDEC Speed

• Supports Memory Overclocking and AMD EXPOTM

• Supports Dual-Channel mode

• Supports Non-ECC, Un-buffered memory

• Supports CUDIMM, Clock Driver bypass mode only*

• * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.

• • The DIMM slots on this motherboard only have double-sided latches.

• • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.

• Onboard Graphics : 1x HDMI™

• Support HDMITM 2.1 with FRL port, supporting a maximum resolution of 8K 60Hz*

• *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

• Slot : 1x PCI-E x16 slot

• PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

• PCI_E1 slot

• • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)

• • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)

• • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)

• Audio : Realtek® ALC4080 Codec

• 7.1-Channel USB High-Performance Audio

• Supports up to 32-Bit/384 kHz playback on front panel

• Supports S/PDIF output

• Storage 2x M.2

• M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices

• M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices

• 2x SATA 6G

• M.2_1 slot

• • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)

• • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)

• M.2_2 slot

• • Supports up to PCIe 4.0 x4

• • Supports 2280 storage devices

• RAID • Supports RAID 0, and RAID 1 for SATA storage devices

• • Supports RAID 0, and RAID 1 for M.2 NVMe storage devices

• USB : 2x USB 2.0 (Front)

• 2x USB 5Gbps Type A (Rear)

• 2x USB 5Gbps Type A (Front)

• 3x USB 10Gbps Type A (Rear)

• 1x USB 10Gbps Type C (Front)

• 1x USB 20Gbps Type C (Rear)

• LAN : 1x Realtek® 8126 5G LAN

• Internal IO : 1x Power Connector(ATX_PWR)

• 1x Power Connector(CPU_PWR)

• 1x CPU Fan

• 1x Combo Fan (Pump_Sys Fan)

• 1x System Fan

• 1x EZ Conn-header (JAF_2)

• 2x Front Panel (JFP)

• 1x Chassis Intrusion (JCI)

• 1x Front Audio (JAUD)

• 1x Addressable V2 RGB LED connector (JARGB_V2)

• 1x TPM pin header(Support TPM 2.0)

• 2x USB 2.0 ports

• 2x USB 5Gbps Type A ports

• 1x USB 10Gbps Type C ports

• WIRELESS LAN & BLUETOOTH : Wi-Fi 7

• The Wireless module is pre-installed in the M.2 (Key-E) slot

• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps

• Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

• Supports Bluetooth® 5.4**, MLO, 4KQAM

• * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.

• ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.

• LED FEATURE : 4x EZ Debug LED

• 1x EZ Memory Detection LED

• BACK PANEL PORTS

• Clear CMOS Button

• 5G LAN

• Wi-Fi / Bluetooth

• Audio Connectors

• Flash BIOS Button

• HDMI™

• USB 5Gbps Type-A

• USB 10Gbps Type-A

• USB 20Gbps Type-C

• USB 10Gbps Type-A

• Optical S/PDIF Out

• OPERATING SYSTEM : Support for Windows® 11 64-bit

• BOX CONTENT

• PCB Info : Mini-ITX

• 170mmx170mm
