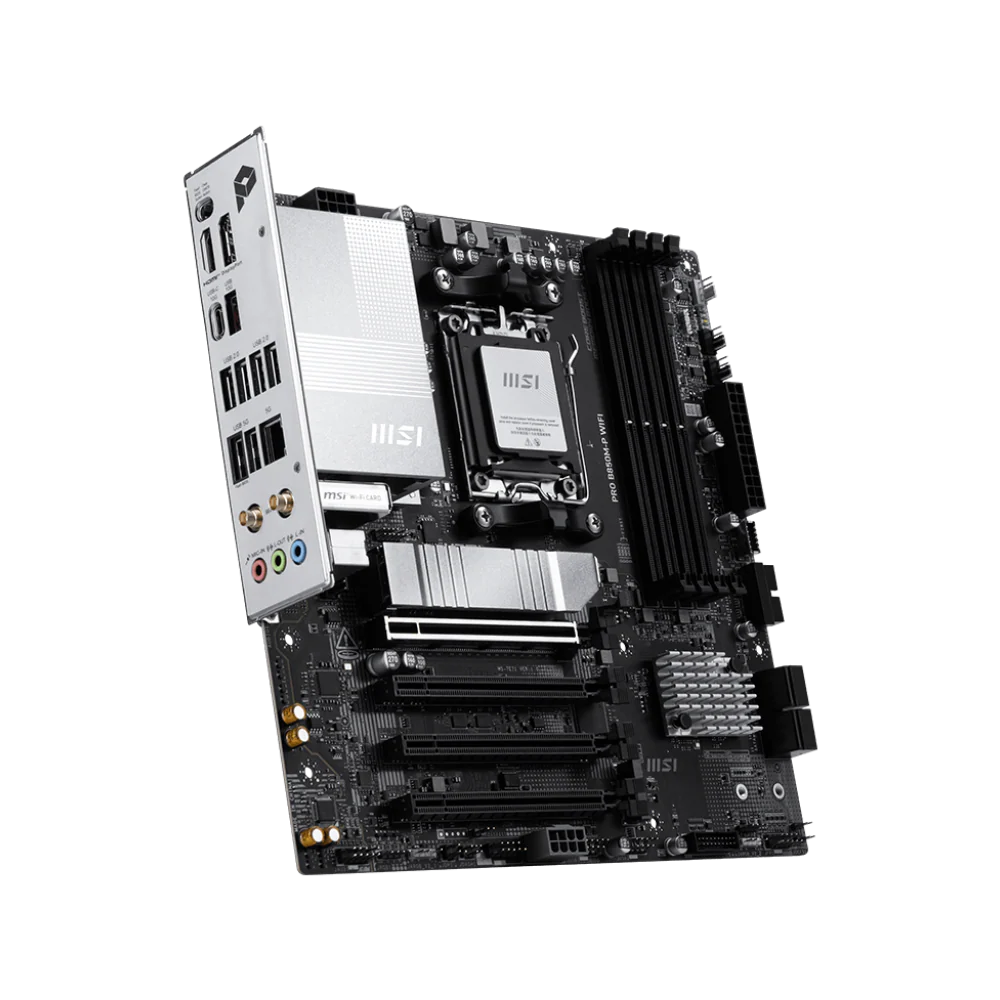

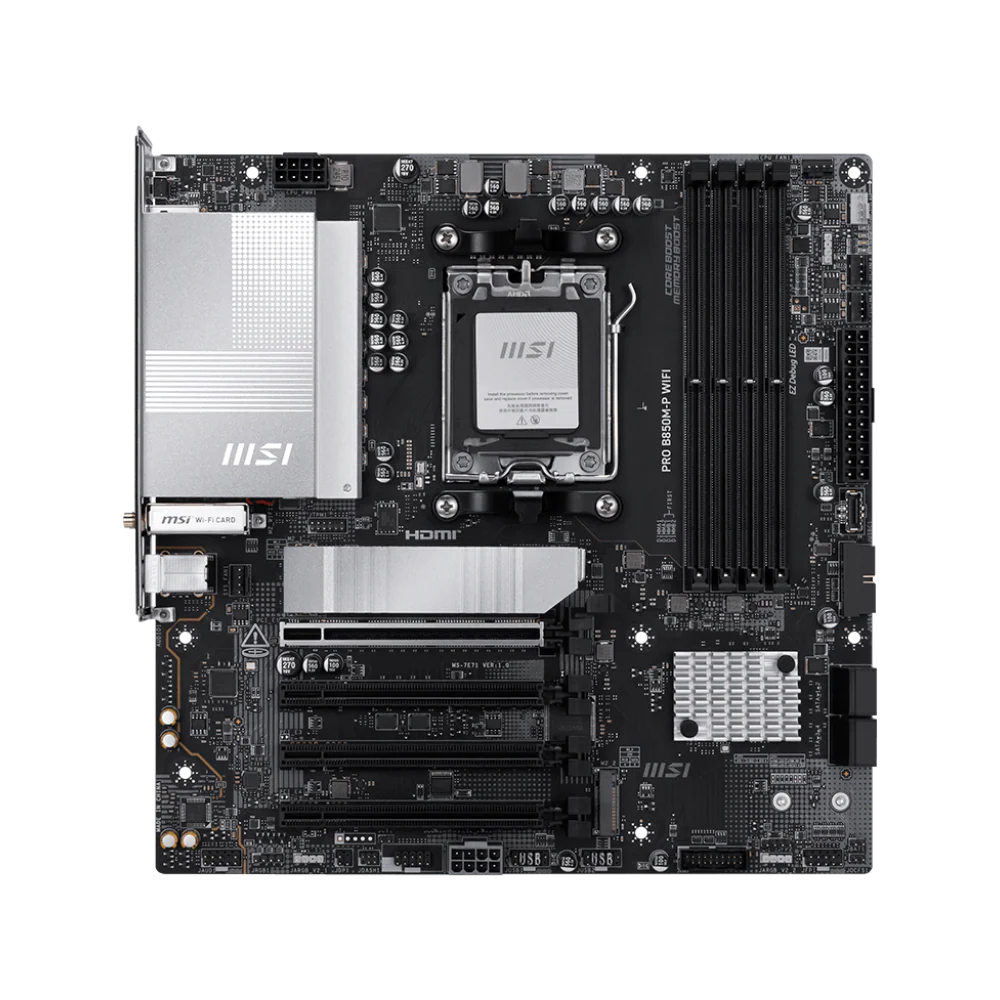

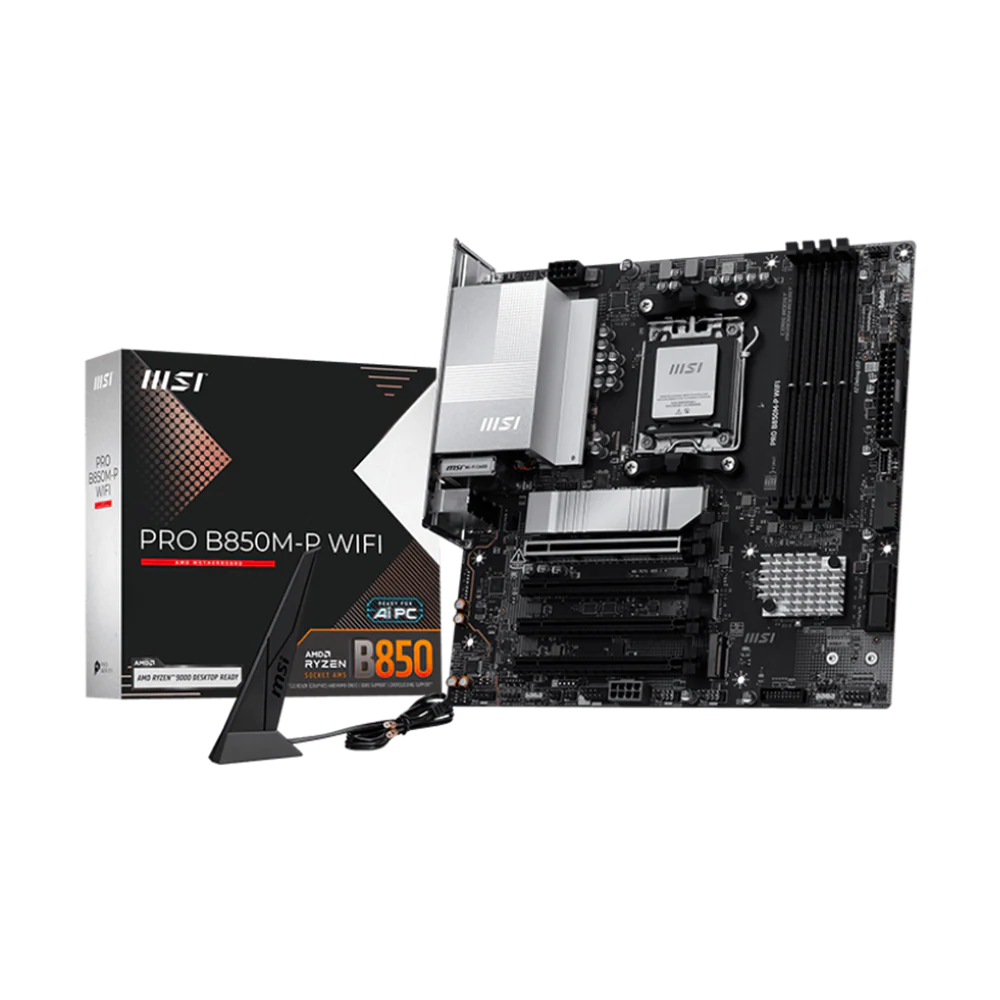

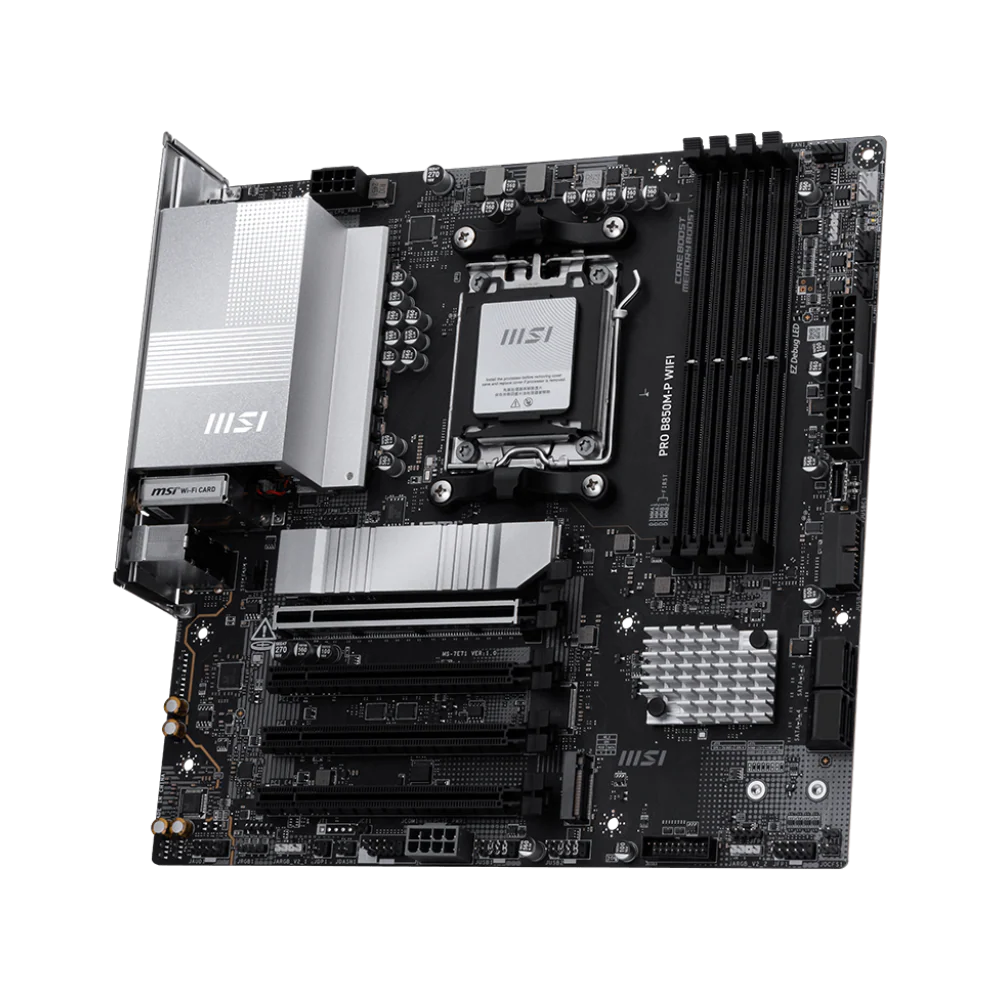

MSI PRO B850M-P WIFI DDR5 Motherboard - Black

Key Features:

• Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
• Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
• Ultra Performance: Direct 7+2+1 Power System with P-PAK, 8-pin CPU power connector, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
• Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
• EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
• Lightning Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2
• 5G LAN with Wi-Fi 7 Solution: the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
• Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

PRO B850M-P WIFI
PRO B850M-P WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a Wi-Fi 7 with EZ Antenna, 5G LAN, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, and Supplemental PCIe Power, ready for the AMD Ryzen™ 9000 series processors.

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

AI Engine
provides several categories for you to sync the applications you want to perform and automatically optimizing them to create a comfortable environment.

AI LAN MANAGER
optimizes networking performance and minimizes latency, providing a seamless online experience.

Frozr AI Cooling
automatically adjusts fan duty to make sure the system stays in cool, stable and high performance.

AI Boost
is an MSI exclusive feature. It overclocks NPU to improve higher AI performance.

DIRECT 7+2+1 POWER DESIGN
Unleash and sustain the maximum performance with a VRM design built with a total of 7+2+1 digital power phases. With an 8-pin power connector, PRO B850M-P WIFI is ready for the challenge of heavy-loading tasks.

OPTIMIZED PCB SOLUTION
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.

Cooling Wizard serves as a comprehensive solution for managing fan settings across all MSI products. It ensures superior cooling performance and noise reduction for your gaming PC, offering compatibility with PWM/DC fans and pumps, customizable options, and intuitive temperature monitoring for optimal operation with one click.

Frozr AI Cooling targets CPU and GPU temperatures. The AI system detects CPU and GPU temperatures and automatically adjusts the fan duty of system fans to ensure optimal performance.

MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.



Specifications:

• Chipset : AMD B850
  CPU   : Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
  Socket AM5
  Memory    : 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
  Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
  Ryzen™ 9000 Series Processors max. overclocking frequency:
  • 1DPC 1R Max speed up to 8200+ MT/s
  • 1DPC 2R Max speed up to 6400+ MT/s
  • 2DPC 1R Max speed up to 6400+ MT/s
  • 2DPC 2R Max speed up to 6000+ MT/s
• Supports AMD POR Speed and JEDEC Speed
  Supports Memory Overclocking and AMD EXPOTM
  Supports Dual-Channel mode
  Supports Non-ECC, Un-buffered memory
  Supports CUDIMM, Clock Driver bypass mode only*
• * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
  • The DIMM slots on this motherboard only have single-sided latches.
  • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
  Onboard Graphics    1x HDMI™
  Support HDMITM 2.1, maximum resolution of 4K 60Hz*
  1x DisplayPort
  Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
  *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
  Slot    4x PCI-E x16 slot
  PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
  PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
  PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
  PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
• PCI_E1 slot
  • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
  • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
  • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
  Audio    Realtek® ALC897
  7.1-Channel High Definition Audio
  Storage    : 3x M.2
  M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
  M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices
  4x SATA 6G
• M2_1 slot
  • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
  • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
• M2_2 slot
  • Supports up to PCIe 4.0 x4
  • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
• *Please refer to the manual for M.2 SSD heatsink restrictions.
  RAID    : Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
  Supports RAID 0, RAID 1, and RAID 5 for M.2 NVMe storage devices
• *RAID 5 configuration is only supported by Ryzen™ 9000 series processors.
  USB  :  4x USB 2.0 (Rear)
  4x USB 2.0 (Front)
  2x USB 5Gbps Type A (Rear)
  4x USB 5Gbps Type A (Front)
  1x USB 10Gbps Type A (Rear)
  1x USB 10Gbps Type C (Rear)
  1x USB 10Gbps Type C (Front)
  LAN  :  Realtek® 8126VB 5G LAN
  Internal IO   : 1x Power Connector(ATX_PWR)
  1x Power Connector(CPU_PWR)
  1x Power Connector(PCIE_PWR 8pin)
  1x CPU Fan
  1x Combo Fan (Pump_Sys Fan)
  3x System Fan
  2x Front Panel (JFP)
  1x Chassis Intrusion (JCI)
  1x Front Audio (JAUD)
  1x Com Port (JCOM)
  1x Tuning Controller connector(JDASH)
  3x Addressable V2 RGB LED connector (JARGB_V2)
  1x RGB LED connector(JRGB)
  1x TPM pin header(Support TPM 2.0)
  4x USB 2.0 ports
  4x USB 5Gbps Type A ports
  1x USB 10Gbps Type C ports
  WIRELESS LAN & BLUETOOTH    Wi-Fi 7
  The Wireless module is pre-installed in the M.2 (Key-E) slot
  Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps
  Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
• Supports Bluetooth® 5.4**, MLO, 4KQAM
• * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
  ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
  LED FEATURE   : 4x EZ Debug LED
  1x EZ Memory Detection LED
  BACK PANEL PORTS
  Clear CMOS Button
  DisplayPort
  USB 10Gbps Type-A
  USB 2.0
  5G LAN
  Wi-Fi / Bluetooth
  Audio connectors
  Flash BIOS Button
  HDMI™
  USB 10Gbps Type-C
  USB 5Gbps Type-A
• OPERATING SYSTEM  :  Support for Windows® 11 64-bit
