MSI PRO Z890-S WIFI DDR5 Motherboard - Black

Key Features:

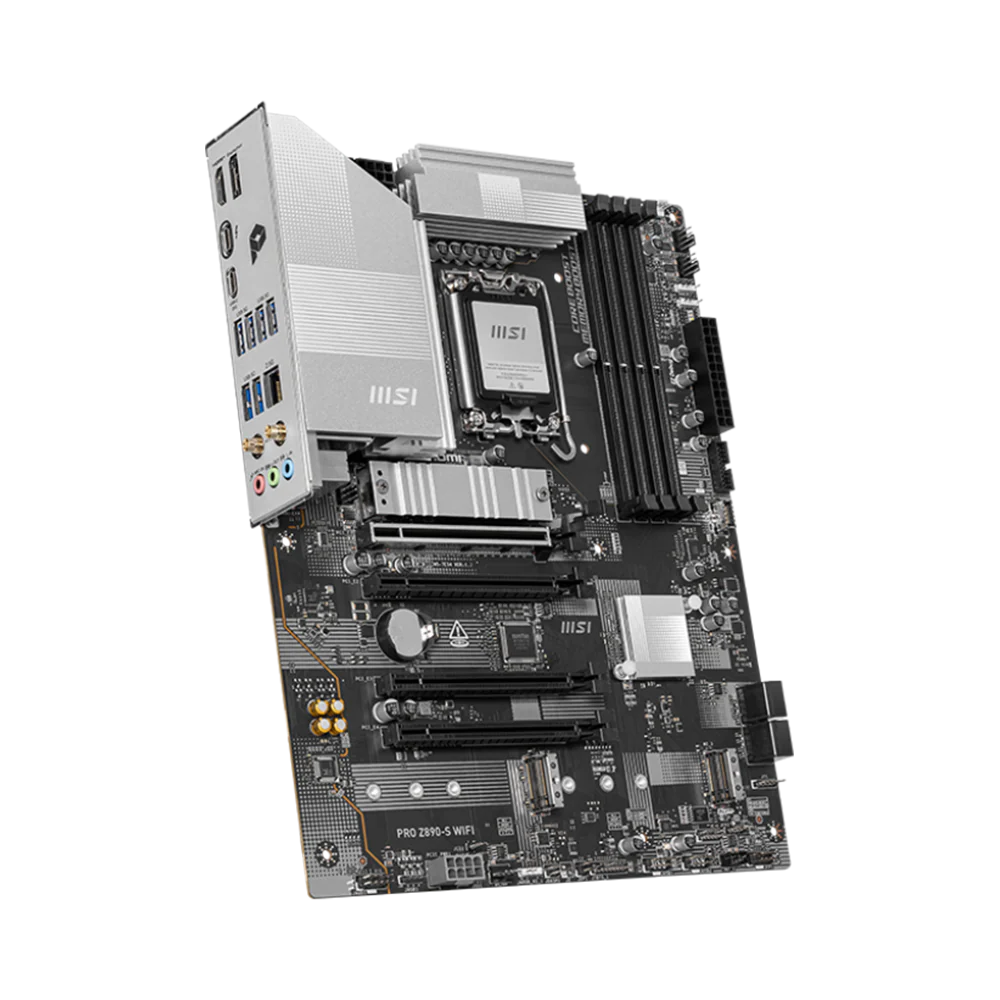

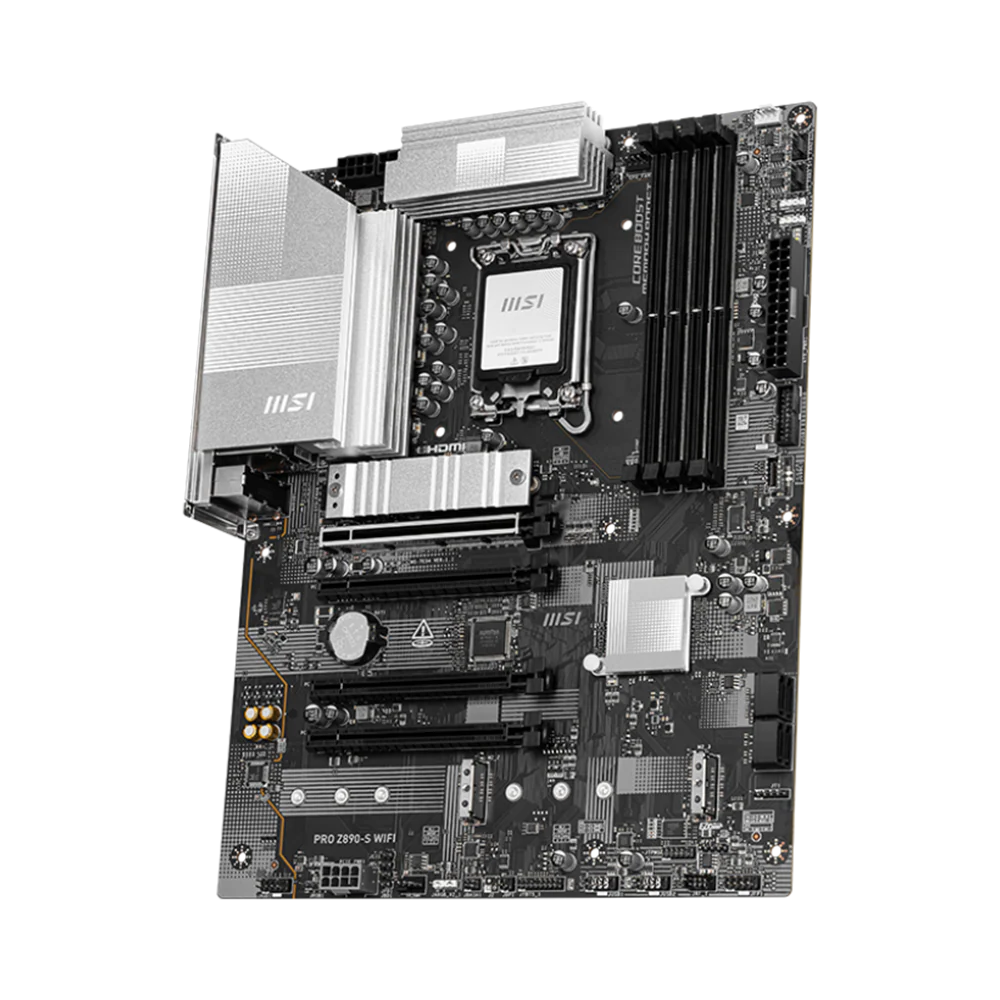

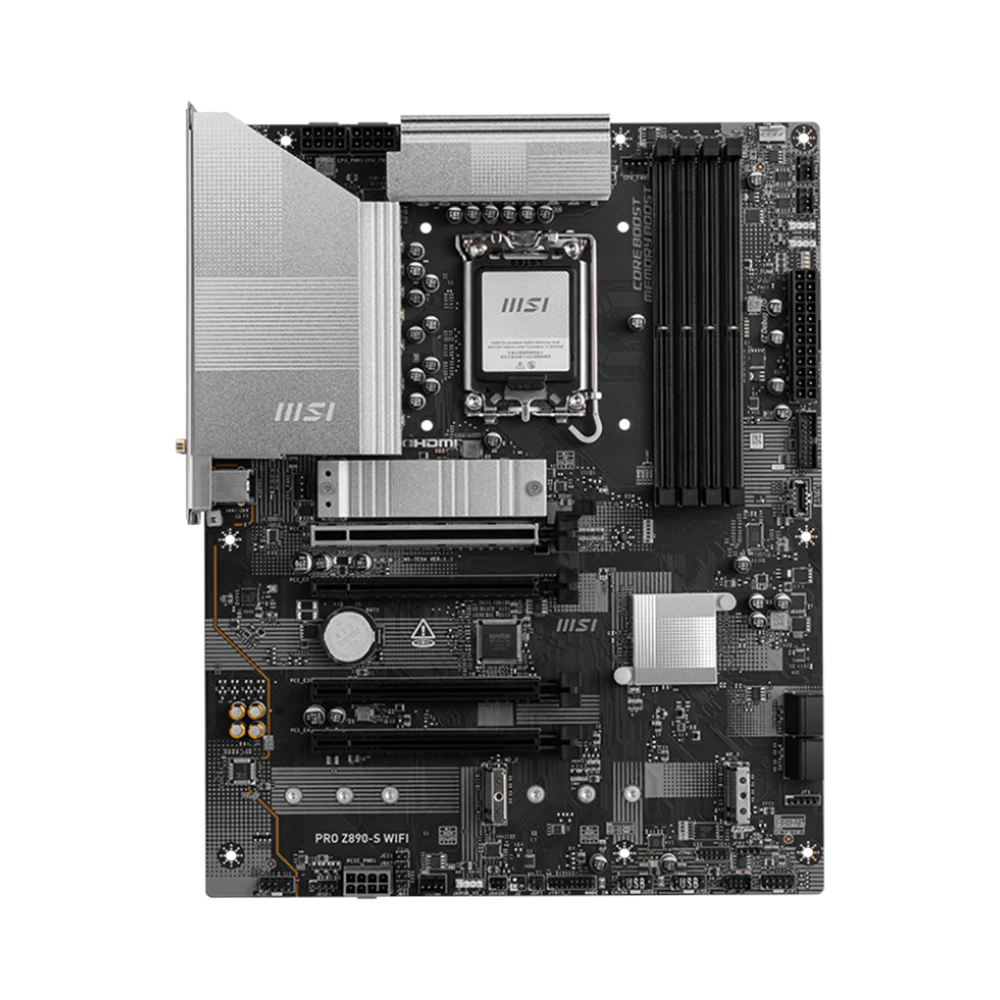

PRO Z890-S WIFI

PRO Z890-S WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 2.5G LAN, Thunderbolt 4, PCIe 5.0 M.2, and Supplemental PCIe Power, ready for the Intel® Core™ Ultra processors.

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

AI Engine
provides several categories for you to sync the applications you want to perform and automatically optimizing them to create a comfortable environment.

AI LAN MANAGER
optimizes networking performance and minimizes latency, providing a seamless online experience.

Frozr AI Cooling
automatically adjusts fan duty to make sure the system stays in cool, stable and high performance.

One Finger for EZ GPU Installation
The new EZ PCIe Clip II, located on the first slot, features the rebounding force mechanism that allows for easy removal of the graphics card by pressing the tail-like lock with one finger. Due to this exquisite design, users can uninstall the graphics cards effortlessly, even in the cramped case spaces.

12+1+1+1 DRPS POWER DESIGN
Unleash and sustain the maximum performance with a flagship VRM design built with a total of 12+1+1+1 digital power phases. With dual power connectors, PRO Z890-S WIFI is ready for the challenge of high-end processors.

DDR5 MEMORY SUPPORT WITH HIGH PERFORMANCE
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, PRO Z890-S WIFI is ready to deliver the world-class memory performance.

Transient Voltage Suppressors (TVS)
Transient Voltage Suppressors (TVS) are safety devices used to protect against excessive voltage. All motherboard models of MSI are equipped with TVS. When the voltage abnormally rises, the TVS switches from a high-resistance state to a low-resistance state, diverting the excessive voltage to ground. This helps prevent circuit damage caused by high voltage.

DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.

Cooling Wizard serves as a comprehensive solution for managing fan settings across all MSI products. It ensures superior cooling performance and noise reduction for your gaming PC, offering compatibility with PWM/DC fans and pumps, customizable options, and intuitive temperature monitoring for optimal operation with one click.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.

FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

LIGHTNING GEN 5 PCI-E WITH STEEL ARMOR

LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.

MSI STEEL ARMOR
REINFORCED,
HEAVY SOLDERED CONNECTIONS
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

LOW YOUR PC
Splash on some color and vibrant RGB lighting effects using Mystic Light utility of MSI Center, which has million colors and fancy LED effects. Enjoy the full control and creativity of your PC's lighting with one software.

MSI’s newly designed CLICK BIOS X offers an aesthetically pleasing and user-friendly experience. The new design ensures that users of all experience levels can quickly access and adjust system configurations with ease.

MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.

Specifications

• Chipset   :  INTEL Z890
  CPU   :  Supports Intel® Core™ Ultra Processors (Series 2)
  LGA 1851
  Memory : 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
  Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
  Max. overclocking frequency:
  • 1DPC 1R Max speed up to 8800+ MT/s
  • 1DPC 2R Max speed up to 7200+ MT/s
  • 2DPC 1R Max speed up to 6400+ MT/s
  • 2DPC 2R Max speed up to 5600+ MT/s
• Supports Intel® POR Speed and JEDEC Speed
  Supports Memory Overclocking and Intel® XMP 3.0
  Supports Dual-Controller Dual-Channel mode
  Supports Non-ECC, Un-buffered memory
  Supports CUDIMM
• • The DIMM slots on this motherboard have double-sided latches.
  • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
  Onboard Graphics    1x HDMI™
  Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
  1x DisplayPort
  Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
  1x Type-C DisplayPort
  Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
  *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
  Slot  :  4x PCI-E x16 slot
  PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
  PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
  PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
  PCI_E4 Gen PCIe 4.0 supports up to x4 (From CPU)
  Audio  :  Realtek® ALC897 Codec
  7.1-Channel High Definition Audio
  Storage  :  3x M.2
  M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices
  M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
  M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
  4x SATA 6G
• *Please refer to the manual for M.2 SSD heatsink restrictions.
  RAID :   Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
  Onboard Thunderbolt  : 1x Thunderbolt4 ports (Rear)
  Supports up to 40Gbps transfer rate with Thunderbolt devices
  Supports up to 20Gbps transfer rate with USB4 devices
  Supports up to 10Gbps transfer rate with USB 3.2 devices
  Supports up to 5V/3A,15W power charging
  Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
  Supports up to 8K display
  USB  :  4x USB 2.0 (Front)
  6x USB 5Gbps Type A (Rear)
  2x USB 5Gbps Type A (Front)
  1x USB 20Gbps Type C (Rear)
  1x USB 20Gbps Type C (Front)
  LAN  :  Realtek® 8125D 2.5Gbps LAN
  Internal IO  :  1x Thunderbolt5 card connector(JTBT5, support RTD3)
  1x Power Connector(ATX_PWR)
  2x Power Connector(CPU_PWR)
  1x Power Connector(PCIE_PWR 8pin)
  1x CPU Fan
  1x Combo Fan (Pump_Sys Fan)
  4x System Fan
  1x EZ Conn-header (JAF_1)
  2x Front Panel (JFP)
  1x Chassis Intrusion (JCI)
  1x Front Audio (JAUD)
  1x Tuning Controller connector(JDASH)
  3x Addressable V2 RGB LED connector (JARGB_V2)
  1x RGB LED connector(JRGB)
  1x TPM pin header(Support TPM 2.0)
  4x USB 2.0 ports
  2x USB 5Gbps Type A ports
  1x USB 20Gbps Type C ports
  WIRELESS LAN & BLUETOOTH  :  Intel® Wi-Fi 7
  The Wireless module is pre-installed in the M.2 (Key-E) slot
  Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
  Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
• Supports Bluetooth® 5.4**, MLO, 4KQAM
• * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
  ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
  LED FEATURE  :  4x EZ Debug LED
  BACK PANEL PORTS
  DisplayPort
  USB 5Gbps Type-A
  2.5G LAN
  Wi-Fi / Bluetooth
  Audio Connectors
  HDMI™
  Thunderbolt™ 4 40Gbps (Type-C)
  USB 20Gbps Type-C
  USB 5Gbps Type-A
• OPERATING SYSTEM  :  Support for Windows® 11 64-bit

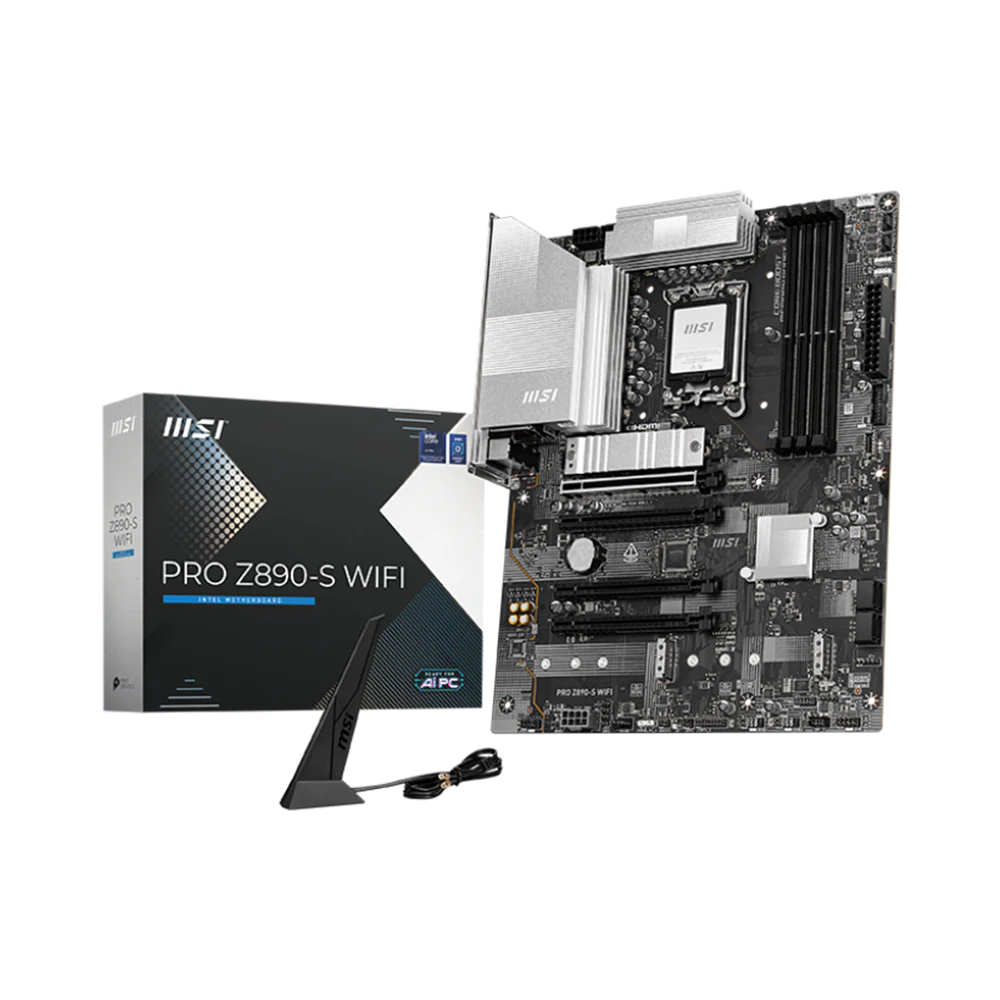

  BOX CONTENT
  PCB Info  :  ATX
  243.84mmx304.8mm
