MSI VENTUS 3X GeForce RTX 5080 16GB OC Graphics Card - Black

• Powered by the NVIDIA Blackwell architecture and DLSS 4

• SFF-Ready Enthusiast GeForce Card

• Core Clocks:

  Extreme Performance: 2655 MHz (MSI Center)

  Boost: 2640 MHz

• TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow.

• Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.

• Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management.

GeForce RTX 50 Series - Game Changer! The Most Advanced AI platform for Gamers, Creators and beyond. Multiply performance with NVIDIA DLSS 4.5, generate
images at unprecedented speed, and unleash your creativity with NVIDIA Studio.

TAKE THE ESSENTIALS
VENTUS focuses on the essentials to tackle any challenge. Its efficient thermal solution is encased in a resilient enclosure with a neutral aesthetic, allowing this sleek graphics card to integrate seamlessly into any build.

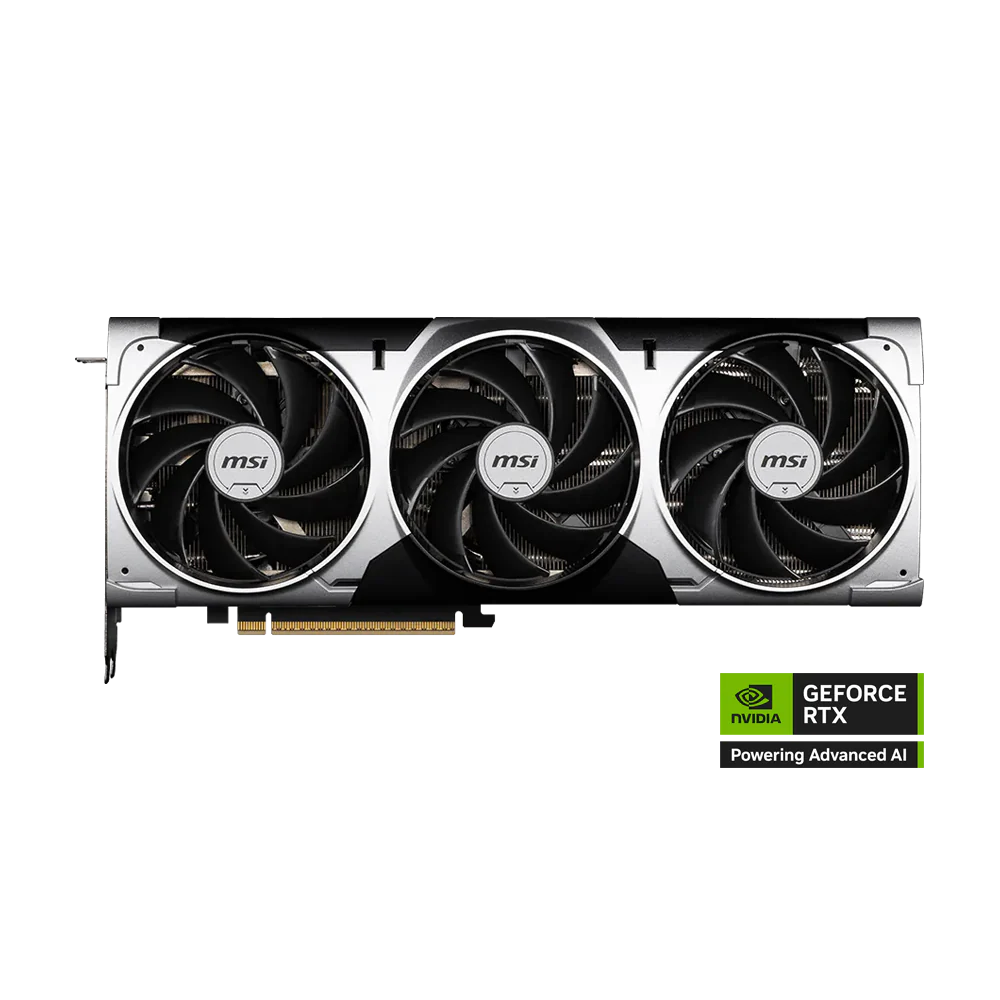

Triple-Fan Thermal Design
Three fans on a large heatsink deliver both superior and quieter cooling.

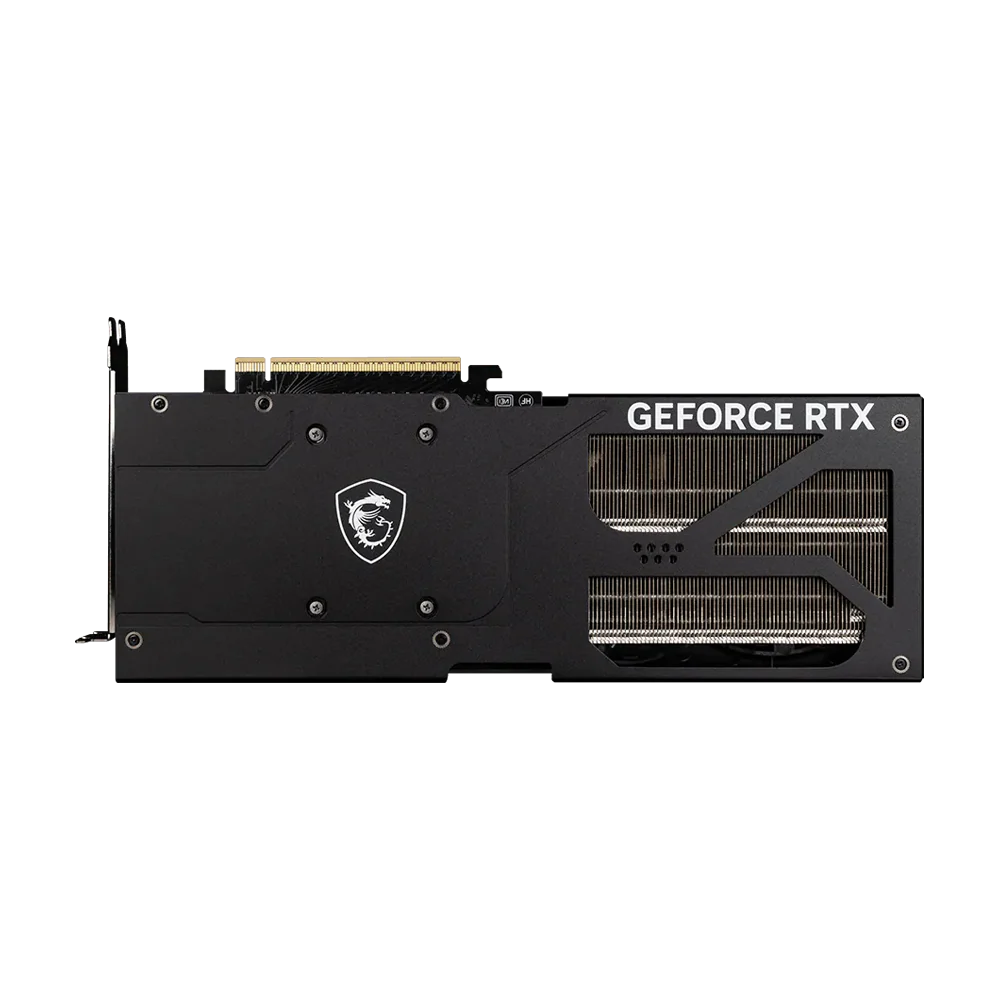

• Metal Backplate: A sturdy metal backplate strengthens the graphics card while the airflow vent design reduces excess heat.

• MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.

• Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.

Specifications

• Marketing Name : GeForce RTX™ 5080 16G VENTUS 3X OC

• Model Name : G5080-16V3C

• Graphics Processing Unit : NVIDIA® GeForce RTX™ 5080

• Interface : PCI Express® Gen 5

• Core Clocks : Extreme Performance: 2655 MHz (MSI Center)

• Boost: 2640 MHz

• CUDA® CORES : 10752 Units

• Memory Speed : 30 Gbps

• Memory : 16GB GDDR7

• Memory Bus : 256-bit

• Output : DisplayPort x 3 (v2.1b)

• HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)

• HDCP Support : Y

• Power consumption : 360 W

• Power connectors : 16-pin x 1 (ATX 3.1 PSU recommended)

• Recommended PSU : 850 W

• Card Dimension (mm) : 303 x 121 x 49 mm

• Weight (Card / Package) : 1084 g / 1576 g

• DirectX Version Support : 12 Ultimate

• OpenGL Version Support : 4.6

• Maximum Displays : 4

• G-SYNC® technology : Y

• Digital Maximum Resolution : 7680 x 4320
