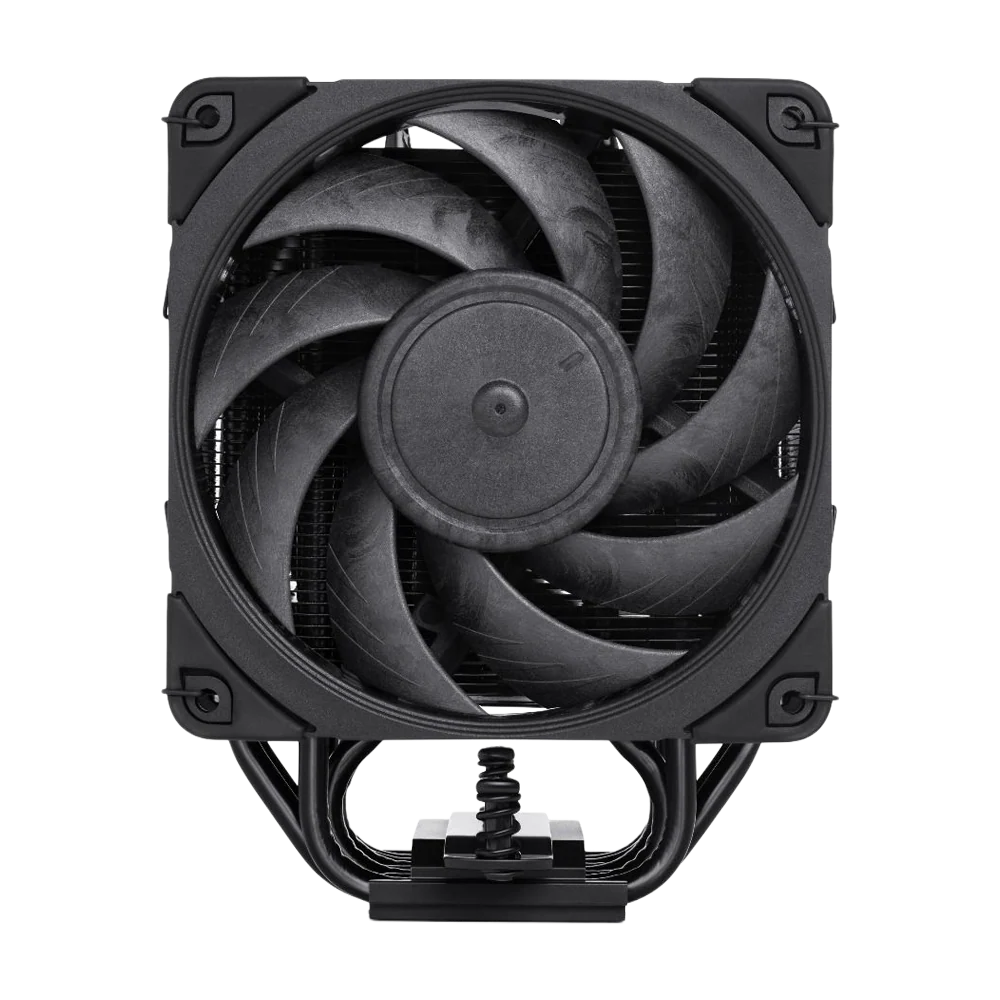

NOCTUA NH-U12A Chromax 140mm Performance in 120mm Premium Single Tower CPU Air Cooler - Black

The NH-U12A chromax.black is an all-black version of Noctua’s award-winning NH-U12A premium-quality quiet CPU cooler. Thanks to the same proven asymmetrical single-tower heatsink design and state-of-the-art NF-A12x25 PWM fans, it stays true to the NH-U12A’s successful formula of fusing best-in-class cooling performance with superb quietness of operation and outstanding RAM, case and PCIe compatibility. At the same time, the chromax.black version with its black fans and black coated heatsink combines these assets with a sleek stealth look. Topped off with the renowned SecuFirm2™ multi-socket mounting system, Noctua’s enthusiast-grade NT-H1 thermal compound and a full 6-year manufacturer’s warranty, the NH-U12A chromax.black is a deluxe choice for customers who seek a highly compatible 120mm heatsink that can rival the performance of 140mm units and looks just as great as it cools.

Specifications

• Socket compatibility : AM5, AM4, LGA1700, LGA1851, LGA1954, LGA1156, LGA1155, LGA1150, LGA1151, LGA1200

• Total height : 158 mm

• Fan configuration : 2x 120x120x25mm (square)

• NSPR : 169

• Colour : Black

• Height with fan(s) : 158 mm

• Height without fan(s) : 158 mm

• Width with fan(s) : 125 mm

• Width without fan(s) : 125 mm

• Depth with fan(s) : 112 mm

• Depth without fan(s) : 58 mm

• Weight with fan(s) : 1220 g

• Weight without fan(s) : 760 g

• Material: heatsink base : Copper, nickel plated

• Material: heatsink fins : Aluminium, nickel plated

• Material: heatpipes : Copper, nickel plated

• Interface heatpipes/heatsink fins : Soldered

• Number of heatpipes : 7

• Heatpipe diameter : 6 mm

• Fin count : 50

• Mounting hole pitch : 78 mm

• Rack unit compatibility : 5U

• Base size : 44.1 x 44.1 mm
