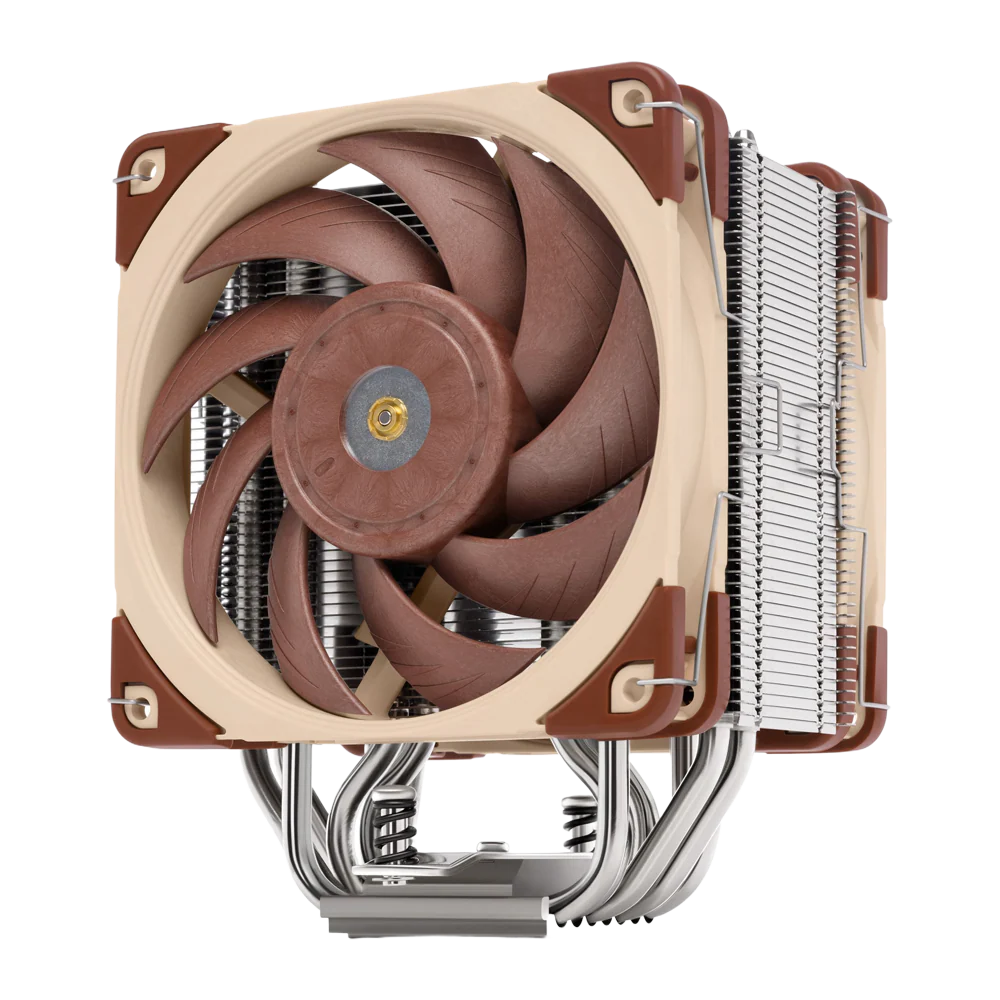

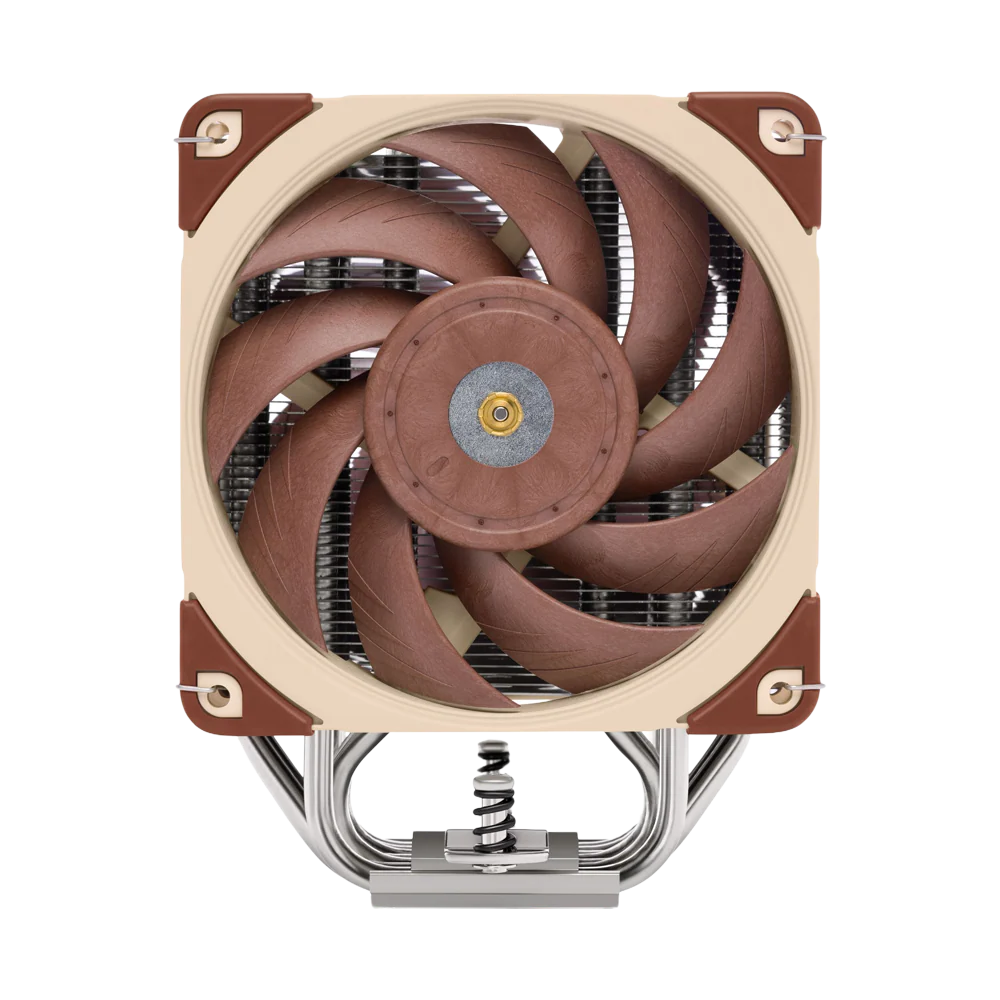

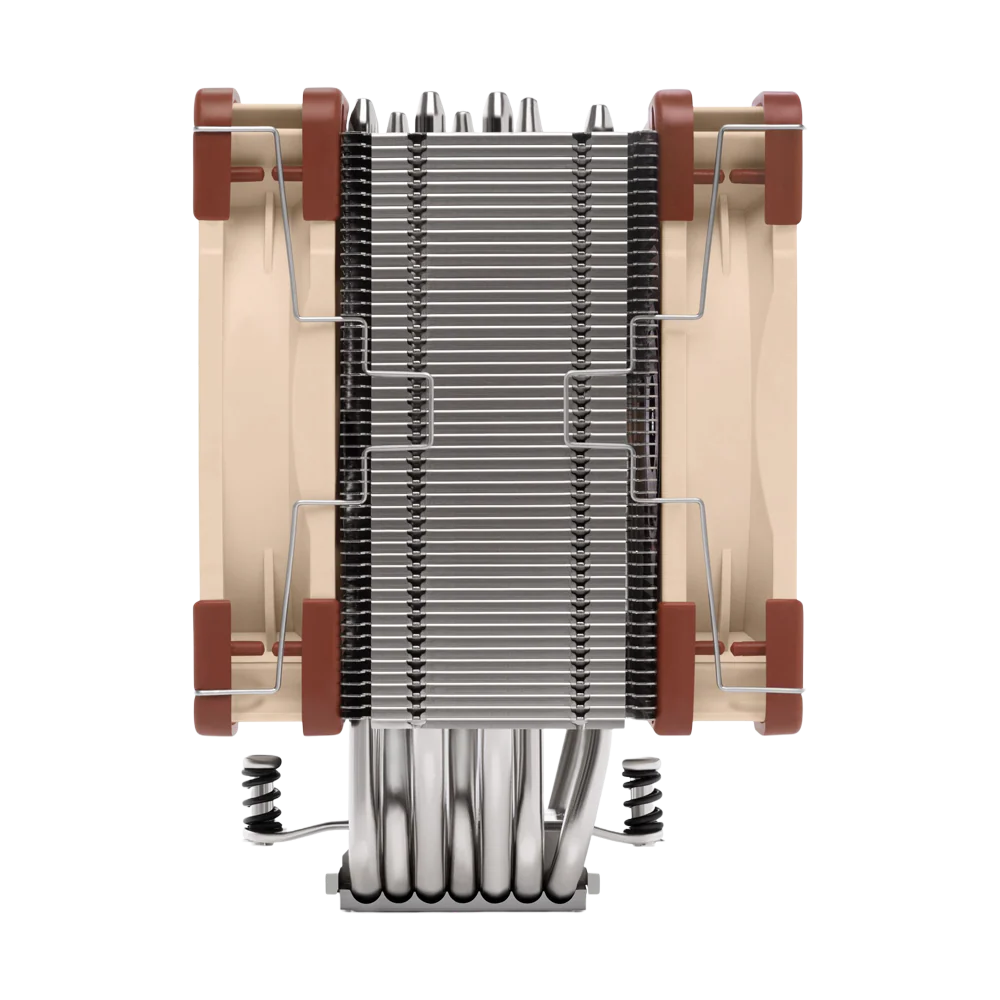

NOCTUA NH-U12A PWM 120mm Premium CPU Air Cooler - Brown

The NH-U12A is the latest, 5th generation of Noctua’s award-winning NH-U12 series of 120mm size premium-quality quiet CPU coolers. Conceived to push the envelope of the 120mm form factor, it combines two of Noctua’s flagship model NF-A12x25 PWM 120mm fans with a completely redesigned heatsink featuring 7 heatpipes and an increased fin surface area for superior heat dissipation. This way, the NH-U12A can rival the performance of many 140mm size coolers while offering 120mm class case and PCIe compatibility. Topped off with the trusted, pro-grade SecuFirm2™ multi-socket mounting system, Noctua’s proven NT-H1 thermal compound and a full 6-year manufacturer’s warranty, the NH-U12A is a deluxe choice that combines top-tier performance with excellent compatibility and outstanding quietness of operation.

Specifications

• Socket compatibility : AM5, AM4, LGA1700, LGA1851, LGA1954, LGA1156, LGA1155, LGA1150, LGA1151, LGA1200

• Total height : 158 mm

• Fan configuration : 2x 120x120x25mm (square)

• NSPR : 169

• Colour : Brown

• Height with fan(s) : 158 mm

• Height without fan(s) : 158 mm

• Width with fan(s) : 125 mm

• Width without fan(s) : 125 mm

• Depth with fan(s) : 112 mm

• Depth without fan(s) : 58 mm

• Weight with fan(s) : 1220 g

• Weight without fan(s) : 760 g

• Material: heatsink base : Copper, nickel plated

• Material: heatsink fins : Aluminium, nickel plated

• Material: heatpipes : Copper, nickel plated

• Interface heatpipes/heatsink fins : Soldered

• Number of heatpipes : 7

• Heatpipe diameter : 6 mm

• Fin count : 50

• Mounting hole pitch : 78 mm

• Rack unit compatibility : 5U

• Base size : 44.1 x 44.1 mm
