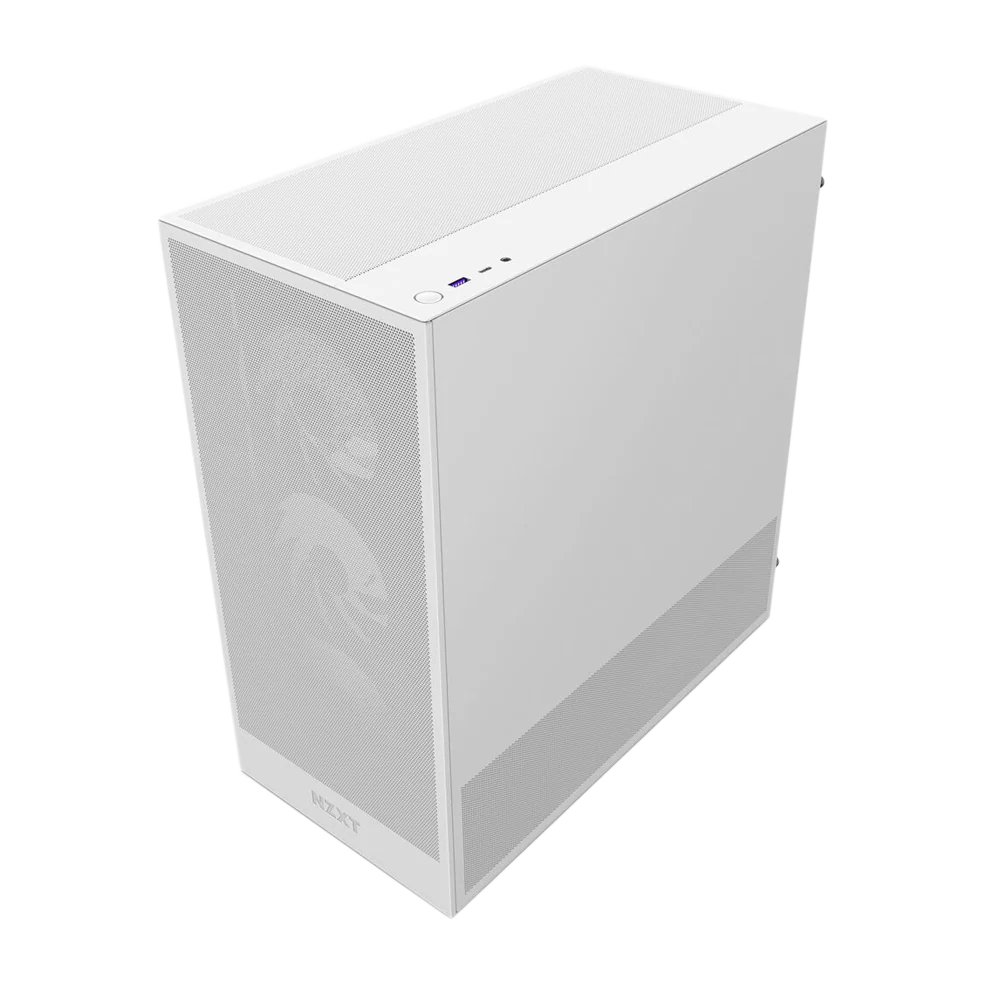

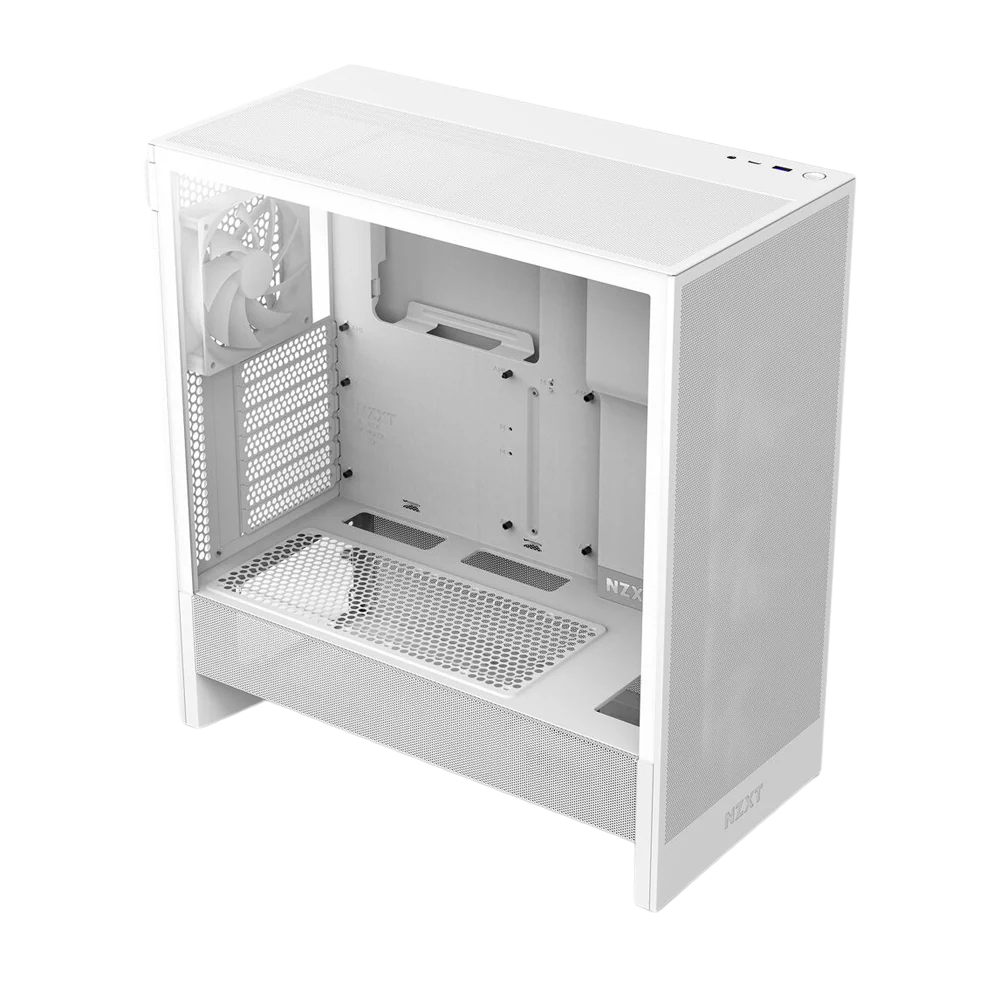

NZXT H5 Flow RGB (2024) Compact Mid-Tower ATX Case With RGB Fans - White

The H5 Flow RGB boosts airflow and GPU cooling with its perforated PSU shroud, mesh panels, and large radiator support—all in a compact mid-tower form factor.

• The PSU shroud is perforated on the side and bottom, enabling optimal air intake from two 120mm fans (not included).
• Supports up to a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling potential.
• Ultra-fine mesh on the top, front, and side panels creates maximum airflow and filters dust.

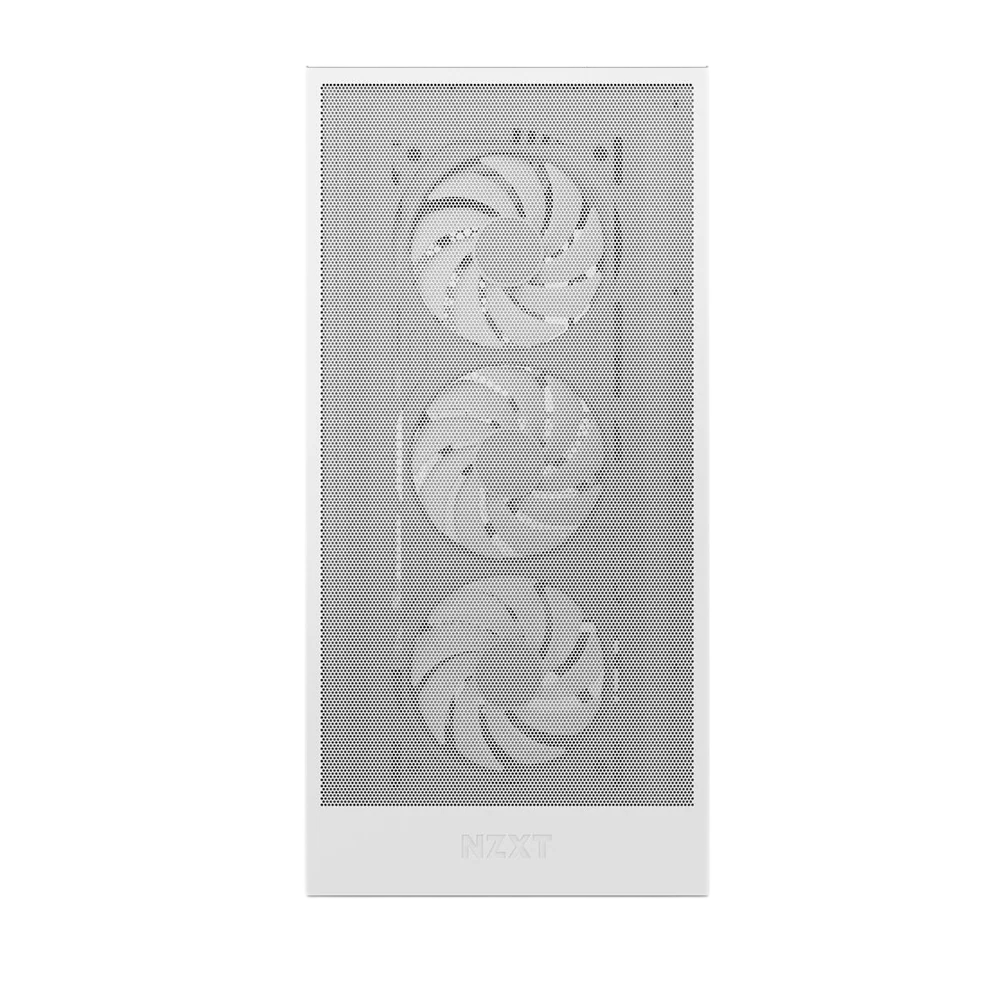

• Equipped with a front-mounted F360 RGB Core (CV) single-frame fan and rear-mounted F120Q (CV) fan for strong out-of-the-box cooling and lighting.
• Effortlessly route and conceal cables using the wide channels, hooks, and straps.

H5 Flow RGB

Compact ATX mid-tower chassis with high airflow, optimal GPU cooling, and large radiator support.

More Air to the GPU

Mesh PSU shroud maximizes air intake from two 120mm bottom-mounted fans (not included).

Fits Large Radiators

Supports a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling setups.

Optimized for Airflow

Ultra-fine mesh panels facilitate exceptional airflow and help filter pesky dust particles.

Pre-Installed Fans*

Front-mounted F360 RGB Core fan and rear F120Q fan for out-of-the-box cooling and lighting.

Easy Cable Management

Effortlessly route and conceal cables using the wide channels, hooks, and straps.

Tool-less Access

Easily open up the front, side, and top panels without any tools.

Strong and Sleek

Crafted from thick steel and tempered glass for long-lasting quality.

Specifications

Key Specs

• Motherboard Support: E-ATX (Up to 277 mm wide), ATX, Micro-ATX, Mini-ITX
• Enclosure Type : Mid-Tower
• Case Material : SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black)

Dimensions

• Height (With Feet) : 465 mm (18.31 in)
• Width : 225 mm (8.86 in)
• Depth : 430 mm (16.93 in)
• Weight : 7.63 kg (16.82 lb)

Compatibility & Clearance

• CPU Cooler Height : Up to 185mm
• GPU Length : Up to 410 mm
• PSU Length : Up to 200 mm
• Cable Management : Up to 34.5 mm
• Top Mounted Radiator & Fan Combined Thickness : Up to 57 mm (140mm / 280mm)

Front I/O Ports

• USB 3.2 Gen 1 Type-A : 2
• USB 3.2 Gen 2x2 Type-C (20 Gbps) : 1
• Headset Audio Jack : 1

Expansion Slots

• Standard : 7
• Vertical : 0

Dimensions

• Height (with feet) : 465 mm / 18.31 in
• Width : 225 mm / 8.86 in
• Depth : 430 mm / 16.93 in
• Weight : 7.63 kg / 16.82 lb

Compatibility & Clearance

• CPU Cooler Height : Up to 170 mm
• GPU Length : Up to 410 mm
• PSU Length : Up to 200 mm
• Cable Management : Up to 28.7 mm
• Top Radiator : Up to 240 mm (280 mm with low-profile memory)
• Top Mounted Radiator + Fan Thickness : Up to 55 mm

Front Ports

• USB 3.2 Type-A : 1
• USB 3.2 Gen 2x2 Type-C (20 Gbps) : 1
• Headset Audio Jack : 1

Expansion Slots

• Standard : 7
• Vertical : 0

Drive Bays

• 2.5" : 2
• 3.5" : 1

Fan Support

• Front : 3 x 120 mm / 2 x 140 mm (1 x F360 RGB Core Case Version included)
• Top : 2 x 120 mm / 2 x 140 mm
• Bottom : 2 x 120 mm
• Rear : 1 x 120 mm (1 x F120Q Case Version included)

Radiator Support

• Front : Up to 360 mm
• Top : Up to 240 mm (280 mm with low-profile memory only)
• Fan Specs - F360 RGB Core (Case Version)
• Model : F360 RGB Core (Case Version)
• Speed : 1,700 ± 200 RPM
• Airflow : 50.1 CFM
• Static : 1.27 mm-H₂O
• Noise : 23.3 dBA
• Fan Connector : 3-pin DC
