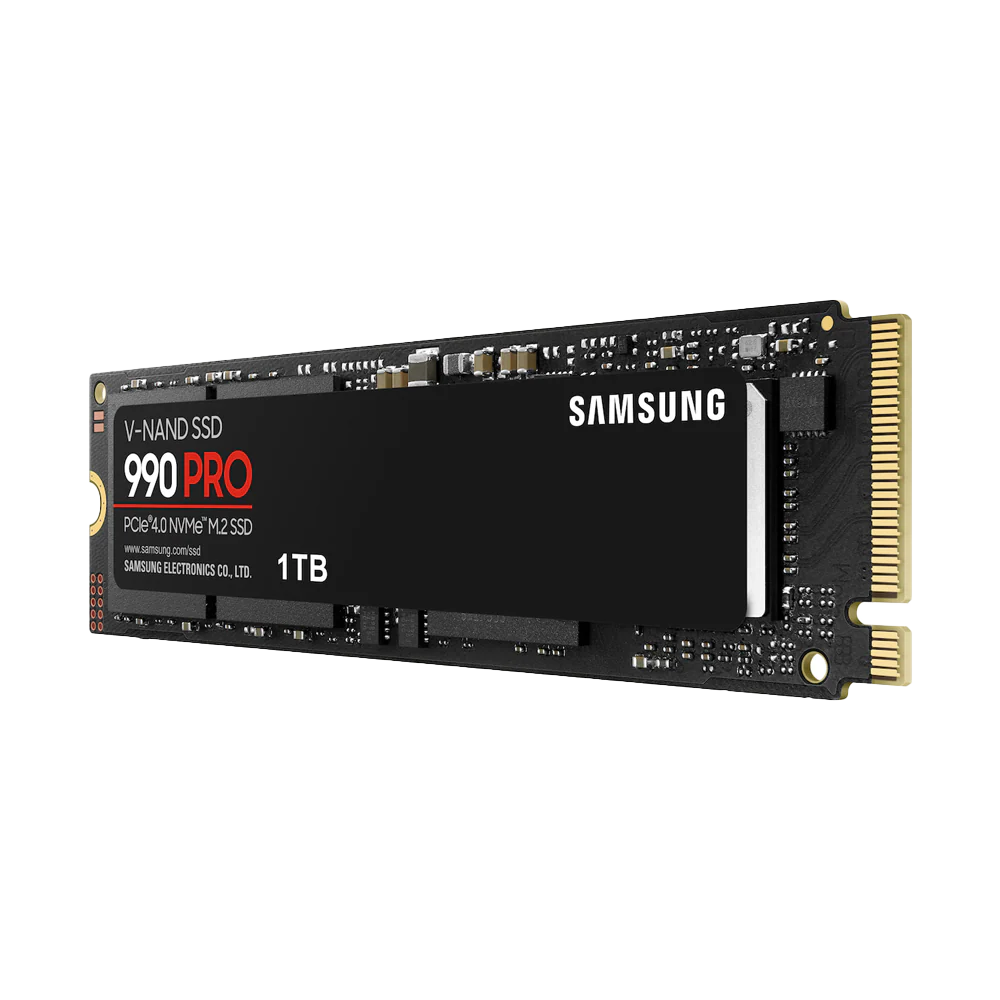

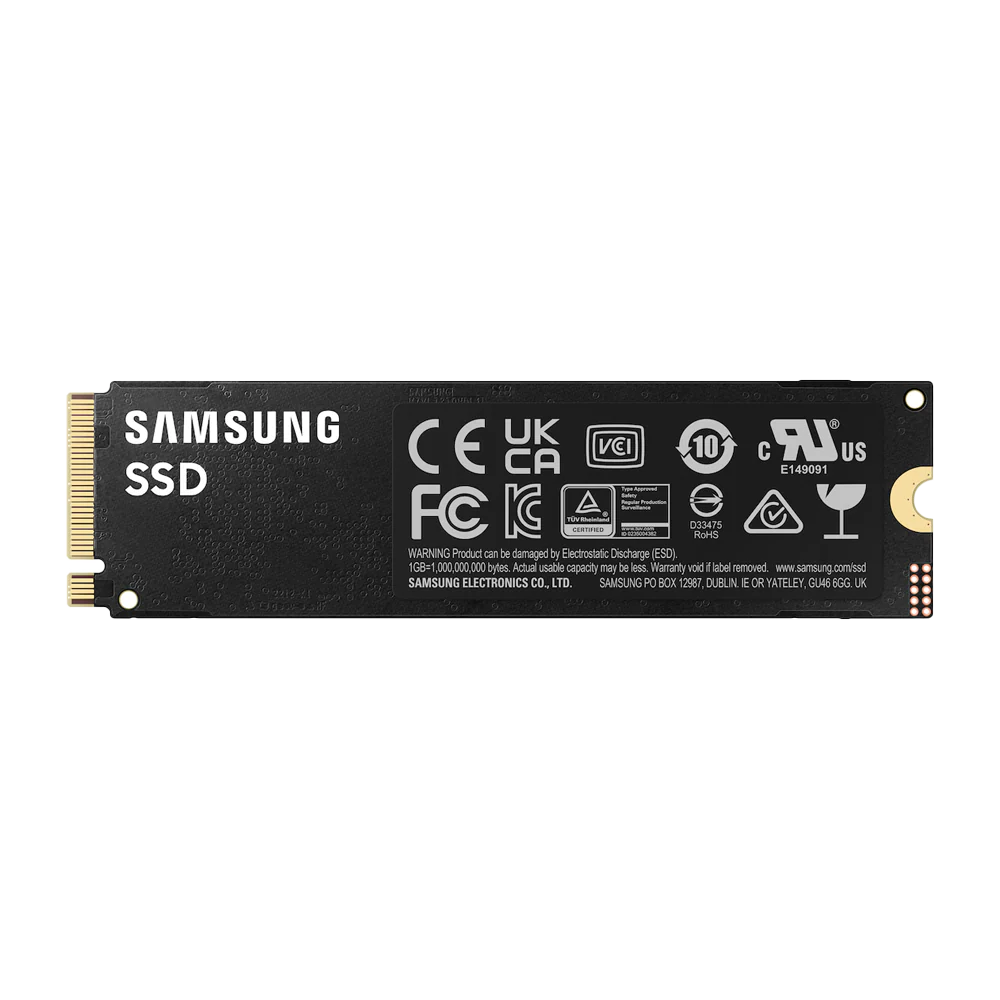

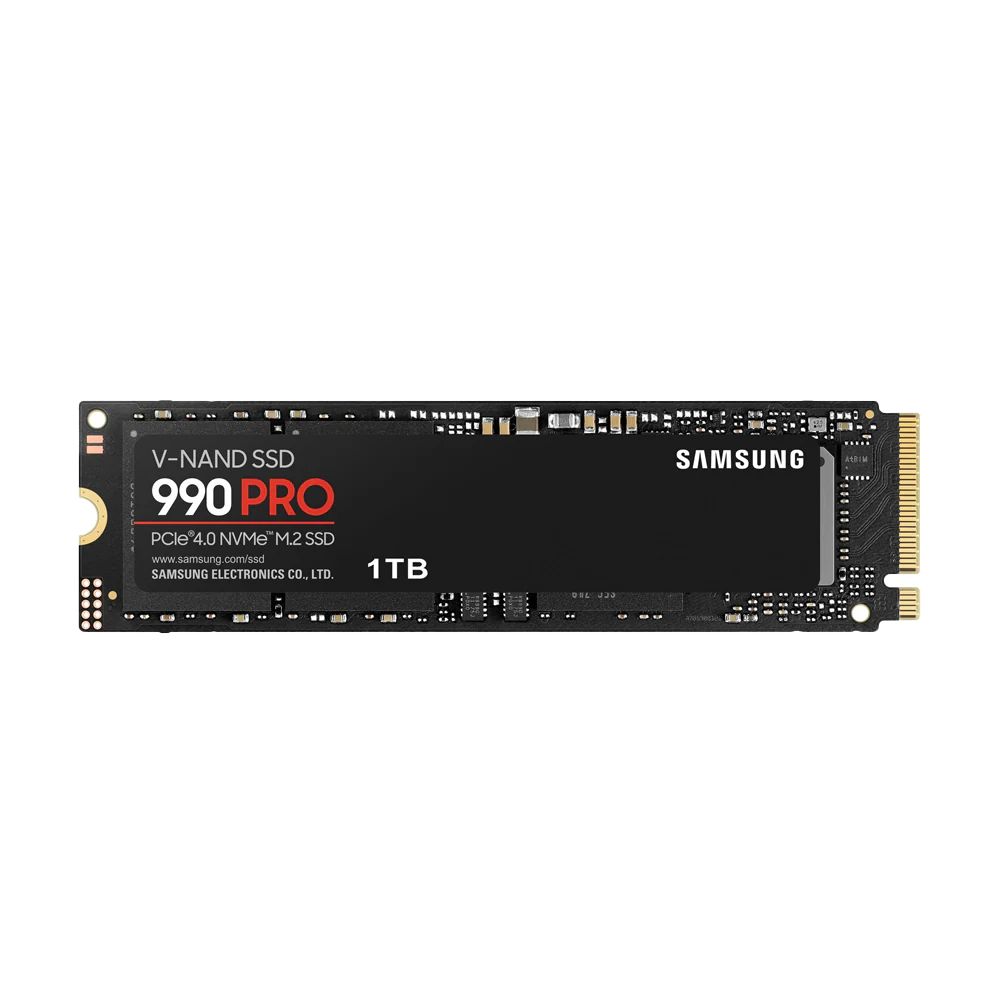

SAMSUNG 990 PRO M.2 2280 PCIe GEN4X4 NVMe SSD (R:7,450 MB/s W:6,900 MB/s) - 1TB

The Ultimate SSD
Reach max performance of PCIe® 4.0*. Experience longer-lasting, opponent-blasting speed. The in-house controller's smart heat control delivers supreme power efficiency while maintaining ferocious speed and performance, to always keep you at the top of your game.

PCIe 4.0 Speed Maximised
Huge speed boost. 990 PRO offers sequential* read/write speeds up to 7,450/6,900 MB/s reaching near the max performance of PCIe® 4.0. 40% and 55% faster random read/write speeds than 980 PRO 2TB - up to 1,400K/1,550K IOPS, while 4TB has an even higher random read speed of up to 1,600K IOPS.

Breakthrough power efficiency
More power-efficient performance. Higher performance usually consumes more power but, 990 PRO uses less power with up to 50% improved performance per Watt over 980 PRO*. This low-power design makes max PCIe® 4.0 performance possible with optimal power efficiency.

Smart thermal solution
Speed beyond the heat. The nickel-coated controller and cutting-edge thermal control algorithm manage heat for unwavering performance. The heat spreader label controls NAND chip heat, while Dynamic Thermal Guard keeps temperatures optimal.

The champion maker
The best gameplay experience. A more than 55% improvement in random performance enables faster loads for ultimate gaming realism on PS5 and DirectStorage PC games.

Game like a pro
Secure victory with 990 PRO's expanded 4TB capacity, empowering you with a random read speed of up to 1,600,000 IOPS. Witness faster loading times on your PC and PlayStation® 5, as it breathes life into your games.

Samsung Magician Software
Unlock the full power of 990 PRO. Samsung Magician software's user-friendly suite of optimisation tools always gets you the best SSD performance. Protect data, get updates, monitor drive health, and set up LED* colour combinations. Your personal SSD toolkit.

World’s No.1 Flash Memory
Experience superior performance and reliability you only get from the world's No.1 flash memory brand since 2003*. All components and firmware are produced in-house, including Samsung's world-renowned DRAM and NAND, for integrated start-to-finish quality you can trust.

Specifications

• Interface : PCIe Gen 4.0 x4, NVMe 2.0

• Sequential Read : Up to 7,450 MB/s * Performance may vary based on system hardware & configuration

• Sequential Write : Up to 6,900 MB/s * Performance may vary based on system hardware & configuration

• Application : Client PCs, Game Consoles

• Weight : Max 9.0g Weight

• Dimension (Pack: WxHxD) : 80 x 22 x 2.3 mm

• General Feature

• Application : Client PCs, Game Consoles

• Rated Capacity : 1,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)

• Form Factor : M.2 (2280)

• Interface : PCIe Gen 4.0 x4, NVMe 2.0

• Dimension (Pack: WxHxD) : 80 x 22 x 2.3 mm

• Weight : Max 9.0g Weight

• Storage Memory : Samsung V-NAND 3-bit MLC

• Controller : Samsung in-house Controller

• Cache Memory : Samsung 1GB Low Power DDR4 SDRAM

• Special Feature

• TRIM Support

• Supported

• S.M.A.R.T Support

• Supported

• GC (Garbage Collection)

• Auto Garbage Collection Algorithm

• Encryption Support

• AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)

• WWN Support

• Not supported

• Device Sleep Mode Support : Yes

• Performance

• Sequential Read : Up to 7,450 MB/s * Performance may vary based on system hardware & configuration

• Sequential Write : Up to 6,900 MB/s * Performance may vary based on system hardware & configuration

• Random Read (4KB, QD32) : Up to 1,200,000 IOPS * Performance may vary based on system hardware & configuration

• Random Write (4KB, QD32) : Up to 1,550,000 IOPS * Performance may vary based on system hardware & configuration

• Random Read (4KB, QD1) : Up to 22,000 IOPS * Performance may vary based on system hardware & configuration

• Random Write (4KB, QD1) : Up to 80,000 IOPS * Performance may vary based on system hardware & configuration

• Environment : Average Power Consumption (system level)

• *Average: 5.4 W*Maximum: 7.8 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration

• Power consumption (Idle) : Max. 50 mW * Actual power consumption may vary depending on system hardware & configuration

• Allowable Voltage : 3.3 V ± 5 % Allowable voltage

• Reliability (MTBF) : 1.5 Million Hours Reliability (MTBF)

• Operating Temperature : 0 - 70 ℃ Operating Temperature

• Shock : 1,500 G & 0.5 ms (Half sine)

• Accessories

• Installation Kit : Not Available

• Software

• Management SW : Magician Software for SSD management
