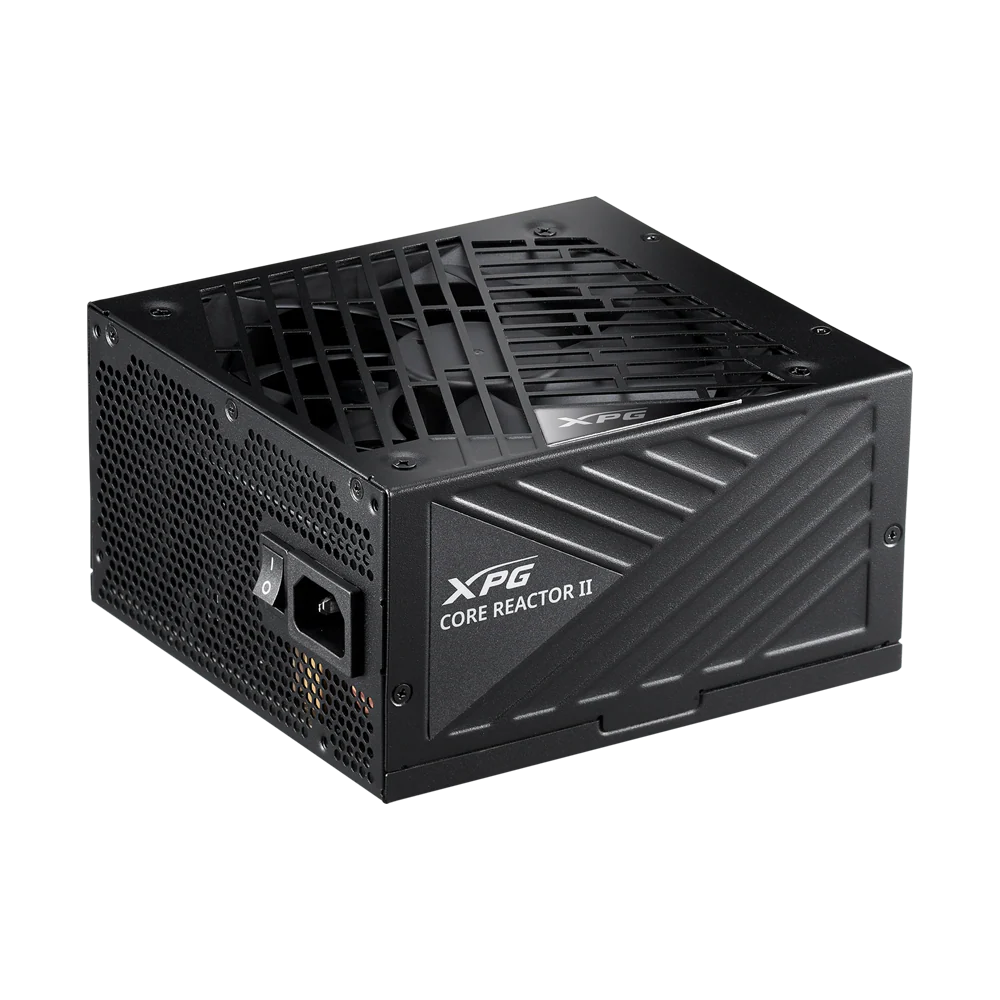

XPG CORE REACTOR II 750W ATX 3.0 - 80 Plus Gold Full Modular Power Supply - Black

Key Features:

• GOLD certified by both 80 PLUS and Cybenetics.
• built with Premium Grade 100% Japanese
• Compliant with a 12VHPWR (12+4) Connector.
• Compliant with Intel ATX 3.0 and PCIe 5.0.

Next-Gen Ready - ATX 3.0 Compliant with 12VHPWR for PCIe 5.0 Applications

The XPG CORE REACTOR II GOLD power supply meets or surpasses all the latest Intel ATX 3.0 specification guidelines. It was specifically designed for high-end graphics cards and systems with large power consumption needs, while also offering quick and convenient full-modular cable management. As such, it includes a 12VHPWR (12+4 Pin) connector and cable right out of the box for PCIe 5.0 applications, offering reliability and compatibility with the latest and upcoming components.

Powerful Design & Premium Efficiency

The XPG CORE REACTOR II GOLD power supply series offers highly efficient power conversion. These units score on the higher side of 80 PLUS Gold efficiency ratings, nearly reaching Platinum performance levels; delivering an outstanding efficiency performance of up to 89% at 20% load, 90.91% at 50% load, and 88% at 100% operating load. The CORE REACTOR II is an ideal choice for users who require both Gold efficiency and a well-designed fan curve. It’s capable of supporting mid to high-end graphics cards and the latest processors. Depending on the wattage level you need, CORE REACTOR II comes in a variety of dimensions, available in both black and white. With five wattage options (650W, 750W, 850W, 1000W, 1200W), there is a perfect unit for every system.

Comprehensive Protection and 10-Year Warranty Service

The XPG CORE REACTOR II GOLD series is covered by eight comprehensive industrial-grade protections (OPP, UVP, OVP, SCP, OTP, OCP, NLO, and SIP), and offer, so users can have peace of mind for years to come.

ATX 3.0 PSU Family - Shaping the Future

ATX 3.0 presents a fundamental shift in the PSU market. With the addition of CORE REACTOR II, XPG aims to lead this space as already shown earlier this year with the release of multiple award winning power supply units such as the best full-digital Titanium platform, XPG FUSION,  as well as CYBERCORE II Platinum and KYBER Gold models, covering a wide range of needs for users of every type.

Specifications

• Type : Intel ATX 12V v3.0
• Maximum Power : 750 W

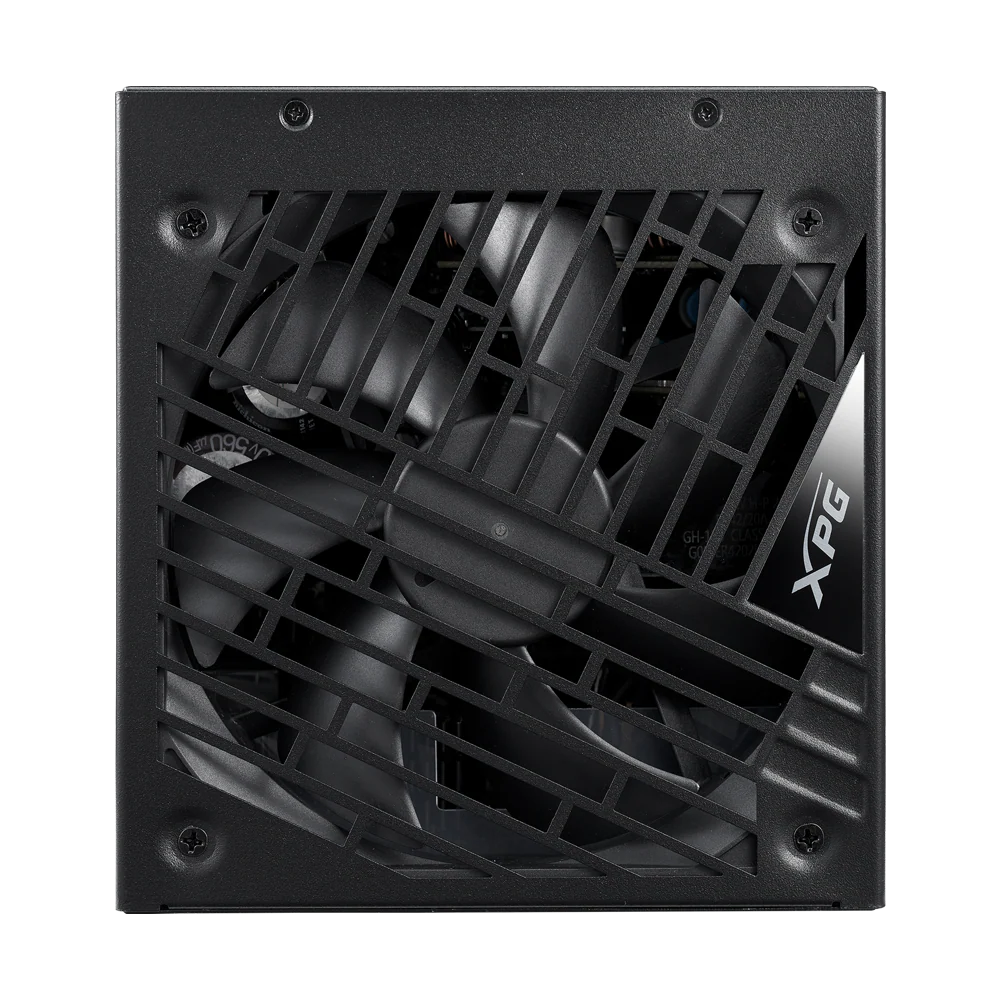

• Fans : 1 x 120 mm
• PFC : 0.99
• Main Connector : 20+4Pin
• +12V Rails : Single

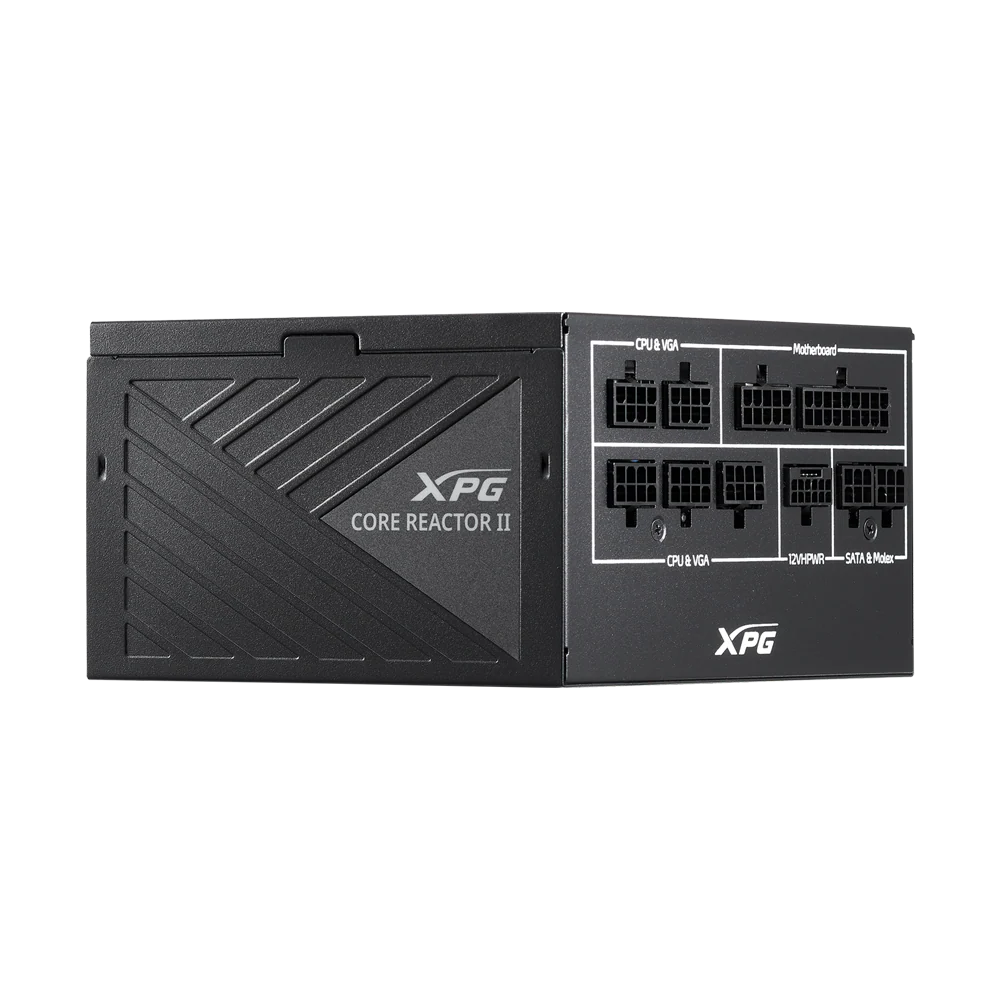

• PCI-Express Connector : 1 x 12VHPWR 12+4Pin, 4 x PCI-E 6+2 to 6+2 Pin, 2 x PCI-E 6+2 Pin
• SATA Power Connector : 8
• Max PSU Length : 150 mm
• Modular : Full Modular
• Energy-Efficient : 80 PLUS GOLD Certified
• Over Voltage Protection : Yes
• Input Voltage : 100 - 240 V
• Input Frequency Range : 47 - 63 Hz
• Input Current : 10A
• Output : +3.3V@22A,+5V@22A, [email protected], [email protected], +5VSB@3A
• MTBF : 100,000 hours @ 25°C
• Approvals : CE | CB| FCC(IC) | TUV | cTUVus | TUV S-Mark | NOM | BSMI | UKCA |EAC | CCC | RCM
• Features : CORE REACTOR II series power supply units meet Intel ATX 3.0 design guide specifications and feature a 12VHPWR connector. By upgrading to an ATX 3.0 compliant power supply, you'll be fully equipped for the upcoming wave of new high-performance components. A must for the modern gamer, creator, or AI developer. Stay ahead of the curve by upgrading to an ATX 3.0 PSU, the new standard in PC hardware.
• Dimension & Weight
• Dimensions : 140 x 150 x 85mm
• Weight : 1.59kg
