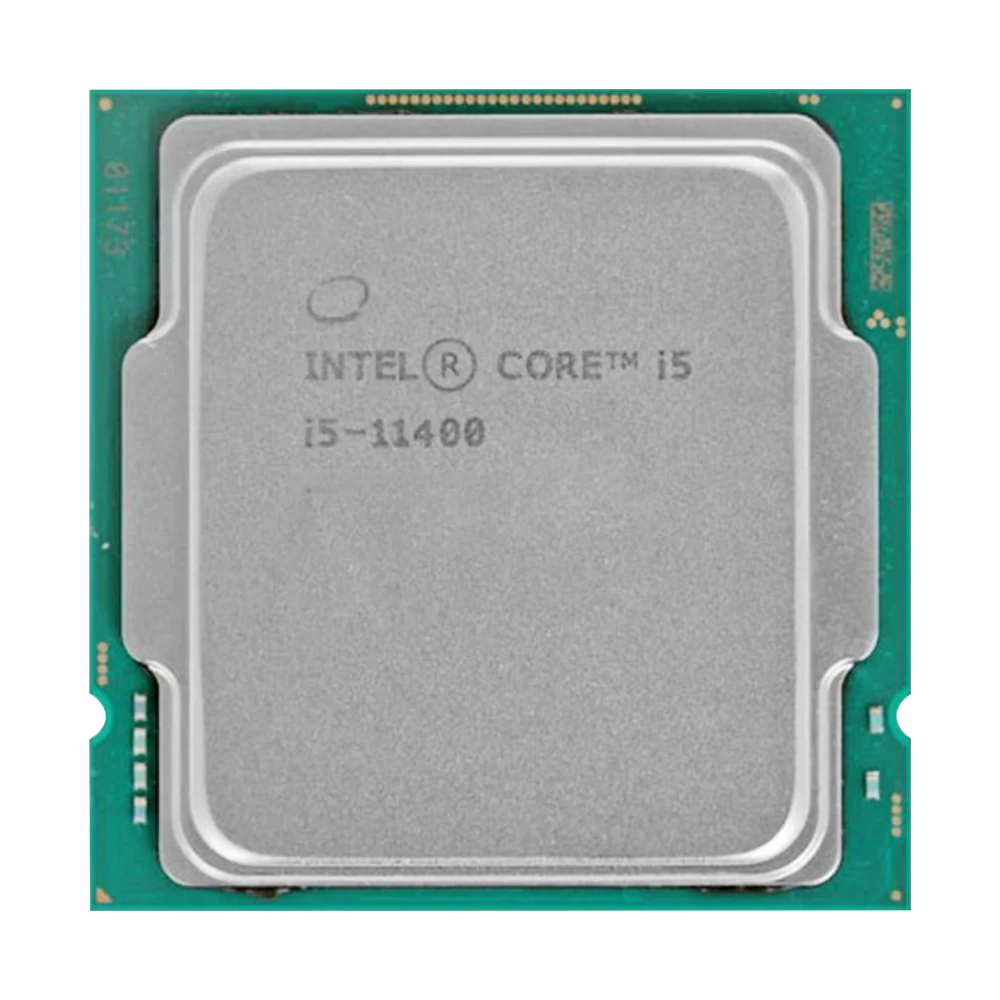

Intel Core i5-11400 6-Core LGA 1200 11th Gen Processor - OEM

Intel Core i5-11400 6-Core LGA 1200 11th Gen Processor - OEM

Power up your productivity, gaming, and content creation experiences by installing the Intel Core i5-11400 2.6 GHz Six-Core LGA 1200 Processor into your computer system. Built using a 14nm process, this 11th generation desktop processor features a base clock frequency of 2.6 GHz and a 4.4 GHz turbo frequency with 12MB of cache, six cores, and twelve threads for fast and reliable performance. The Core i5-11400 also includes support for PCI Express 4.0 and dual-channel DDR4 memory at 3200 MHz to help run and multitask a variety of demanding applications and games using technologies such as built-in AI acceleration. Performance can be further enhanced by installing Intel Optane memory to cache frequently accessed data.

The Core i5-11400 features integrated Intel UHD 730 Graphics driven by the powerful Xe architecture. A thermal solution is included to help maintain optimal temperatures and the processor is backed by a 3-year warranty.

PCIe 4.0

This processor supports up to 20 PCIe 4.0 lanes, delivering exceptional data throughput with compatible devices.

AI Acceleration

Intel Deep Learning Boost (VNNI) technologies help to enhance the performance of deep learning workloads.

Thunderbolt 4 & USB4

With Thunderbolt 4 technology, this processor supports data transfer speeds of up to 40 Gb/s with compatible devices and you can connect up to two 4K monitors simultaneously. USB4 technology supports a 20 Gb/s throughput with compatible devices and up to one 4K monitor.

Intel Iris Xe Graphics

The integrated graphics deliver fast, rich 3D performance for high-quality visuals.

Specifications

• Product Collection : 11th Generation Intel® Core i5 Processors

• Code Name : Products formerly Rocket Lake

• Vertical Segment : Desktop

• Processor Number : i5-11400

• Lithography : 14 nm

• Use Conditions : PC/Client/Tablet

CPU Specifications :

• Total Cores : 6

• Total Threads : 12

• Max Turbo Frequency : 4.40 GHz

• Intel ® Turbo Boost Technology 2.0 Frequency : 4.40 GHz

• Processor Base Frequency : 2.60 GHz

• Cache : 12 MB Intel ® Smart Cache

• Bus Speed : 8 GT/s

• TDP : 65 W

Supplemental Information

• Embedded Options Available : No

• Datasheet : View now

Memory Specifications

• Max Memory Size (dependent on memory type) : 128 GB

• Memory Types : DDR4-3200

• Max # of Memory Channels : 2

• Max Memory Bandwidth : 50 GB/s

• ECC Memory Supported  : No

Processor Graphics

• Processor Graphics  : Intel® UHD Graphics 730

• Graphics Base Frequency : 350 MHz

• Graphics Max Dynamic Frequency : 1.30 GHz

• Graphics Video Max Memorym : 64 GB

• Execution Units : 24

• 4K Support : Yes, at 60Hz

• Max Resolution (HDMI) : 4096x2160@60Hz

• Max Resolution (DP) : 5120 x 3200 @60Hz

• Max Resolution (eDP - Integrated Flat Panel) : 5120 x 3200 @60Hz

• DirectX* Support : 12.1

• OpenGL* Support : 4.5

• OpenCL* Support : 3.0

• Intel ® Quick Sync Video : Yes

• Intel ® InTruâ„¢ 3D Technology : Yes

• Intel ® Clear Video HD Technology : Yes

• Intel ® Clear Video Technology : Yes

• # of Displays Supported : 3

• Device ID : 0x4C8B

Expansion Options

• Scalability : 1S Only

• PCI Express Revision : 4.0

• PCI Express Configurations : Up to 1x16+1x4, 2x8+1x4, 1x8+3x4

• Max # of PCI Express Lanes : 20

Package Specifications

• Sockets Supported : FCLGA1200

• Max CPU Configuration : 1

• Thermal Solution Specification  : PCG 2019C

• TJUNCTION : 100 °C

• Package Size : 37.5 mm x 37.5 mm

Advanced Technologies

• Intel® Gaussian & Neural Accelerator : 2.0

• Intel® Deep Learning Boost (Intel® DL Boost) : Yes

• Intel® Optane Memory Supported  : Yes

• Intel® Thermal Velocity Boost : No

• Intel® Turbo Boost Max Technology 3.0 : No

• Intel® Turbo Boost Technology : 2.0

• Intel® Hyper-Threading Technology : Yes

• Intel® 64  : Yes

• Instruction Set : 64-bit

Instruction Set Extensions

• Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2, Intel® AVX-512

• Idle States : Yes

• Enhanced Intel SpeedStep® Technology : Yes

• Thermal Monitoring Technologies : Yes

• Intel® Identity Protection Technology : Yes

Security & Reliability

• Intel vPro® Platform Eligibility  : No

• Intel® AES New Instructions : Yes

• Secure Key : Yes

• Intel® Software Guard Extensions (Intel® SGX) : No

• Intel® OS Guard : Yes

• Intel® Trusted Execution Technology  : No

• Execute Disable Bit  : Yes

• Intel® Boot Guard : Yes

• Intel® Stable IT Platform Program (SIPP) : No

• Intel® Virtualization Technology (VT-x) : Yes

• Intel® Virtualization Technology for Directed I/O (VT-d) : Yes

• Intel® VT-x with Extended Page Tables (EPT) : Yes
