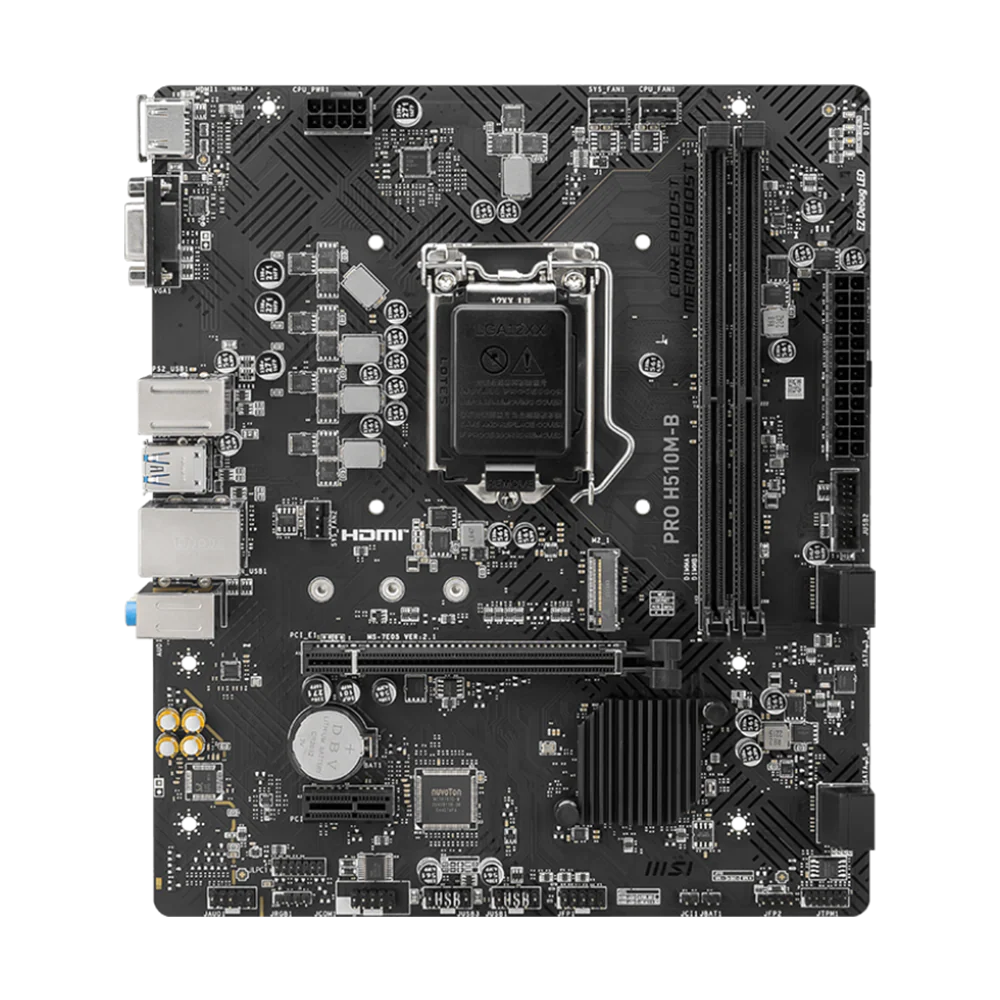

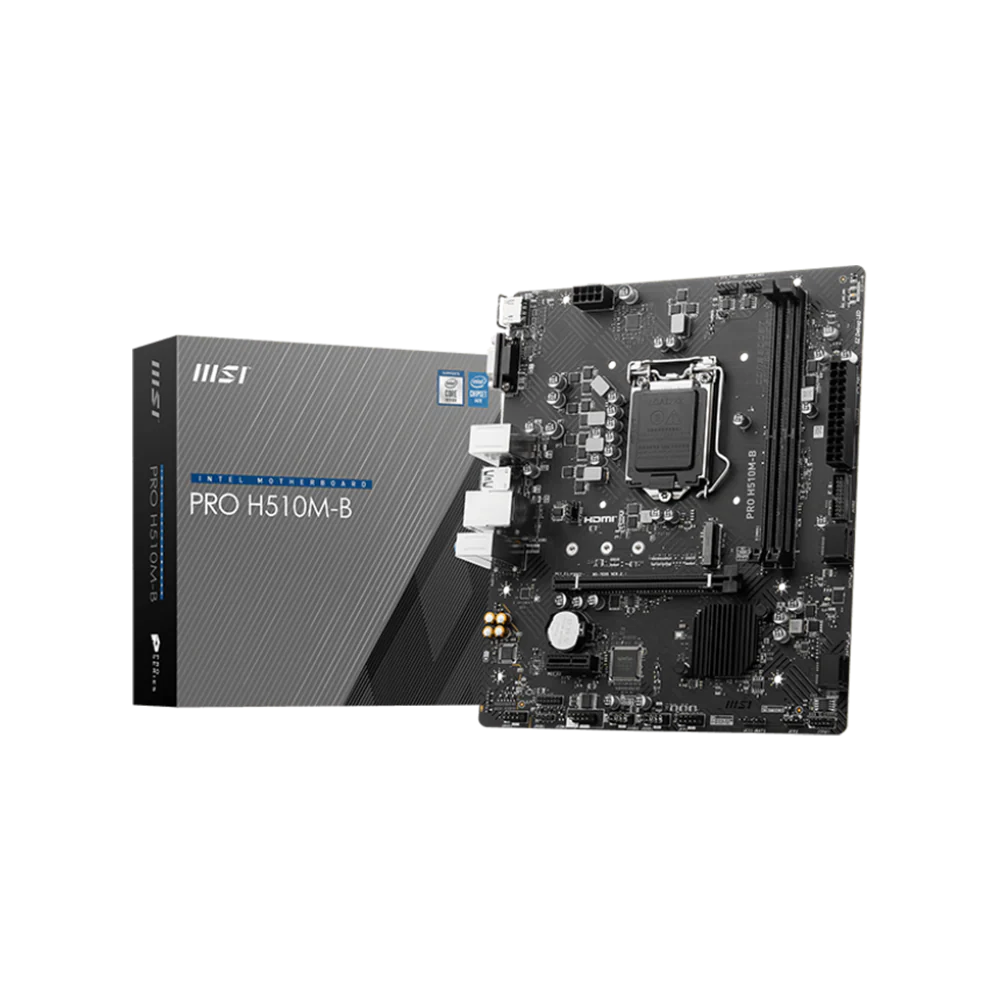

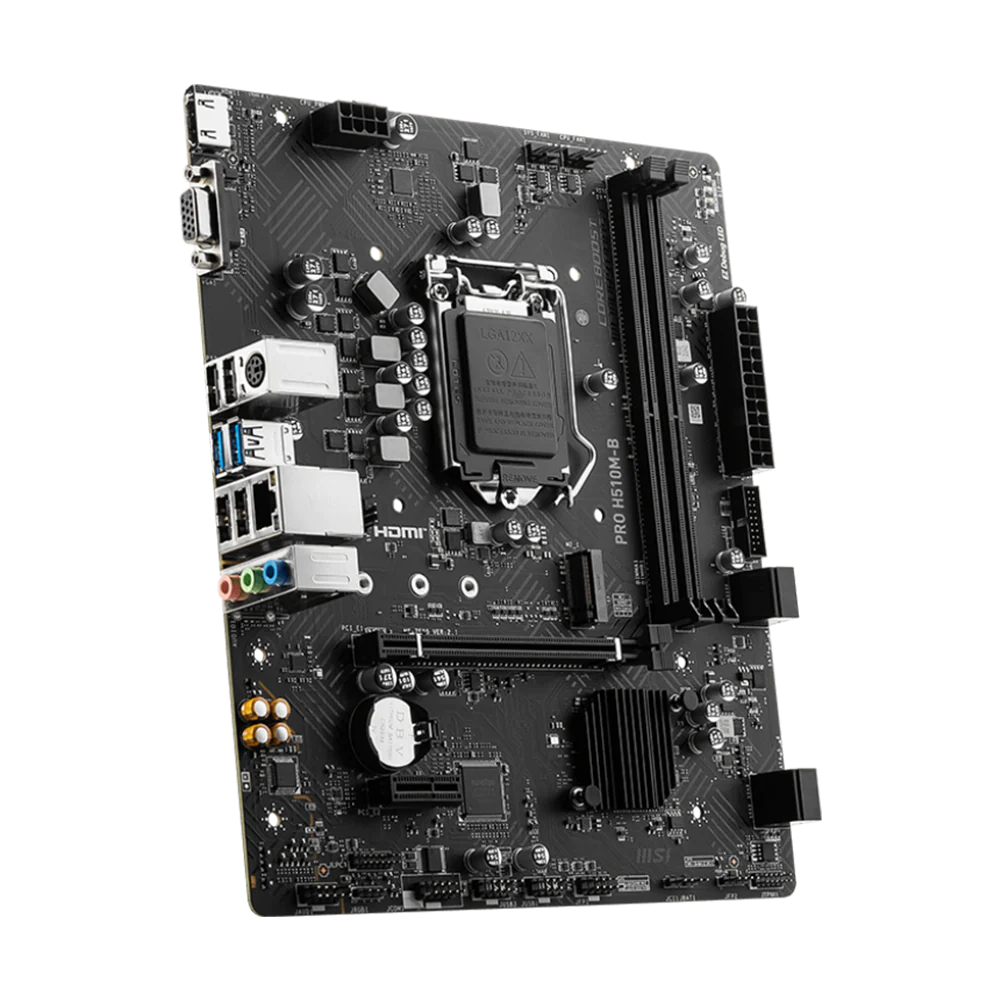

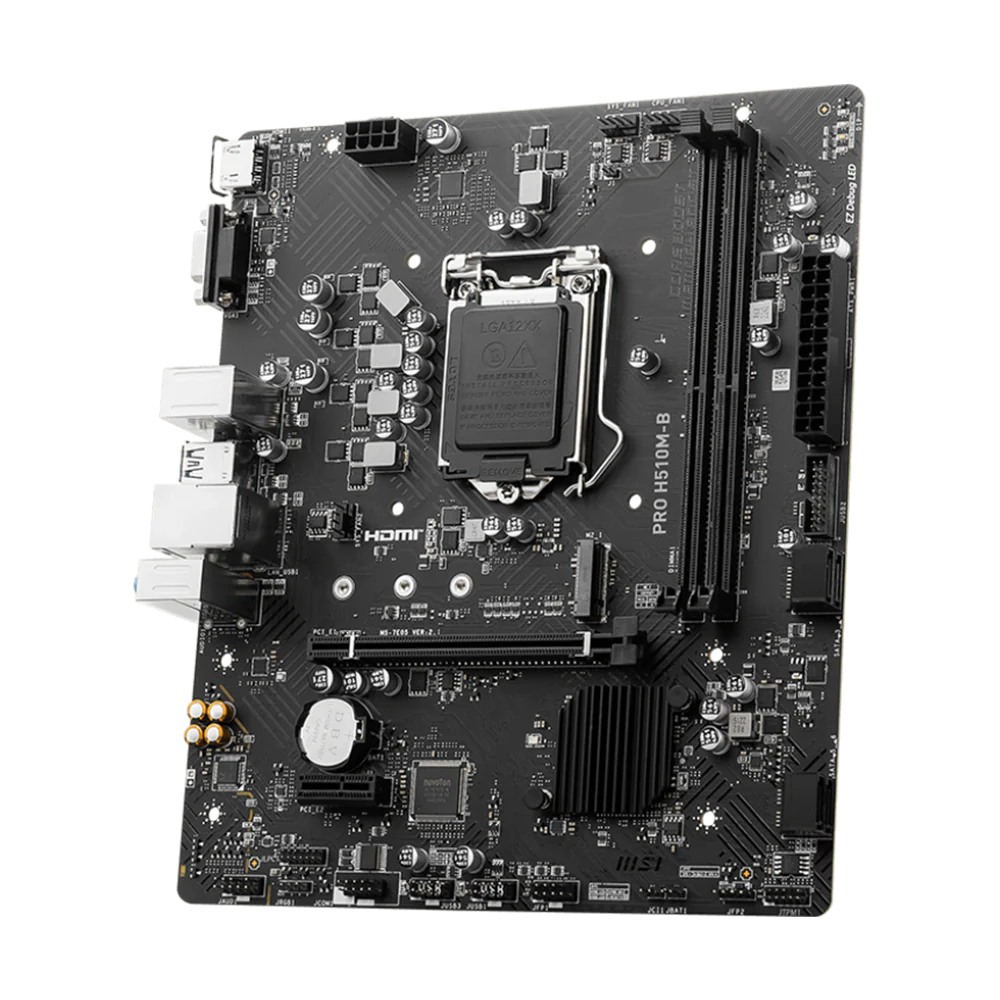

MSI Intel PRO H510M-B II DDR4 MotherBoard

Key Features:

• Supports 10th Gen Intel^® Core™, Pentium^® Gold and Celeron^® processors for LGA 1200 socket
• Supports DDR4 Memory, up to 2933MHz (MAX)
• Core Boost : With premium layout and digital power design to support more cores and provide better performance
• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
• Audio Boost: Reward your ears with studio grade sound quality
• Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

MSI Intel PRO H510M-B II DDR4 MotherBoard

Specifications

• Chipset : INTEL H470
• CPU : Supports 10th Gen Intel Core and Pentium Gold/Celeron processors for LGA 1200 Socket
• Memory : 2x DDR4, Maximum Memory Capacity 64GB
• Memory Support 2933/ 2666/ 2400/ 2133 MHz
• Supports 1R 2133/ 2666/ 2933 MHz for Intel® Core™ i9/ Core™ i7 CPU
• Supports 1R 2133/ 2666 MHz for Intel® Core™ i5/ Core™ i3/ Pentium® Gold and Celeron® CPU
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)
• Onboard Graphics : 1x HDMI™
• Support HDMI™ 1.4, maximum resolution of 4K 30Hz*
• 1x VGA
• Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz
• *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
• Slot : 1x PCI-E x16 slot
• 1x PCI-E x1 slot
• PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU)
• PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
• Audio : Realtek® ALC897 Codec
• 7.1-Channel High Definition Audio
• Storage : 1x M.2
• M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices
• 4x SATA 6G
• USB : 4x USB 2.0 (Rear)
• 4x USB 2.0 (Front)
• 2x USB 5Gbps Type A (Rear)
• 2x USB 5Gbps Type A (Front)
• LAN : Realtek® 8111H Gigabit LAN
• Internal IO : 1x Power Connector(ATX_PWR)
• 1x Power Connector(CPU_PWR)
• 1x CPU Fan
• 2x System Fan
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 1x Com Port (JCOM)
• 1x RGB LED connector(JRGB)
• 1x TPM pin header(Support TPM 2.0)
• 4x USB 2.0 ports
• 4x USB 5Gbps Type A ports
• LED FEATURE 4x EZ Debug LED
• BACK PANEL PORTS
• HDMI™
• VGA
• Keyboard / Mouse
• USB 5Gbps Type-A
• LAN port
• Audio Connectors
• USB 2.0
• USB 2.0
• OPERATING SYSTEM : Support for Windows® 11 64-bit, Windows® 10 64-bit
• BOX CONTENT

PCB Info : mATX

• 202mmx236mm
